10.29mm GL ASME Seamless Stainless Steel Tubing ABS DNV LR BV ASTM A312
10.29mm GL ASME Seamless Stainless Steel Tubing ABS DNV LR BV ASTM A312
Specifications
Brand Name :
YUHAO
Model Number :
Seamless Pipes
Certification :
ISO PED CE TUV
Place of Origin :
CHINA
MOQ :
100KGS
Price :
NEGOTIATION
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000TONS/PER MONTH
Delivery Time :
15-40DAYS
Packaging Details :
PACKAGED IN SEA-WORTH BUNDLES,PACKAGED IN PLYWOOD CASES
Steel grade :
304, 316, 321, 310S, Duplex
Corrosion Resistance :
High-Temperature Oxidation Resistance, Seawater Resistance
Standard :
AISI, ASTM, DIN, EN, GB
OD :
1/8" NB TO 32" NB , (10.29MM-812.80MM)
WT :
SCH 10S, SCH 40S, SCH 80S, SCH160, 0.5 mm to 50 mm
Length :
0.5M-15M OR AS REQUESTED
Applications :
Mining, Shipbuilding, Construction, Pulp & Paper, Food, Medical Technology, Environmental Protection
Performance Testing :
Non-Destructive Testing, Pressure Testing, Mechanical Properties Testing
Package :
PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED
Description

ASTM A312 TP316L Stainless Steel Seamless Pipe ABS DNV LR BV GL ASME

►Products Information

Stainless steel seamless pipes are high-performance, corrosion-resistant tubes widely used in industries such as oil and gas, chemical processing, and power generation. Manufactured through a precise extrusion or piercing process, these pipes lack welded seams, ensuring superior strength and durability. Their smooth internal surface minimizes friction, enhancing fluid flow efficiency. Available in various grades like 304, 316, and 321, they offer excellent resistance to high temperatures, pressure, and corrosive environments. Ideal for critical applications, stainless steel seamless pipes are valued for their reliability, longevity, and ability to maintain structural integrity under extreme conditions. They are a preferred choice for demanding industrial and commercial projects.

►Product Size

STAINLESS STEEL (ASTM/ANSI)
B O.D SCH 5S SCH 10S SCH 10 SCH 20S SCH 40S SCH 40 STD SCH 80S SCH 80
1/8" 10.29 - 1.24 1.24 - 1.73 1.73 1.73 2.41 2.41
1/4" 13.72 - 1.65 1.65 - 2.24 2.24 2.24 3.02 3.02
3/8" 17.15 - 1.65 1.65 - 2.31 2.31 2.31 3.2 3.2
1/2" 21.34 1.65 2.11 2.11 - 2.77 2.77 2.77 3.73 3.73
3/4" 26.67 1.65 2.11 2.11 - 2.87 2.87 2.87 3.91 3.91
1" 33.4 1.65 2.77 2.77 - 3.38 3.38 3.38 4.55 4.55
1 1/4" 42.16 1.65 2.77 2.77 - 3.56 3.56 3.56 4.85 4.85
1 1/2" 48.26 1.65 2.77 2.77 - 3.68 3.68 3.68 5.08 5.08
2" 60.33 1.65 2.77 2.77 - 3.91 3.91 3.91 5.54 5.54
2 1/2" 73.03 2.11 3.05 3.05 - 5.16 5.16 5.16 7.01 7.01
3" 88.9 2.11 3.05 3.05 - 5.49 5.49 5.49 7.62 7.62
3 1/2" 101.6 2.11 3.05 3.05 - 5.74 5.74 5.74 8.08 8.08
4" 114.3 2.11 3.05 3.05 - 6.02 6.02 6.02 8.56 8.56
5" 141.3 2.77 3.4 3.4 - 6.55 6.55 6.55 9.53 9.53
6" 168.28 2.77 3.4 3.4 - 7.11 7.11 7.11 10.97 10.97
8" 219.08 2.77 3.76 3.76 6.35 8.18 8.18 8.18 12.7 12.7
10" 273.05 3.4 4.19 4.19 6.35 9.27 9.27 9.27 12.7 15.09
12" 323.85 3.96 4.57 4.57 6.35 9.52 10.31 9.52 12.7 17.48
14" 355.6 3.96 4.78 6.35 7.92 - 11.13 9.52 - 19.05
16" 406.4 4.19 4.78 6.35 7.92 - 12.7 9.52 - 21.44
18" 457.2 4.19 4.78 6.35 7.92 - 14.27 9.52 - 23.83
20" 508 4.78 5.54 6.35 9.52 - 15.09 9.52 - 26.19
22" 558.8 4.78 5.54 6.35 9.52 - 15.09 9.52 - 28.58
24" 609.6 5.54 6.35 6.35 9.52 - 17.48 9.52 - 30.96
26" 660.4 - 7.92 12.7 - 17.48 9.52 -

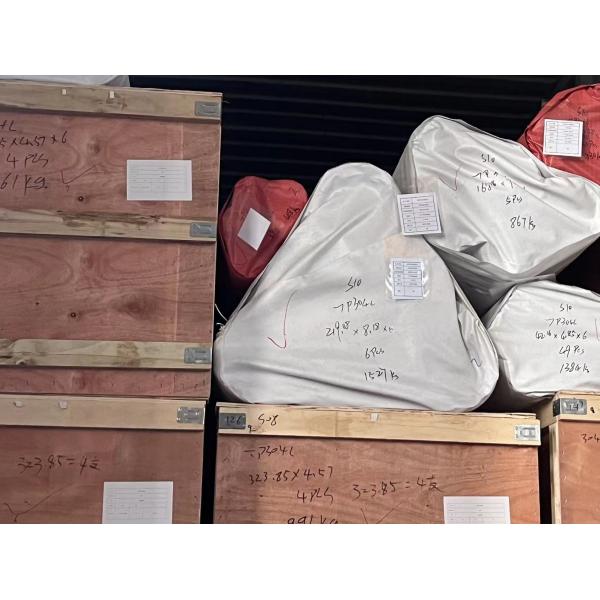

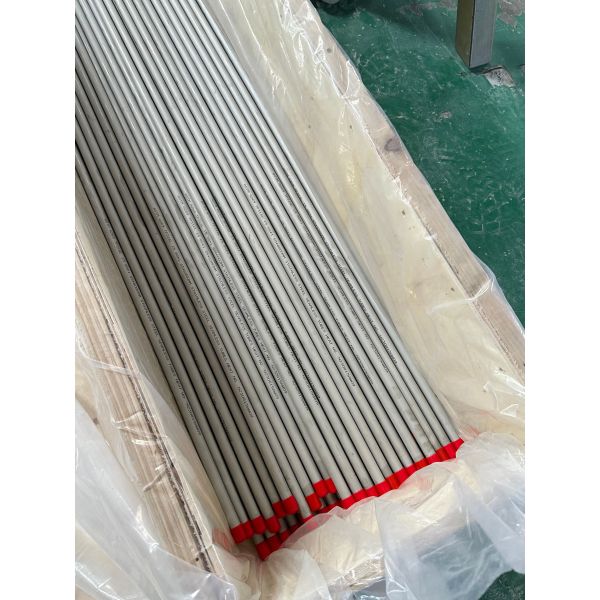

►Factory Shoot

10.29mm GL ASME Seamless Stainless Steel Tubing ABS DNV LR BV ASTM A31210.29mm GL ASME Seamless Stainless Steel Tubing ABS DNV LR BV ASTM A312

10.29mm GL ASME Seamless Stainless Steel Tubing ABS DNV LR BV ASTM A312

►FAQ

Q1: How is the quality?

A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.

Q2: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

Q2: What is your minimum order quantity?

A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.

Q4: Do you provide samples ? Is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q5: How long is your production lead time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
