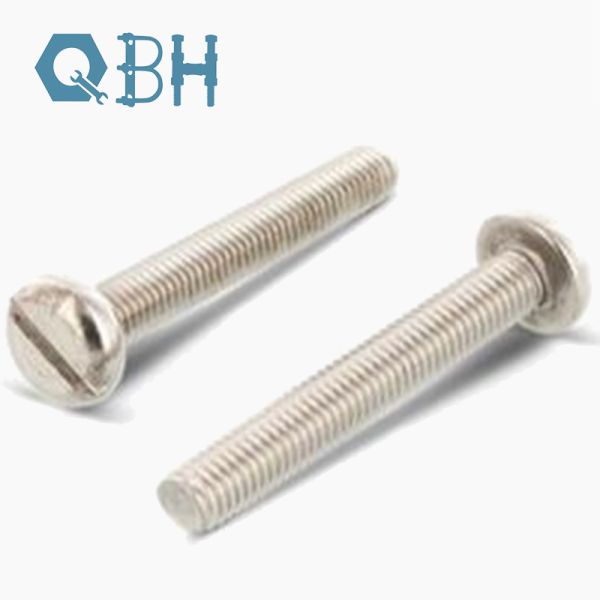

ISO1580 Slotted Pan Head Screws
ISO1580 Slotted Pan Head Screws
ISO1580 Slotted Pan Head Screws
ISO1580 Slotted Pan Head Screws
Specifications
Brand Name :
QBH
Model Number :
ISO1580
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 ton
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500ton/month
Delivery Time :
30 Work Days
Packaging Details :
25kg Carton+900kg/Pallet or 5KG/CTN
Materials :
Stainless Steel ( SS )
Productu Size :
M3-M38
Head Style :
round
Grade :
a2-70
type :
Self-tapping screw
Process :
Cold Forming
Description

ISO1580 Slotted Pan Head Screws

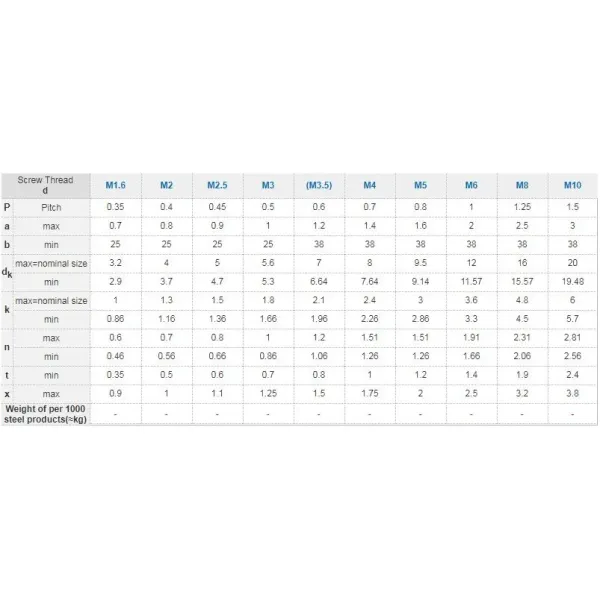

ISO1580 is the international standard governing product grade A slotted pan head screws. It specifies the dimensional and technical requirements for metric threads ranging from M1.6 to M10, ensuring interchangeability for general-purpose fastening applications where a low-profile, rounded head with a slotted drive is required.

Style Slotted Pan Head Screws
Standard ISO 1580
Size M1.6-M10
Coating black, zinc, HDG, Heat treatment, plain, etc.
Material Carbon steel & Stainless Steel
Packing bulk/ boxes in cartons, bulk in poly bags/ buckets, etc.
Pallet solid wood pallet, plywood pallet, ton box/bag, etc.
Shipment Port Shanghai & Ningbo

1. What is the standard scope and its relation to DIN85?
ISO1580 is the active international standard that supersedes the older German standard DIN 85. While similar, ISO 1580 serves as the updated global reference, incorporating revisions such as modified head dimensions for certain sizes and the removal of the former property class 8.8.

2. What materials and property classes apply?
The standard is material-neutral, with performance defined by the selected material's property class:

Carbon Steel: Commonly supplied as property class 4.8 for general-purpose use.

Stainless Steel: Typically A2-70 (AISI 304) or A4-80 (AISI 316), where the number indicates minimum tensile strength in MPa.

Other Materials: Brass or other alloys may be used, with mechanical properties as agreed between supplier and purchaser.

3. What are the typical applications and key usage notes?
These screws are used in general assembly across machinery, electronics, and consumer goods where a finished appearance is needed. The slotted drive requires a correctly sized flat-blade screwdriver to prevent cam-out and damage to the slot. Proper engagement length in the mating part is critical for achieving the screw's full clamping force.

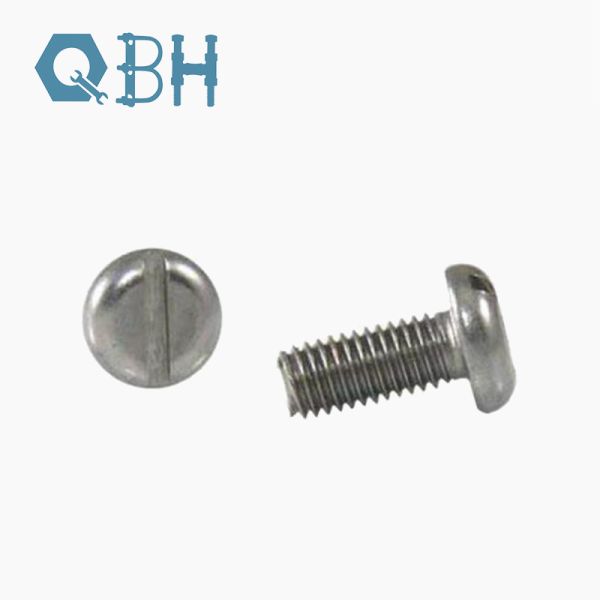

ISO1580 Slotted Pan Head Screws
ISO1580 Slotted Pan Head ScrewsISO1580 Slotted Pan Head Screws
FAQ
Q:Are you a factory or trading company?
A: We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.

Q: How does your factory do regarding quality control?
A: "Quality is priority" we supervise each production link and we always attach great importance to quality controlling from the beginning to the end.
