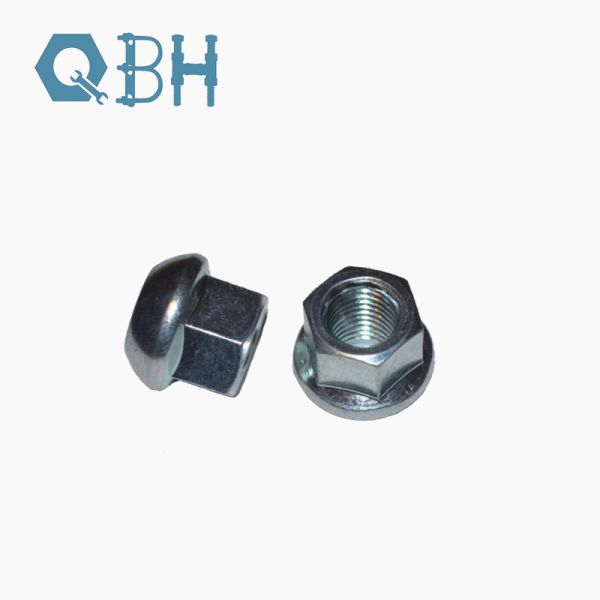

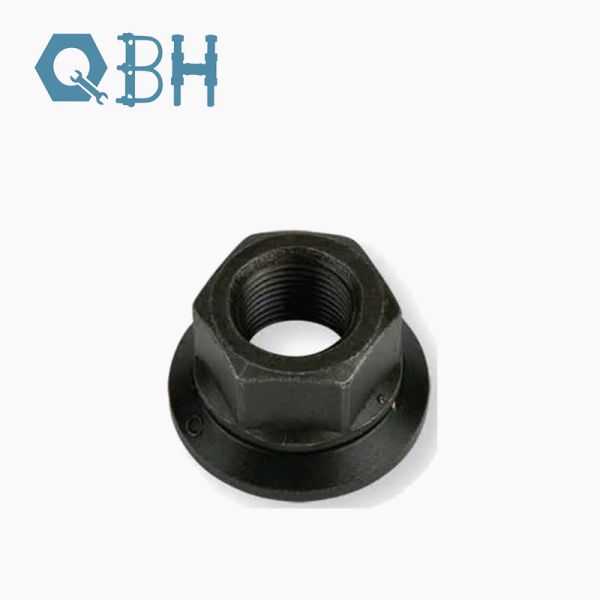

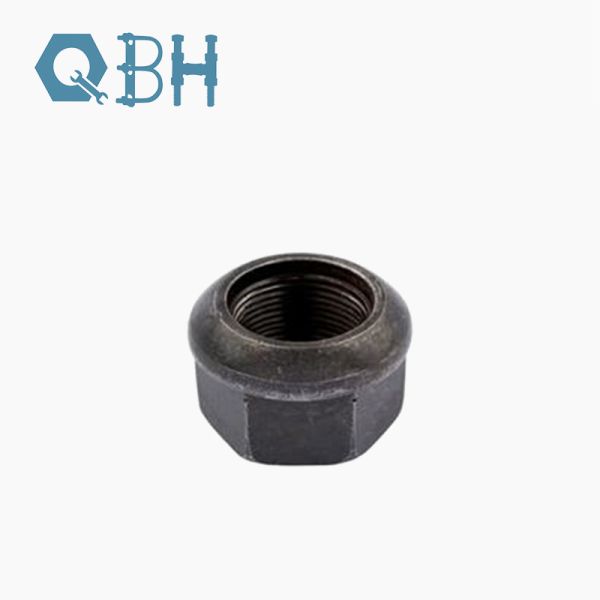

DIN74361 Hexagon Spherical Nut
DIN74361 Hexagon Spherical Nut
DIN74361 Hexagon Spherical Nut
DIN74361 Hexagon Spherical Nut
DIN74361 Hexagon Spherical Nut
DIN74361 Hexagon Spherical Nut
Specifications
Brand Name :
QBH
Model Number :
DIN74361
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
500KG
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P
Supply Ability :
600TON/MONTH
Delivery Time :
30days
Packaging Details :
25kg Carton+900kg/Pallet
Material :
carbon steel
Surface treatment :
Black,Zinc,H.D.G
Size :
M6-M20 1/4-3/4
Grade :
6.8 8.8 10.9 12.9
Process :
Cold Forging,Hot Forging
head :
round head
type :
hex nut
standard :
din980 din74361
Description
QBH M3-M39 HDG Zinc Plated Black Auto Tyre Wheel Hub Lock Conical Nuts
STYLE Conical Nuts
SUPPLIER QBH
STANDARD DIN74361
SIZE M6-M39
CLASS CS : 5,6,8,10,12;
SS : SS 304/316 , SUS 304/316;
etc.
Coating(Carbon steel) ZP, YZP, PLAIN, BLACK, HD.G, Dacromet, Geomet, Nickle Plated, Mechanical Zinc Plated,ect.
MATERIAL Carbon steel, Stainless Steel , Brass , etc.
PACKING bulk/ boxes in cartons, bulk in polybags/ buckets, etc.
PALLET solid wood pallet, plywood pallet, ton box/bag, etc.

Product Description

Prevailing Torque Type All-Metal Hex Conical Nuts
Thread Size
d
M3 M4 M5 M6 M7 M8 M10 M12 M14 M16
P Pitch Coarse thread
Fine thread 1
Fine thread 2
da min
max
dw min
e min
h max=nominal size
min
mw min
s max=nominal size
min
0.5 0.7 0.8 1 1 1.25 1.5 1.75 2 2
/ / / / / 1 1 1.5 1.5 1.5
/ / / / / / 1.25 1.25 / /
3 4 5 6 7 8 10 12 14 16
3.45 4.6 5.75 6.75 7.75 8.75 10.8 13 15.1 17.3
4.6 5.9 6.9 8.9 9.6 11.6 15.6 17.4 20.5 22.5
6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75
3.7 4.2 5.1 6 7 8 10 12 14 16
3.4 3.9 4.8 5.7 6.5 7.5 9 11 12 14
1.65 2.2 2.75 3.3 3.85 4.4 5.5 6.6 7.7 8.8
5.5 7 8 10 11 13 17 19 22 24
5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67
Thread Size
d
M18 M20 M22 M24 M27 M30 M33 M36 M39
P Pitch Coarse thread
Fine thread 1
Fine thread 2
da min
max
dw min
e min
h max=nominal size
min
mw min
s max=nominal size
min
2.5 2.5 2.5 3 3 3.5 3.5 4 4
2 2 2 2 2 2 2 3 3
1.5 1.5 1.5 / / / / / /
18 20 22 24 27 30 33 36 39
19.5 21.6 23.7 25.9 29.1 32.4 35.6 38.9 42.1
24.9 27.7 29.5 33.2 38 42.7 46.6 51.1 55.9
29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44
18 20 22 24 27 30 33 36 39
16 18 20 22 25 28 31 34 37
9.9 11 12.2 13.2 14.8 16.5 18.2 19.8 21.5
27 30 32 36 41 46 50 55 60
26.16 29.16 31 35 40 45 49 53.8 58.8

DIN74361 Hexagon Spherical Nut

Packing

DIN74361 Hexagon Spherical Nut


FAQ

1. How do you let me trust you.
Jiaxing City Qunbang Hardware Co.,ltd hs its own right of import and export,QBH trademark in China,United States,European Union have been registered.At the same time,you can also check the registration information of our company in the China industry and Commerce system.
2. How about your price.
We will be based on different markets,for different quality and quantity,tailor-made prices for customers,in order to achieve win-win goal.
3. Do you accept small order?
QBH company can accept small orders if we have them in stock.Generally speaking,the stock probability of stainless steel fasteners is higher than that of carbon steel fasteners.
4. What is your payment term
Normally,our terms of payment are TT and L/C,if we cooperate for a long time,we can reach the point of mutual trust,and fully support our customers to become bigger and stronger in the local market.
