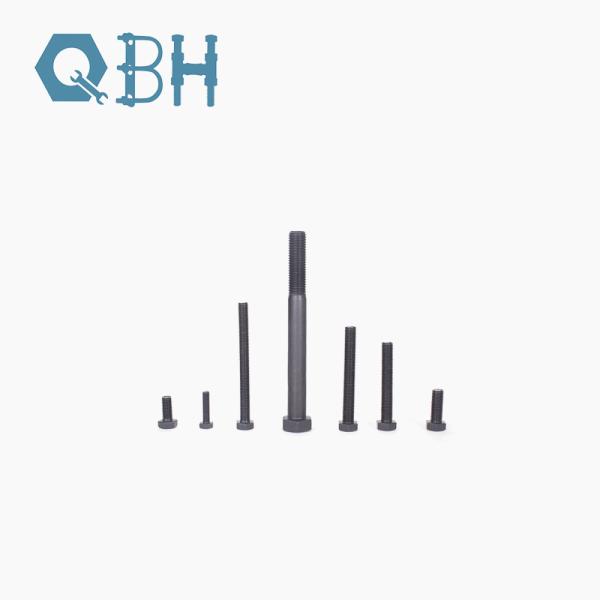

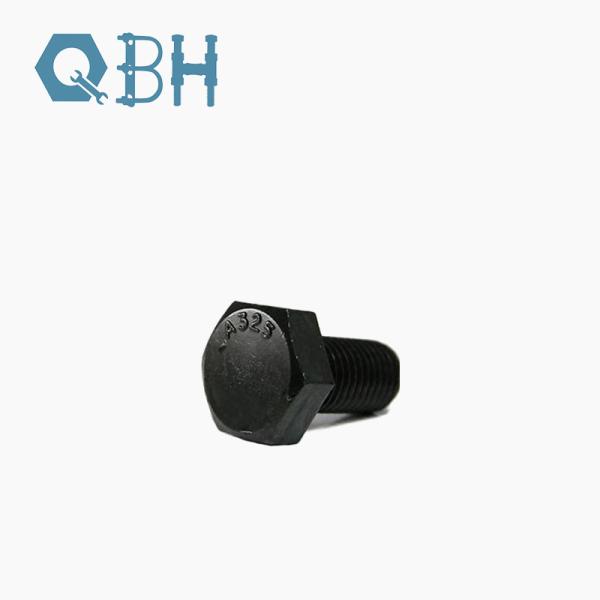

ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
Specifications
Brand Name :
QBH
Model Number :
ISO7411
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
900kg
Price :
Negotiation
Payment Terms :
L/C, T/T,OA
Supply Ability :
500TON/MONTH
Delivery Time :
30days
Packaging Details :
25kg Carton+900kg/Pallet
Material :
Carbon steel
Size :
1/2 to 1-1/2
Surface treatment :
Plain,Zinc,Black,H.D.G
Grade :
10.9 12.9
Process :
Cold Forging,Hot Forging
Head type :
hex head
Application :
Industry,BUILDING
Description
Style Heavy Hexagon Bolt
Standard ISO7411
Size M12-M30
Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9
Coating black, zinc, HDG, Heat treatment, plain, etc.
Material Carbon steel & Stainless Steel
Packing bulk/ boxes in cartons, bulk in poly bags/ buckets, etc.
Pallet solid wood pallet, plywood pallet, ton box/bag, etc.
Shipment Port Shanghai & Ningbo

ISO7411 Hexagon Bolts for High-Strength Structural Bolt

Screw Thread
d
1/2 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
ds max
min
s Nominal Size
max
min
e max
min
k Nominal Size
max
min
b Ref.
0.515 0.642 0.768 0.895 1.022 1.149 1.277 1.404 1.531
0.482 0.605 0.729 0.852 0.976 1.098 1.223 1.345 1.47
7/8 1-1/16 1-1/4 1-7/16 1-5/8 1-13/16 2 2-3/16 2-3/8
0.875 1.062 1.25 1.438 1.625 1.812 2 2.188 2.375
0.85 1.031 1.212 1.394 1.575 1.756 1.938 2.119 2.3
1.01 1.227 1.443 1.66 1.876 2.093 2.309 2.526 2.742
0.969 1.175 1.383 1.589 1.796 2.002 2.209 2.416 2.622
5/16 25/64 15/32 35/64 39/64 11/16 25/32 27/32 15/16
0.323 0.403 0.483 0.563 0.627 0.718 0.813 0.878 0.974
0.302 0.378 0.455 0.531 0.591 0.658 0.749 0.81 0.902
1 1.25 1.38 1.5 1.75 2 2 2.25 2.25

ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural Bolt
ISO7411 Hexagon Bolts for High-Strength Structural BoltFAQ

1.Are you a factory or trading company?
We are factories, mainly producing fasteners, such as nuts, bolts, screws and rods, and meanwhile, we also manage other hardware products.

2.Where is your factory located? How can I visit there?
Our factory is located in Jiaxing City, Zhejiang Province with a good location and convenient transportation, which is next to Shanghai Port, Ningbo Port and Zhapu Port.
3. How do you let me trust you.
Jiaxing City Qunbang Hardware Co.,ltd hs its own right of import and export,QBH trademark in China,United States,European Union have been registered.At the same time,you can also check the registration information of our company in the China industry and Commerce system.
4. How about your price.
We will be based on different markets,for different quality and quantity,tailor-made prices for customers,in order to achieve win-win goal.
5. What is your packing.
Usually 25KG/carbon,36CTNS on the pallets,or 20-30kg/Bags,then on the pallet,QBH company personalized packagingis also available,like 10PCS/plastic bag or 10pcs/box,it can print some information
