DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
Specifications
Brand Name :
QBH
Model Number :
DIN6927
Certification :
ISO7704
Place of Origin :
CHINA
MOQ :
900KG
Price :
Negotiation
Payment Terms :
L/C, T/T,OA
Supply Ability :
500TON/MONTH
Delivery Time :
30days
Packaging Details :
25kg Carton+900kg/Pallet or 5KG/CTN
Size :
M3-M36
Grade :
6.8
Class :
4/6/8/10
Head Style :
Hexagonal
Process :
Cold Forming
Material :
stainless steel carbon steel
Description
Style Hex Flange Nut
Standard DIN6927
Supplier QBH
Size M5-M20
Class 8, 10, 12
Coating black, zinc, HDG, Heat treatment, plain, etc.
Material Carbon steel
Packing bulk/ boxes in cartons, bulk in poly bags/ buckets, etc.
Pallet solid wood pallet, plywood pallet, ton box/bag, etc.
Shipment Port Shanghai & Ningbo

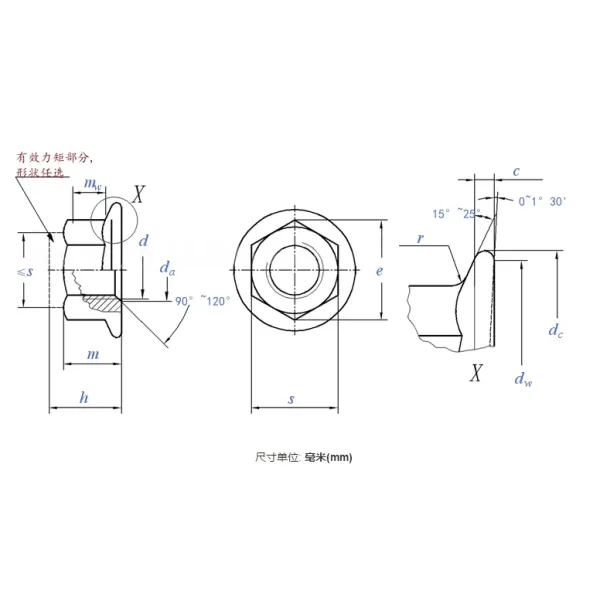

DIN 6927 standard specifies the requirements for hexagonal prevailing torque type all-metal nuts with an integrated flange. These nuts are engineered as single-part, self-locking fasteners, combining a standard hex nut with a wide, serrated bearing surface to create a secure and vibration-resistant joint. The key feature is the non-detachable, wide flange at the nut's base. Its underside is typically serrated (toothed). These serrations bite into the bearing surface, significantly increasing resistance to rotation and preventing loosening under vibration or dynamic loads.

The Self-Locking are all-metal lock nuts. The locking action is achieved through a controlled deformation of the threads (e.g., at the top) or the use of a non-circular locking element, which creates a frictional interference fit with the bolt thread. The large flange diameter acts as a built-in washer, distributing the clamping force over a wider area. This helps protect softer materials from damage and improves joint stability.

DIN6927 Hexagonal Toothed Non-Toothed Flange Nut

DIN6927 Hexagonal Toothed Non-Toothed Flange Nut

DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut
DIN6927 Hexagonal Toothed Non-Toothed Flange Nut

FAQ
1.What's your experience like?

Our general manager has been engaged in the export of fasteners since 2005.
Our team can provide you with professional fasteners selling and smooth export services.

2.How about your price?
High quality products with reasonable price. Please give me a inquire, We will quoted you a price for you
refer at once.

3. How do you control your quality?
We require the quality control department to inspect every production link of each shipment. And we can provide you MTC and mill certificate when the goods is finished.

4.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container,
we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let
factory priority produce
your goods.

5.What is your packing?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer's logo on the cartons. Or we customized cartons according to customers'
requirement.

6.What is your payment term?
We can accept T/T,LC for general order ,Paypal and Western union for small order or samples order.
