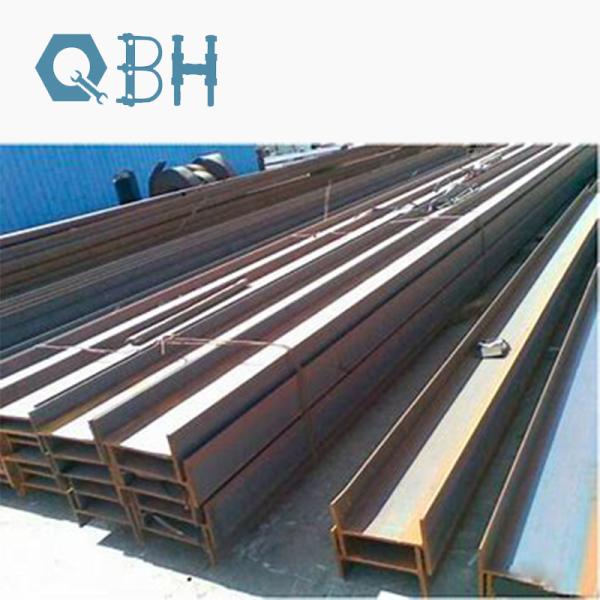

Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Channel Steel For Solar Energy Angle/ U/C/H/I Beam /Stainless Steel Profile
Specifications
Brand Name :
QBH
Model Number :
Channel Steel for Solar Energy
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
900kg
Price :
Negotiation
Payment Terms :
L/C, T/T,OA
Supply Ability :
300ton/month
Delivery Time :
20days
Packaging Details :
BULK or according customer requirement
Material :
304,316,325,345
Processing method :
Stamping
Sample :
Free sample can be sent for test
Delivery time :
within 20days
Superiority :
Price and service
Packing :
Bulk
Field of application :
Photovoltaic industry
Description

Standard
JIS,DIN,ASTM,AISI,GB,EN,bs
Grade
Q235,Q235B,Q345,SS400,ss335,ST41,ST50
Place of Origin
China
Shape
U Channel
Application
Industry Guide Rails
Perforated Or Not
Not Perforated
Tolerance
±1%
Processing Service
Bending, Welding, Punching, Decoiling, Cutting
Alloy Or Not
Is Alloy
Delivery Time
8-14 days
Invoicing
By actual weight
Length
6m-12m
Thickness
1.5mm-25mm
MOQ
10 Tons
Payment
30%T/T Advance + 70% Balance

300 Series: 304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347

200 Series: 201,202

400 Series: 409,409L,410,420,430,431,439,440,441,444

Others: 2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L, etc

Duplex stainless steel: S22053, S25073, S22253, S31803, S32205, S32304
Equal Angle Steel
Size Theoretical Size Theoretical Size Theoretical
Weight Weight Weight
mm Kg/m mm Kg/m mm Kg/m
20*3 0.89 75*5 5.82 140*14 29.5
20*4 1.15 75*6 6.91 140*16 33.4
25*3 1.124 75*7 7.98 160*10 24.7
25*4 1.459 75*8 9.03 160*12 29.4
30*3 1.373 75*10 11.1 160*14 34
30*4 1.786 80*5 6.21 160*16 38.5
40*3 1.852 80*6 7.38 180*12 33.2
40*4 2.422 80*7 8.53 180*14 38.4
40*5 2.967 80*8 9.66 180*16 43.5
45*3 2.09 80*10 11.9 180*18 48.6
45*4 2.74 90*6 8.35 200*14 42.9
45*5 3.37 90*7 9.66 200*16 48.7
45*6 3.99 90*8 10.9 200*18 54.4
50*3 2.332 90*10 13.5 200*20 60.1
50*4 3.059 90*12 15.9 200*24 71.2
50*5 3.77 100*6 9.37 / /
50*6 4.465 100*7 10.8 / /
56*3 2.62 100*8 12.3 / /
56*4 3.45 100*10 15.1 / /
56*5 4.25 100*12 17.9 / /
56*8 6.57 100*14 20.6 / /
60*5 4.57 100*16 23.3 / /
60*6 5.42 110*7 11.9 / /
63*4 3.91 110*8 13.5 / /
63*5 4.82 110*10 16.7 / /
63*6 5.72 110*12 19.8 / /
63*8 7.47 110*14 22.8 / /
63*10 9.15 125*8 15.5 / /
70*4 4.37 125*10 19.1 / /
70*5 5.4 12.5*12 22.7 / /
70*6 6.41 12.5*14 26.2 / /
70*7 7.4 140*10 21.5 / /
70*8 8.37 140*12 25.5 / /
Unequal Angle steel
Size Theoretical Size Theoretical Size Theoretical
Weight Weight Weight
mm Kg/m mm Kg/m mm Kg/m
25*16*3 0.91 75*50*5 5.339 110*70*10 13.5
25*16*4 1.81 75*50*6 4.808 125*80*7 11.1
32*20*3 1.17 75*50*7 5.699 125*80*8 12.6
32*20*4 1.52 75*50*8 7.431 125*80*10 15.5
40*25*3 1.48 80*50*6 5.935 125*80*12 18.3
40*25*4 1.94 90*56*6 6.717 140*90*8 14.2
45*28*3 1.69 90*56*7 7.756 140*90*10 17.5
45*28*4 2.2 90*56*8 8.779 140*90*12 20.7
45*28*5 2.25 100*63*6 7.55 140*90*14 23.9
45*30*4 2.25 100*63*7 8.72 160*100*10 19.9
50*32*3 1.91 100*63*8 9.88 160*100*12 23.6
50*32*4 2.49 100*63*10 12.1 160*100*14 27.2
56*26*3 2.15 100*80*6 8.35 160*100*16 30.8
56*36*4 2.82 100*80*7 9.66 180*110*10 22.3
56*36*5 3.47 100*80*8 10.9 180*110*12 26.5
63*40*4 3.19 100*80*10 13.5 180*110*14 30.6
63*40*5 3.92 110*70*6 8.35 180*110*16 34.6
63*40*6 4.64 110*70*7 9.66 200*125*12 29.8
63*40*7 5.34 110*70*8 10.9 200*125*14 34.4
/ / / / 200*125*16 39
/ / / / 200*125*18 43.6

Channel steel is a long stripe of steel with a fluted section, construction and mechanical use of carbon structural steel, and is a profile steel with complex section. Its section shape is groove shape. Channel steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing. , It is often used together with I steel. Channel steel is divided into ordinary u-steel and light Channel steel. The specification of hot rolled ordinary Channel steel is 5-40#. The specification of hot rolled flexible Channel steel is 6.5-30# after agreement between the purchaser and the supplier.

Channel steel can be divided into four kinds according to the shape: cold bending equilateral u-steel, cold bending unequal side Channel steel, cold bending inner edge coil Channel steel, and cold bending outer edge coil u-steel.



Our Services

Professional Manufacturer: All of our Fastener are designed and manufactured according to buyers'
specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply
Perfect fastening solution with 15+ years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: customized services according to the samples and drawings offered.

Free Samples for Standard Fastener from Jiaxing City Qunbang Hardware
We Promise:
1.High quality
2. Competitive price
3. The shortest delivery
4. The fastest response
5. The best service
