Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
Specifications
Brand Name :
HUIHAOCUSTOM
Place of Origin :
China
Delivery Time :
15 work days
MOQ :
10000 pcs
Certification :
ISO9001-2015
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Packaging Details :
500 pcs per carton , 36 cartons per pallet
Name :
rock wool insulation pins
Type :
perforated base pins
Heat conductivity :
0.037-0.042w/m.k
Dimensional stability :
1%
Pin length :
38mm , 50mm, 65mm, 84mm, 114mm
Model Number :
per-50 / 40
Supply Ability :
400000 pcs per 30 days
Material :
Mild steel or 18-8 stainless steel
Application :
thermal insulation,Heat Insulation,Construction,fire resistance,Building Construction Project
Pin diameter :
2.7 mm , 3mm in standard
Description

Exterior Wall Rock Wool Insulation Pins Used For Soundproofing Works


Technical specification data of the rock wool insulation pins

Item No.

Size(mm)

Pin Diameter

(mm)

Pin Length

(mm)

Washers

No.1

25 * 25

1.70

From 10mm to 280 mm are standard.

Self - locking washers are available in a variety of sizes, Shapes. and materials.

No.2

40 * 40

2.67 & 3.00

No.3

50 * 50


Standard details of rock wool insulation pins

  • pin material: softly anneaded mild steel wire and stainless steel wire or aluminum wire
  • base material: hardness mild steel and stainless steel
  • pin finshed: zinc coated, copper plating or polished

Applications of the rock wool insulation pins

Exterior Wall Rock Wool Insulation Pins For Soundproofing Works


Perforated base rock wool insulation pin are used to attach insulation with the use of General Purpose Adhesive. Masonry and other sound substrates. Surfaces must be clean and dry before adhesive is applied. Some protective coatings are not compatible with adhesives and it is recommended that the user make test bonds before proceeding with the application. After the Pin is installed, insulation is impaled over the spindle and secured with a self-locking washer

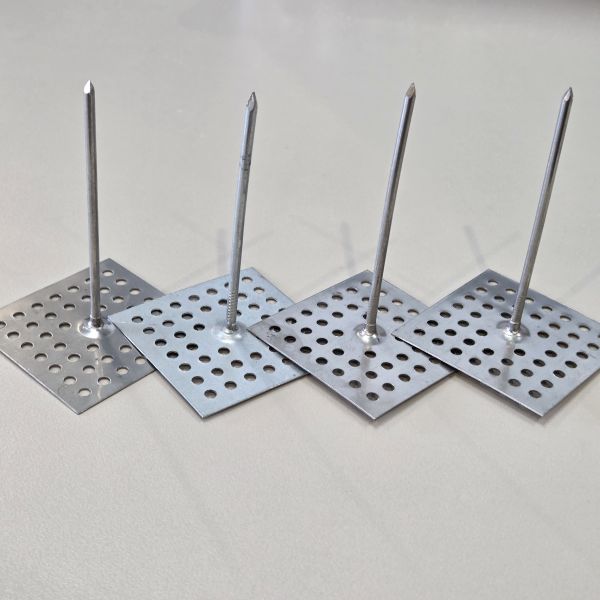

Images of rock wool insulation pins

Exterior Wall Rock Wool Insulation Pins For Soundproofing Works

Exterior Wall Rock Wool Insulation Pins For Soundproofing Works

Package details of rock wool insulation pins

standard carton size qty per carton
30cm x29 cm x28 cm 500 pcs per carton
41cm x28 cm x17cm 250 pcs per carton


Exterior Wall Rock Wool Insulation Pins For Soundproofing Works



Exterior Wall Rock Wool Insulation Pins For Soundproofing Works
