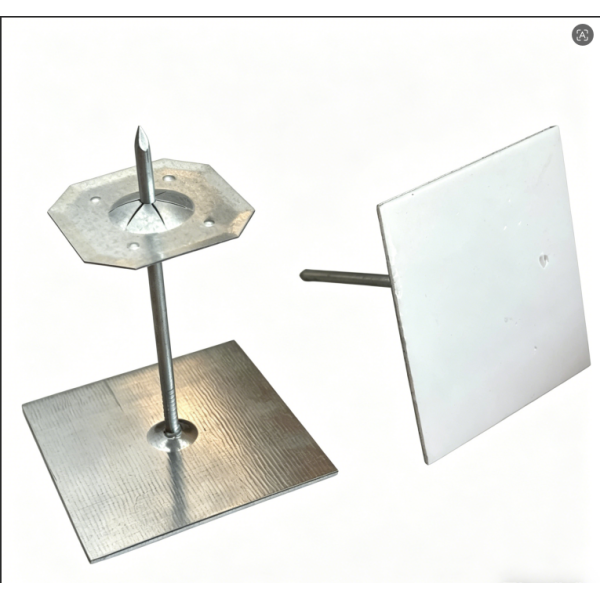

90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Factory :
XIangyi Parts
Base Material :
Galvanized steel or stainless steel
Base Size :
40x40, 50x50 etc.
Package Design :
Supported
Pin Diameter :
2.7mm or 3mm or 3.4mm etc.
Brand Name :
XIANGYI
Pin Length :
1" - 12"
Model Number :
self stick pins
Delivery Time :
7 work days
Place of Origin :
China
Certification :
ISO9001-2015
Packaging Details :
cartons + pallet
Special Size :
Supported
Supply Ability :
380000 sets per 30 days
Base Thickness :
0.4mm plate + 1.0mm double face tape
Pin Material :
Galvanized steel or stainless steel or aluminum
Name :
Galvanized Steel Stick Pins
MOQ :
10000 pcs
Description

90mm Galvanized Steel Stick Pins Fixing Pre-formed Insulation Material To Metal Duct

Quick Details Of The 90mm Insulation Stick Pins

The Self Stick Pins are used to fix the pre-formed insulation to metal duct and can fix fiberglass,

mineral wool, polystyrene, rigid & flexible PU foam, PIR phenolic foam, cork and similar materials.




Name 90mm Galvanized Steel Self Stick Pins
Material Galvanized
Base Size 50mm x 50mm
Base Thickness 0.4mm

Adhesive Thickness

1.0mm
Pin Diameter 2.7mm
Pin Length 90mm




Specifications Of The Self Stick Pins



Material available




Pin material


-mild steel: must be annealed treatment, easy

for bend; zinc coated/copper plated finished

for anti-rust

-aluminum 1100 grade

-annealed stainless steel for specification


Base


Galvanized steel, stainless steel




Common size details


Pin diameter


Pin length


Base thickness


Base size


12ga(2.7mm)


1”-12”


1mm


50x50mm/40x40mm


3mm


1”-12”


1mm


50x50mm/40x40mm


10ga(3.4mm)


1”-12”


1mm


50x50mm/40x40mm


　

Features Of The Self Stick Pins

* Application specific design

* Corrosion resistance

* Efficiency

* Eco friendly product

* Weather proof

* Long serving life

* Sturdy constructio


Technical Datas Of The Self Stick Insulation Pins


Foam Density: 182 kg/m3
Liner Release Value: 10N/m
Peel Adhesion(23℃): 20 N/25mm
Application Temperature: +10℃ - Advisory
Static Shear: >1000 Hrs(PSTC)
Service Temperature(Minimum): -35℃
Service Temperature(Maximum): +90℃
Tensile Strength: (L)113 N/m2 (CNS10487)(C)85N/m2
Elongation: (L)170% (CNS 10487) (C) 150%
Shelf Life: 2years (20℃ 65%RH)


Application Of The Self Stick Pins


1. Pins are very sharp and easy go through any insulation.
2. Pins are soft and easy to be bent over
3. The tape has a good stickness, every pin could load 1.5kg
4. The tape can work at 5℃ - 80℃
90mm Galvanized Steel Stick Pins Fixing Pre Formed Insulation Material To Metal Duct


Package Details Of Insulation Stick Pins


PIN LENGTH CARTON SIZE QTY/CARTON
38MM 41CMX28CMX17CM 1000PCS
50MM-65MM 41CMX28CMX17CM 500PCS
70MM-84MM 30CMX28CMX29CM 500PCS
90MM-120MM 30CMX30CMX30CM 500PCS
130MM-160MM 30CMX30CMX35CM 500PCS
170MM-203MM 30CMX30CMX28CM 250PCS
OTHERS SUPPORT CUSTOM


Why choose our HEBEI XIANGYI insulation fasteners?


1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management


Insulation Pins

Insulation Washers

Perforated base insulation hangers

Self locking washers

Self stick insulation pins

Dome cap washers

Lacing anchors and rings

Insulation clips

CD weld pins

Insulation discs

Bi metallic pins


Cup head weld pins


Rock wool metal plugs


Solar Panel Clips
