Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Aluminum Critter Guard Solar Panel Wire Mesh Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels
Specifications
Certification :
ISO9001-2015
Size :
38mm ,
MOQ :
10000 sets
Sample :
Supported
Brand Name :
HUIHAO
Treatment :
Anti-ultraviolet Coating
Delivery Time :
10 work days
Usage :
Attaching Galvanized Welded Wire Mesh To Solar Panels
Model Number :
Aluminum Critter Guard Fastener Clips
Factory :
Over 15 years experience
Service :
Door-to-Door Service
Packaging Details :
100 pcs per bag or 60 pcs per bag or 500pcs per bags+ carton package
Payment Terms :
L/C,D/A,D/P,T/T
J Hook Size :
2.5 mm X 115mm
Material :
aluminum
Place of Origin :
China
Name :
Aluminum Critter Guard Fastener Clips
Supply Ability :
500000 sets per 30 days
Description

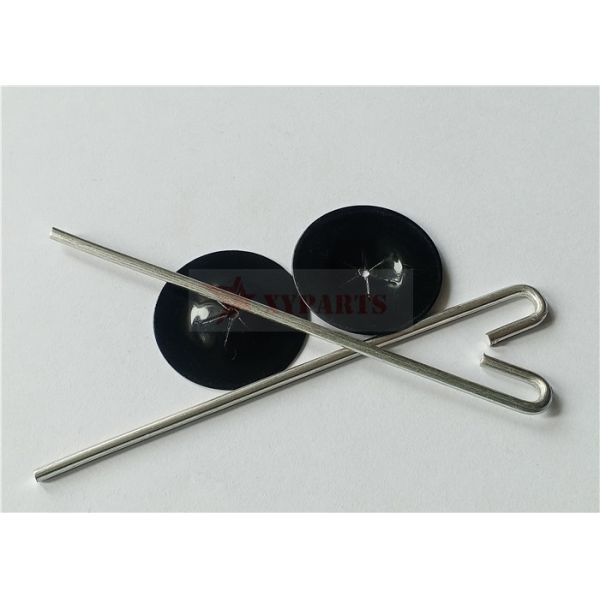

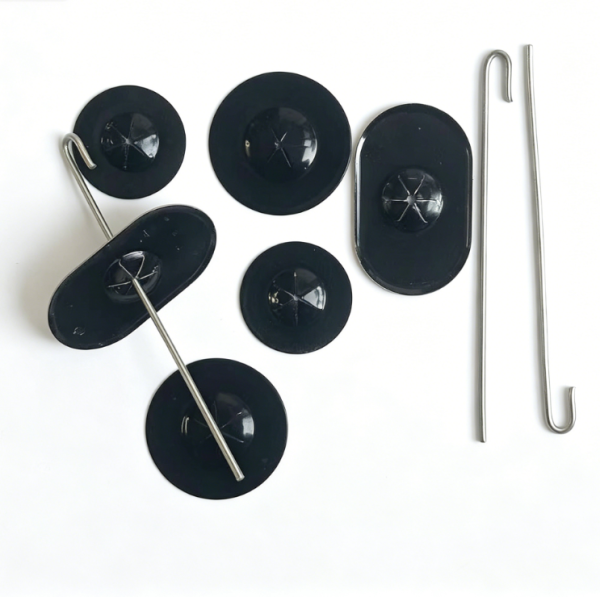

Aluminum Critter Guard Fastener Clips For Attaching Galvanized Welded Wire Mesh To Solar Panels

Specification Of The Aluminum Critter Guard Fastener Clips

Name Aluminum Critter Fasteners Clips
Contain J hook and self locking washers
J hook material easy bending soft 2.5mm aluminum alloy wire
J hook standard size 2.5mm x 115mm
Washer material Hardness 0.6mm thickness aluminum alloy sheet
Washer standard size 38mm
Finsh for washer UV coating black color
Noted

  • For the j hooks, the material is must choose anneaded steel wire /stainless steel wire or soft aluminum wire. it is very important for the fixing wire mesh. soft wire is easily for bending.

  • For self locking washers, we must choose hardness material to make sure to lock firmly and nondeformable. at the same time, we must concider left time, so uv coated for aluminum control washer or choose stainless steel material to make rustproof.

Applications Of The Aluminum Critter Guard Fastener Clips

Features and Benefits

1.Clips will not scratch, pierce or impact integrity of solar panels.
2.Clips are used to secure the mesh to solar panels which creates a physical barrier to keep

birds from accessing and nesting in the area beneath the solar arrays

Calculating the Number of Critter Guard Fasteners Clips For Solar Panels Needed

The number of clips needed will depend on the solar panel system.A standard 3kW system

(2 rows of 6 panels each - 12 panels total installed in a portrait orientation) requires 35 clips.

When calculating the necessary number of clips need for a solar array:

Space clips no more than 1.5 feet apart
Use 2 clips for the short side of every exposed edge of a panel
Use 3 clips for the long side of every exposed edge of a panel
Clips are available in packs of 35, 50 and 100

Installation features
1: Does not violate panel integrity.
2: It can easily be trimmed or bent after assembly.
3: Install and remove quickly and easily
4: The specification can be customized
5: The clips are sold separately or with the solar panel mesh

Package Of The Aluminum Critter Guard Fastener Clilps For Solar Panels

J Hooks Package:
1. 100 pcs per pp bag, 80 bags per carton
2. 500pcs per pp bag, 16bags per carton
3.1000pcs per pp bag, 8 bags per carton
Carton size: 41 cm x 28 cm x17 cm
Self Locking Washer Package:
1. 100 pcs per pp bag, 60 bags per carton
2. 500pcs per pp bag, 12bags per carton
3.1000pcs per pp bag, 6 bags per carton
Carton size: 41 cm x 28 cm x17 cm

About this supplier
Company Profile- anping county huihao wire mesh manufacture co.,ltd Huihao mainly produce: metal rings mesh, insulation fasteners, decoration metal mesh.
Huihao services include : pattern design frame design installation system design surface finished Mould customization
