Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Specifications
Material :
Stainless Steel 304/ 316
Usage :
Protection
Woven Type :
Ferrule Type
Length :
Customers' Requirement
Certification :
ISO9001-2015
Payment Terms :
L/C,T/T,Western Union
Cable Strand :
7X7 OR 7X19
Model Number :
HH-SSR1.2-20/38
Place of Origin :
CHINA
MOQ :
1 square meter
Open size :
20mm - 156 mm In common
Supply Ability :
1200 square meters per 30 days
Packaging Details :
carton + wooden case for Titanium Anode Cathode Mesh , or customized to be your request
Delivery Time :
within 7 work days
Rope Dia :
1mm~5mm or customized
Name :
wire rope mesh
Price :
to be the qiantity
Description
Architectural Flexible Stainless Steel Rope Mesh for Cladding & Safety
Product Overview

Flexible wire rope mesh designed for both protection and decoration applications. This versatile mesh solution combines safety with aesthetic appeal for various architectural and industrial uses.

Quick Specifications
  • Material: Stainless steel 304, 304L, 316, and 316L
  • Rope Wire Diameter: 1mm - 3.2mm (standard range)
  • Open Size: 20mm - 120mm (standard range)
  • Length and Width: Customizable to project requirements
  • Additional Support: Installation accessories, color finishes, and design guidance available
Product Description

Wire rope mesh is available in two primary series based on weave types: Inter-woven (Knotted) and Ferrule Type. The product can be further categorized into various styles and types depending on materials, ferrules, weaving methods, and specific applications.

Constructed from high-quality stainless steel cables and various ferrules (stainless steel, aluminum, copper, etc.), our wire rope mesh ensures durability and performance in diverse environments.

Technical Specifications
Item No. Cable Diameter Mesh Opening Size
HH-32120F 1/8" (3.2mm) 4.75" x 8.23" (120 x 207.8mm)
HH-32102F 1/8" (3.2mm) 4" x 6.9" (102 x 176.7mm)
HH-3290F 1/8" (3.2mm) 3.55" x 6.15" (90 x 156mm)
HH-3276F 1/8" (3.2mm) 3" x 5.2" (76 x 131.6mm)
HH-3251F 1/8" (3.2mm) 2" x 3.46" (51 x 88.3mm)
HH-24102F 3/32" (2.4mm) 4" x 6.9" (102 x 176.7mm)
HH-2490F 3/32" (2.4mm) 3.55" x 6.15" (90 x 156mm)
HH-2476F 3/32" (2.4mm) 3" x 5.2" (76 x 131.6mm)
HH-2460F 3/32" (2.4mm) 2.4" x 4.16" (60 x 104mm)
HH-2451F 3/32" (2.4mm) 2" x 3.46" (51 x 88.3mm)
HH-2076F 5/64" (2.0mm) 3" x 5.2" (76 x 131.6mm)
HH-2060F 5/64" (2.0mm) 2.4" x 4.16" (60 x 104mm)
HH-2051F 5/64" (2.0mm) 2" x 3.46" (51 x 88.3mm)
HH-2038F 5/64" (2.0mm) 1-1/2" x 2.6" (38 x 65.8mm)
HH-1676F 1/16" (1.6mm) 1.2" x 2.08" (76 x 131.6mm)
HH-1651F 1/16" (1.6mm) 2" x 3.46" (51 x 88.3mm)
HH-1638F 1/16" (1.6mm) 1-1/2" x 2.6" (38 x 65.8mm)
HH-1630F 1/16" (1.6mm) 1.2" x 2.08" (30 x 52mm)
HH-1625F 1/16" (1.6mm) 1" x 1.73" (25.4 x 44mm)
HH-1238F 3/64" (1.2mm) 1-1/2" x 2.6" (38 x 65.8mm)
HH-1230F 3/64" (1.2mm) 1.2" x 2.08" (30 x 52mm)
HH-1225F 3/64" (1.2mm) 1" x 1.73" (25.4 x 44mm)
HH-1220F 3/64" (1.2mm) 4/5" x 1.39" (20 x 34.6mm)

Note: Available in various weave types with compatible installation accessories.

Installation Example
Flexible Stainless Steel Rope Mesh 304/316 Customizable For Cladding & Safety
Key Features
High Strength & Lightweight
Exceptional tensile strength with minimal weight
Safety & Eco-Friendly
Environmentally safe and natural appearance
Weather Resistance
Excellent corrosion and weather resistance
High Transparency
Good visibility and minimal visual obstruction
Large Span Capability
Suitable for extensive surface installations
Long Service Life
Durable construction with 30+ years service life
Design Flexibility
Customizable graphics and structural designs
Easy Installation
Simple mounting on any structural framework
Applications
  • Steel Mesh Balustrade: Bridges, stairs, balconies, pathways
  • Cable Mesh Safety Systems: Comprehensive safety solutions
  • Safety Netting: Structural suicide prevention measures
  • Helipad Safety Net: Modular heliport webbing systems
  • Zoo Mesh Enclosures: Secure containment for most animals
  • Aviary Netting: Lightweight, durable bird enclosures

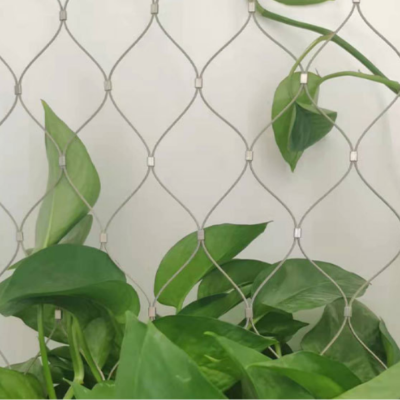

  • Green Facades: Support systems for climbing plants
Technical Support Services
Design Consultation

Professional design suggestions and suitable installation options provided during the design phase.

Accessories & Tools

Comprehensive range of accessories and tools supplied according to specific installation requirements.

Pre-Assembled Elements

Mesh supplied with frames or other elements to simplify installation and reduce project timelines.

Installation Guidance

Professional team available for on-site installation guidance when required.
