Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
Specifications
Model Number :
Green Wall Trellis System
support rope diameter :
4mm
Delivery Time :
within 7 work days
Spacer :
M8/M10-12-80-26.9-8-24MM
Certification :
ISO9001-2015
grid size :
200mmx300mm in common
Supply Ability :
1000 square meters per 30 days
Clamp ring light :
m4-10/15/3
Price :
contact with us to get the lowest price
Rope size greentrellis :
M8/30/7/8
MOQ :
10 square meters
Packaging Details :
wooden case, could be customized
Horizontal rod :
3.7-850MM/1450MM/2050MM/2500MM
Angle section :
40x40x4
Place of Origin :
Hebei,China
Cross clamp :
21-7-20-6
Wall connection :
M10 OR M12
Brand Name :
HUIHAOCUSTOM
Name :
Green Wall Trellis System
Description

Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting For Interior Design

We manufacture and supply Green Wall Trellis System designed for architectural cladding, safety barriers, and green infrastructure. Available in 304/316 stainless steel, all products are custom-fabricated to meet specific project dimensions and load requirements.
Green Wall Trellis System Overview
The Green Wall Trellis System is engineered for modern building envelopes and landscape architecture. Constructed from AISI 316 marine-grade stainless steel, it delivers high tensile strength and structural flexibility.
Scope of Application
  • Facade Mesh: Functions as an external solar shading and protective screen for double-skin facades, offering ventilation and visual filtration.
  • Trellis Netting: Acts as a stable growing medium for vertical gardens and climbing plants.
  • Safety & Partitions: Used for fall protection guardrails, zoo enclosures, and interior safety partitions.
Key Features of Green Wall Trellis System
  • Pre-tensioned Design: Factory pre-tensioning ensures dimensional stability and prevents mesh sagging post-installation.
  • Seamless Integration: Engineered with concealed fixing systems to integrate invisibly with surrounding structures.
  • Environmental Durability: Finished with electro-polishing to withstand harsh environments, including coastal areas and industrial zones.
Support & Logistics: Free material samples and CAD technical drawings are provided. Worldwide delivery supported.
Product Specifications of rope mesh system
Cable Diameter Mesh Opening Application
2.0mm 200×200mm Architecture outdoor mesh
2.0mm 40×40mm Playground mesh, stadium protection mesh
2.0mm 50×50mm Playground mesh, decorative indoor mesh
2.0mm 60×60mm Architecture outdoor mesh, Playground mesh
2.0mm 80×80mm Decorative indoor mesh, Aviary mesh
2.0mm 100×100mm Airport protection mesh
2.0mm 120×120mm Suspended ceiling mesh
2.0mm 140×140mm Overhead coverage mesh
1.5mm 60×60mm Playground mesh, Stairs Fence
1.5mm 40×40mm Playground mesh, aviary mesh, Stairs Fence, Architecture mesh, Animal enclosure
1.5mm 100×100mm Architecture outdoor mesh, Pool protective net, Stairs Net
1.5mm 50×50mm Stairs Fence
1.5mm 30×30mm Shading canopy mesh, Tower Protection Net
1.5mm 25×25mm Aviary mesh
1.0mm 20×20mm Aviary mesh
1.0mm 30×30mm Aviary mesh
1.0mm 40×40mm Playground mesh, protection mesh
2.5mm 50×50mm Animal enclosure
3.0mm 100×100mm Safety net, overhead coverage mesh
3.0mm 40×40mm Playground mesh
3.0mm 50×50mm Barrier mesh, decorative indoor mesh
3.0mm 80×80mm Bridge safety net
Product Images

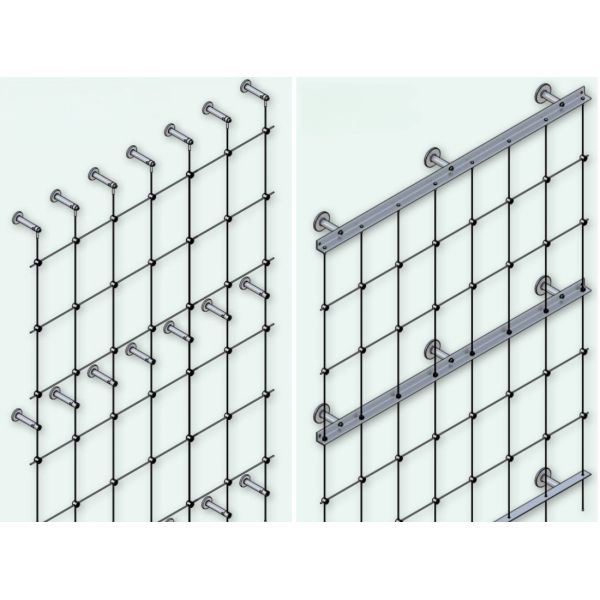

Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting Stainless Steel Rope Green Wall Trellis System Custom Cut & Bend Metal Netting
