Flexible Weatherproof Wall Wire Trellis System With AISI316 Material And 50x80mm Aperture
Flexible Weatherproof Wall Wire Trellis System With AISI316 Material And 50x80mm Aperture
Flexible Weatherproof Wall Wire Trellis System With AISI316 Material And 50x80mm Aperture
Flexible Weatherproof Wall Wire Trellis System With AISI316 Material And 50x80mm Aperture
Specifications
Model Number :
Flexible Weatherproof Cable Netting System Green Wall
Distance from wall :
100,150,200mm
Supply Ability :
1000 square meters per 30 days
Support rope :
3mm diameter
Price :
contact with us to get the lowest price
Webnet :
rope diameter 1.5mm, aperture 50x80mm
Delivery Time :
within 7 work days
Feature :
easy to plan and install
Certification :
ISO9001-2015
Climbing patterns :
vines, climber
MOQ :
10 square meters
Packaging Details :
wooden case, could be customized
Material :
AISI316
Place of Origin :
Hebei,China
Mounting parts :
spacers, ropes and end connectors, rope clamps, rope coss clamps, cross bars
Brand Name :
HUIHAOCUSTOM
Name :
Flexible Weatherproof Cable Netting System Green Wall
Description
Flexible Weatherproof Cable Netting System Green Wall
A comprehensive environmental protection and erosion control solution designed for climbing plants and vegetation management.
Product Specifications
Attribute Details
Name Flexible Weatherproof Cable Netting System Green Wall
Distance from wall 100, 150, 200mm
Climbing pattern vines, climber
Mounting parts spacers, ropes and end connectors, rope clamps, rope cross clamps, cross bars
Material AISI316
Webnet rope diameter 1.5mm, aperture 50x80mm
Support rope 3mm diameter
Feature easy to plan and install
Installation Requirements

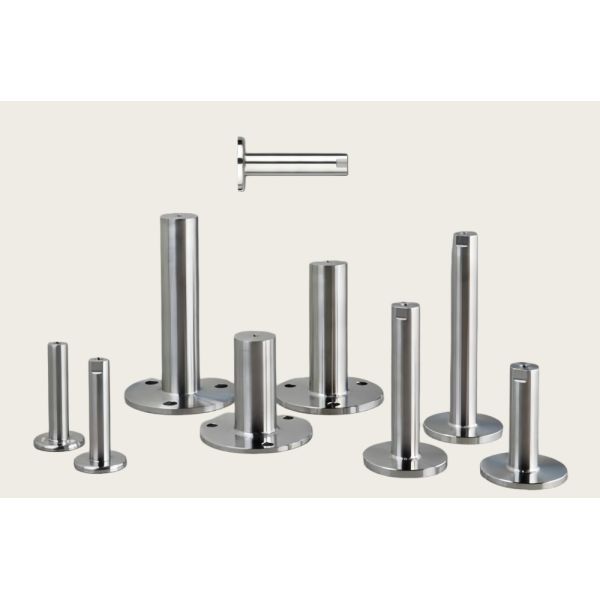

The spacers are specifically dimensioned to ensure the cable netting is positioned at the correct distance from the supporting structure's axis, allowing for the accommodation of climbing plants. At the project planning stage, it is imperative that the structural integrity is assessed to confirm the proposed framework can safely absorb the forces exerted by the system.
Furthermore, the anchorage must possess sufficient resistance to meet or exceed the component force requirements outlined in the technical table. As a standard practice, this level of resistance is achievable when using the following approved anchoring systems:
  • Concrete Facades: Quality Grades C25/30 or higher
  • Anchoring Systems: Options include A4-70 quality stainless steel threaded rods with specified embedment depths (70 mm for M8, 100 mm for M10/M12), chemical injection anchors, or mechanical vinyl resin mortar anchors
Technical Specifications
Wall distance Component resistance force Anchor rod for thread Anchoring wood (min)
68 mm 3 kN M8 Ø 12 mm
100 mm 3 kN M8 3 x Ø 5.2 mm
100 mm 4.5 kN M10 Ø 12 mm
150 mm 4.5 kN M10 Ø 12 mm
200 mm 4.5 kN M12 Ø 12 mm
100 mm 12 kN 3 x M8 -
150 mm 12 kN 3 x M10 -
200 mm 12 kN 3 x M12 -
