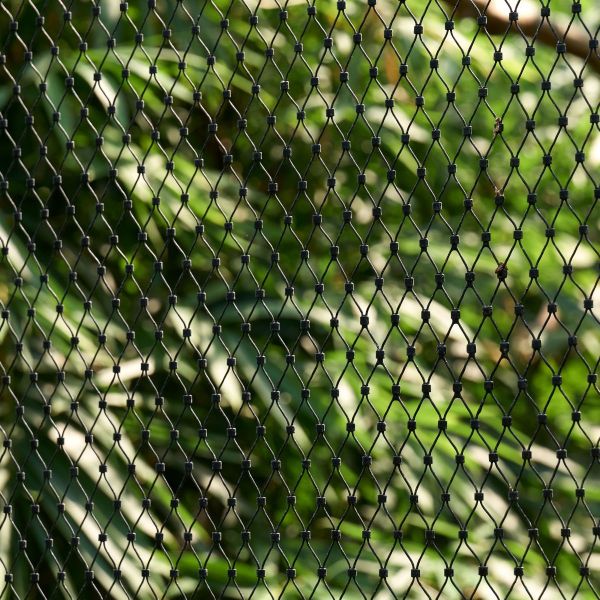

Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Virtually Invisible Premium Stainless Steel Cable Trellis With Wall Standoff Brackets For Plant Support Net
Specifications
Model Number :
Stainless Steel Cable Trellis
Cable Diameter :
1.2mm 1.5mm 2.0mm 2.4mm 3.0mm
Price :
CONTACT US TO GET THE LOWEST PRICE
Structure Type :
Single Cable Run, Square Grid Cable Trellis ,Rectangular Grid Cable Trellis, Ferrule-Jointed Diamond Mesh
Delivery Time :
7 WORK DAYS
Certification :
ISO9001-2015
Grid / Mesh Spacing :
50x50mm 75x75mm 100x100mm 150x150mm 200x200mm Custom
Supply Ability :
2000 SQAURE METERS PER 20 DAYS
MOQ :
1 SQAURE METERS
Packaging Details :
ROLLS+CARTON+WOODEN CASE OR TO BE YOUR REQUEST
Standoff Distance :
50mm 75mm 100mm Custom
Place of Origin :
CHINA
Visibility Level :
Near-Invisible (Slim 1.5mm Cable) Low Profile (Standard 2.0mm Cable) Visible Architectural Grid (3.0mm Cable)
Brand Name :
HUIHAO KASITE
Material Grade :
AISI 304 AISI 316 AISI 316L
Description
Discreet Invisible Stainless Steel Cable Trellis for Modern Facades – Plant Support Net Green Wall Climbing Mesh AISI 304/316
Nearly invisible stainless steel cable trellis system designed for modern building facades and vertical green walls. Made from AISI 304 or marine-grade 316 stainless steel with slim wire rope or ferrule-joined diamond mesh, this discreet plant support net provides minimal visual impact while offering strong climbing support for ivy, jasmine, wisteria and other facade greenery. Customizable cable diameter (1.5-3mm), grid spacing (50-200mm), and panel size. Corrosion-resistant, low maintenance, includes wall standoff brackets, turnbuckles and tension fittings - ideal for architectural green facades, residential or commercial living walls.
Key Features & Benefits
  • Virtually Invisible Design - Ultra-thin stainless steel cables (as slim as 1.5-2.0mm) blend into the background; the trellis "disappears" once plants establish, preserving clean modern façade lines.
  • Premium Stainless Steel (AISI 304 / 316 / 316L) - Marine-grade 316 recommended for coastal or humid climates; rust-proof, UV-stable, maintenance-free for decades.
  • Wall Standoff Brackets (50-100mm) - Keeps climbing plants away from the wall for healthy airflow, prevents moisture buildup on façade surfaces.
  • Flexible Grid Layout - Square, rectangular, fan or custom cable pattern; expandable modular system to cover any wall dimension.
  • High Load Capacity - 7*7 or 7*19 stainless steel wire rope supports mature vines, wet foliage and snow loads when properly tensioned.
  • Complete Hardware Kit Option - Includes wall anchors, cross clamps/cable crimps, turnbuckles, end fittings - or mesh panel version with perimeter tension cable.
  • Project Customization - Cable spacing, panel size, bracket offset and finish (satin/polished) tailored to architect or landscape drawings; CAD support available.
Typical Specifications
Parameter Options
Material AISI 304 / 316 / 316L Stainless Steel
Cable Structure 7*7 or 7*19 wire rope (for Ø≥3mm)
Cable / Wire Diameter 1.2mm / 1.5mm / 2.0mm / 2.4mm / 3.0mm
Mesh / Grid Spacing 50*50 / 75*75 / 100*100 / 150*150 / 200*200 mm (custom)
Panel / Run Length Custom cut; individual cable runs up to 30m+
Wall Standoff Distance 50mm / 75mm / 100mm (or custom)
Surface Finish Satin (default) / Bright Polished
Breaking Strength ≈1.8 kN (Ø1.5mm) - >12 kN (Ø3.0mm) depending on spec
Applications
  • Modern commercial / residential building facade greening (living wall)
  • Climbing plant support for ivy, star jasmine, wisteria, bougainvillea, clematis
  • Rooftop garden vertical trellis & balcony green screen
  • Architectural sunscreen / decorative minimal wire grid on exterior walls
  • Indoor atrium green feature walls
Packaging & Service
Individual component kits (cable + brackets + tensioners) or prefabricated mesh panels. Wooden crate / reinforced carton packaging for overseas shipment. Mill Test Certificate & material certification available on request. Lead time: 10-25 working days depending on customization. Worldwide shipping by sea or air freight.
