Specifications
Model Number :
Stainless Steel Wire Rope Trellis System
Mounting on concrete :
With composite anchor rod M8
Certification :
ISO9001-2015
Embedment depth :
70mm
Supply Ability :
1000 square meters per 30 days
Price :
contact with us to get the lowest price
Rope style :
4mm
Delivery Time :
within 7 work days
MOQ :
10 square meters
Packaging Details :
wooden case, could be customized
Rope length :
Recommended maximum rope length
Place of Origin :
Hebei,China
Grid sizes :
min 200x300mm
Brand Name :
HUIHAOCUSTOM
Name :
Stainless Steel Wire Rope Trellis System
Description
Heavy Duty Stainless Steel Wire Rope Trellis System for Green Facades and Climbing Plants
Engineered for Strength, Designed for Nature

Transform any building facade into a breathtaking living wall with our Heavy Duty Stainless Steel Wire Rope Trellis System. Unlike flimsy plastic alternatives, this system is constructed from premium-grade 316 stainless steel, offering unmatched durability and load-bearing capacity for even the most vigorous climbing plants.

Whether you are greening a residential wall or a large-scale commercial facade, our modular design ensures a seamless fit. The system supports everything from delicate ivy to heavy grapevines, creating a natural insulation layer that reduces energy costs while enhancing biodiversity.

Key Features
  • Marine-Grade Durability: Made from AISI 316 stainless steel, resistant to rust and extreme weather
  • High Load Capacity: Engineered to support dense foliage and mature plant weight
  • Modular Flexibility: Customizable configurations (horizontal, vertical, or diagonal) to match any architectural design
  • Low Maintenance: Self-tensioning design ensures the structure stays taut for decades
Mounting Specifications
Mounting on concrete With composite anchor rod M8
Embedment depth 70 mm
Reduced load capacity On substrates other than concrete

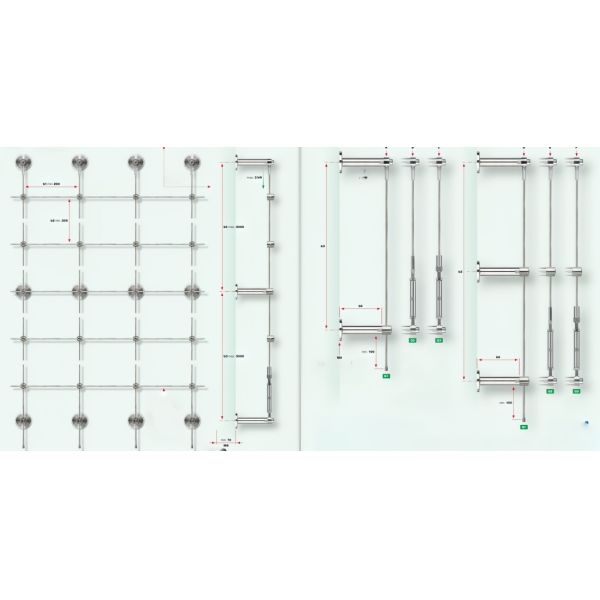

Grid sizes (b1 x b2) Min. 200 x 300 mm
Rope length Recommended maximum rope length
Description Number of ropes Rope style Thread size Illustration key Drill hole diameter (mm) Max. assembly length (m) Min. (m) Max. (m)
Fully threaded rods with forged screw heads, galvanized 2 4 mm G1 A 100 3000 8 24
Fully threaded rods with forged screw heads, galvanized 2 4 mm G1 B 100 3000 8 24
Fully threaded rods with forged screw heads, galvanized 2 4 mm G3 C 100 3000 8 24
Fully threaded rods with forged screw heads, galvanized 3 4 mm G1 D 100 6000 8 24
Fully threaded rods with forged screw heads, galvanized 3 4 mm G2 E 100 6000 8 24
Fully threaded rods with forged screw heads, galvanized 3 4 mm G3 F 100 6000 8 24
