Specifications
Brand Name :
Kaiheng Wire Mesh
Model Number :
kh156
Certification :
ISO9001
Place of Origin :
Hebei,China
MOQ :
negotiation
Price :
real-time quotes
Payment Terms :
T/T, Western Union, D/A, L/C, MoneyGram
Supply Ability :
3000㎡ per day
Delivery Time :
1-7days
Packaging Details :
Galvanized iron sheet binding & Wooden Pallet/Steel Pallet Or As required
name :
industrial composite steel grating
color :
silver white
material :
carbon steel q235， zinc
surface :
hot dip galvanized
performance :
High strength structure, light weight and strong anti-corrosion ability
Description

Industrial Hot-Dip Galvanized Corrosion-Resistant Composite Steel Grating Customized

Customized industrial composite steel grating

name composite steel grating
color silver white
material carbon steel q235 ,zinc·
surface hot dip galvanized
performance High strength structure, light weight and strong anti-corrosion ability
standard ISO9001:2015
transportation shipping
specification as your require
packing Galvanized iron sheet binding


HDP Composite Steel Metal Grate Ceiling steel grate flooring Customized

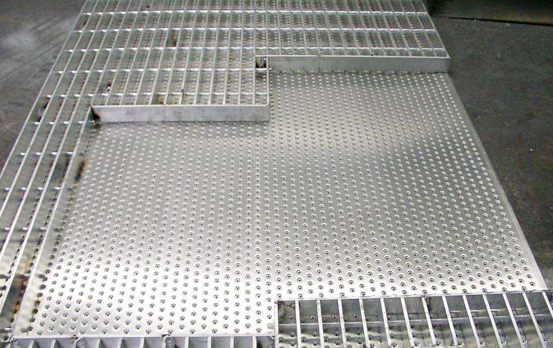

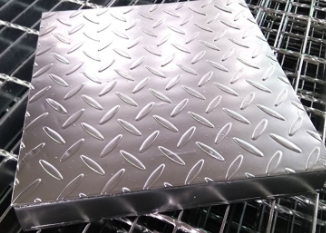

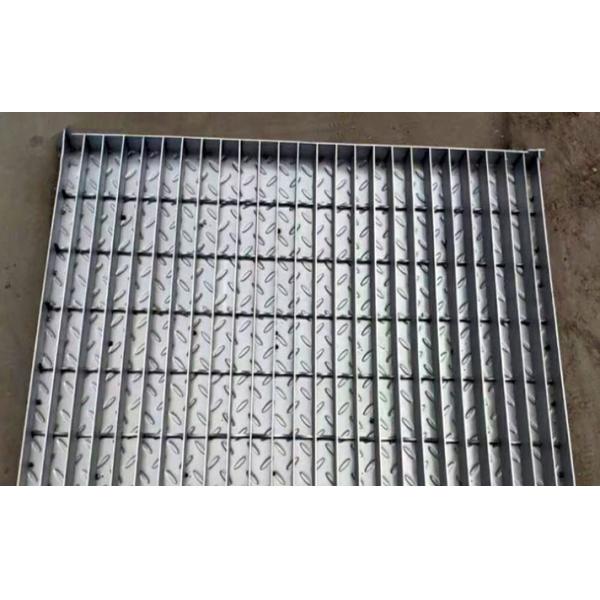

Composite steel grating is a combined steel grating welded by ordinary steel grating or plug-in steel grating and checkered plate. This steel grating is used in leak proof scenes. The covered laying of checkered steel plate can just meet this demand.
The thickness of checkered steel plate commonly used for composite steel grating is 3mm, and the specification of steel grating is G323 / 40 / 100.

HDP Composite Steel Metal Grate Ceiling steel grate flooring Customized


Characteristics of industrial composite steel grating

The composite steel grating has better bearing performance, leak proof, corrosion resistance, bright surface and beautiful atmosphere. Because the composite welded steel plate is of pattern style, it has anti-skid performance and convenient installation.

HDP Composite Steel Metal Grate Ceiling steel grate flooring Customized

Installation method of composite steel grating

HDP Composite Steel Metal Grate Ceiling steel grate flooring Customized

1. The steel grating or step plate shall be directly welded on the supporting steel structure, and the welding position shall be brushed with two coats of galvanized powder paint.

2. It is installed with a special installation clamp for multi grid steel grating, which does not damage the galvanized layer and is convenient for disassembly and assembly. Each set of mounting clamps includes an upper clamp, a lower clamp, an M8 round head bolt and a nut.

3. Stainless steel mounting clip or bolt connection and other fastening methods can be provided as required.

4. The installation clearance of steel grating is generally 100mm.

5. When installing the grating, be sure to add the rubber pad firmly to prevent it from loosening or falling off. When installing the grating, pay attention to the reliable installation of the rubber pad.
