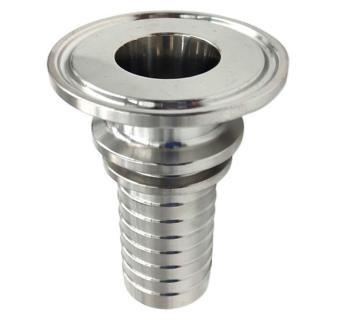

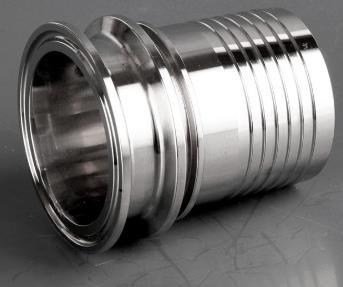

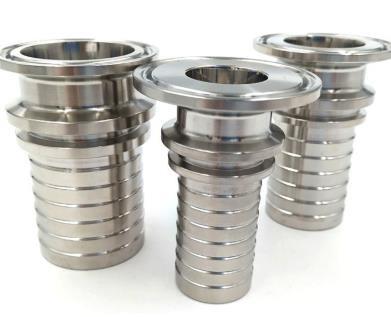

DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank
Specifications
Brand Name :
NL
Model Number :
TC-DIN
Certification :
Standard
Place of Origin :
China
MOQ :
50 Piece/Pieces (Min. Order)
Price :
$10.92 - $108.56 / Piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Piece/Pieces per Week
Delivery Time :
Quantity(Pieces) 1 - 50 Est. Time(days) 10
Packaging Details :
Standard packing. If you have any special requirement, please tell us in time. Selling Units: Single item Single package size: 20X20X20 cm Single gross weight: 20.000 kg
Type :
Tri-clamp
Pipe Size :
10mm15mm20mm25mm32mm40506580150mm100200mm
Material :
SS316L
Technics :
Forged
Connection :
Clamp
Shape :
Equal
Head Code :
Round
Fitting Standard :
DIN
Remark :
Can be customized
Description

Fitting standard: DIN.
Other fitting standards such as 3A, SMS, ISO etc can also be available.
Other materials are available.

Remark: Can be customized.

Part no. Material Standard Size For hose Dish OD Dish ID
mm
TC010S6L-DIN SS316L DIN 10 13 34 9/10
TC015S6L-DIN SS316L DIN 15 16 34 15/16
TC020S6L-DIN SS316L DIN 20 19 34 19/20
TC025S6L-DIN SS316L DIN 25 25 50.5 25/26
TC032S6L-DIN SS316L DIN 32 32 50.5 31/32
TC040S6L-DIN SS316L DIN 40 38 50.5 37/38
TC050S6L-DIN SS316L DIN 50 50 64 49/50
TC065S6L-DIN SS316L DIN 65 63 91 66
TC080S6L-DIN SS316L DIN 80 75 106 81
TC100S6L-DIN SS316L DIN 100 100 119 100
TC125S6L-DIN SS316L DIN 125 125 155 125
TC150S6L-DIN SS316L DIN 150 150 183 150
TC200S6L-DIN SS316L DIN 200 200 233.5 200

DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank

Packaging & Shipping

DIN 10mm Stainless Steel Hose Couplings Ss Tri Clamp With Toothed Shank

FAQ

1. Are you manufacture?

We started business from trading, but now we have invested and holded several factory in china.

2. Can you ship to my country?

We can ship to all the countries around the world by air or sea.

3. How much is the shipping charge to my country?

It depends on your country located and the weight of goods.

4. What's the price term?

EXW, FOB, CIF, CFR

5. What's your payment?

T/T, L/C, Western Union
