Specifications
Brand Name :
GMC
Certification :
CE and Patent Certificate
Place of Origin :
China
Voltage :
Customized
After-Sales Service Provided :
Online Support, Field Installation, Commissioning And Training, Video Technical Support, Engineers Available To Service Machinery Overseas
Punching Device :
Included
Punching Type :
Gantry
Type :
Steel Frame & Purlin Machine
Control :
PLC
Packaging Details :
Customized packaging
MOQ :
Negotiation
Price :
Negotiation
Delivery Time :
70 days
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5-500 set a year
Description

Roll Forming Machine for Corrugated Sheet

heet roll forming machine is designed to manufacture high quality corrugated sheet, and the finished product has smooth and exquisite appearance. The corrugated sheet is widely used to build up roofs of industrial and civilian buildings, such as workshop, warehouse, hangar, gymnasium, theatre, engine house, exhibition hall, etc. In addition, this machine can be particularly designed when relevant drawings are provided.

Features
1. The feeding width includes 1000mm, 1200mm and 1250mm. So, steel coils that are bought from the raw material market could be processed by this machine without slitting treatment.

2. This corrugated sheet roll forming machine is a mature product, and it could work with curving machines.

Processing Flow
Passive decoiling → guided material feeding → roll forming → cut-to-length → offloading

Composition

1. 5T passive decoiler

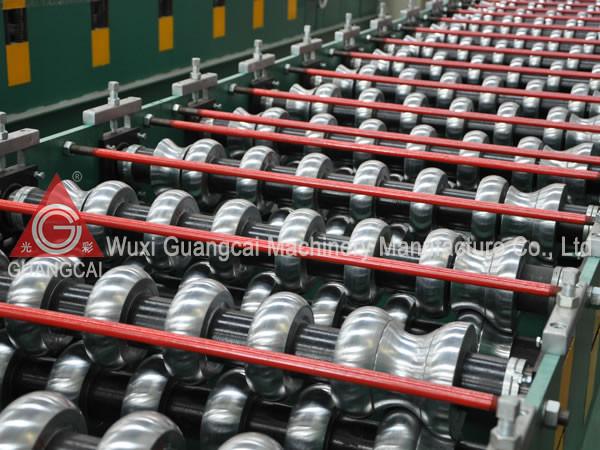

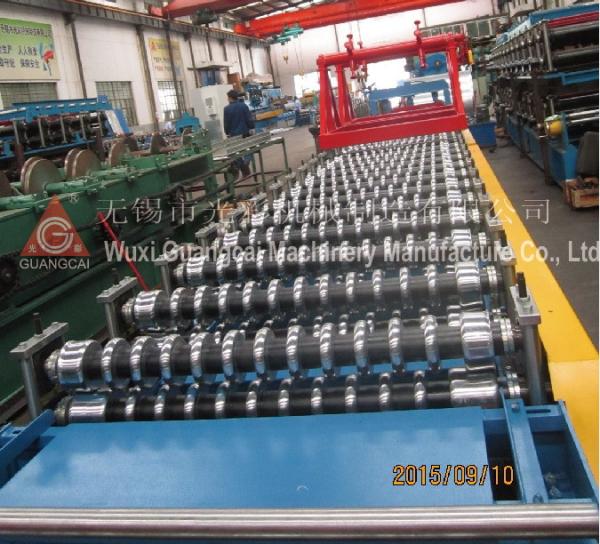

2. Shape forming machine

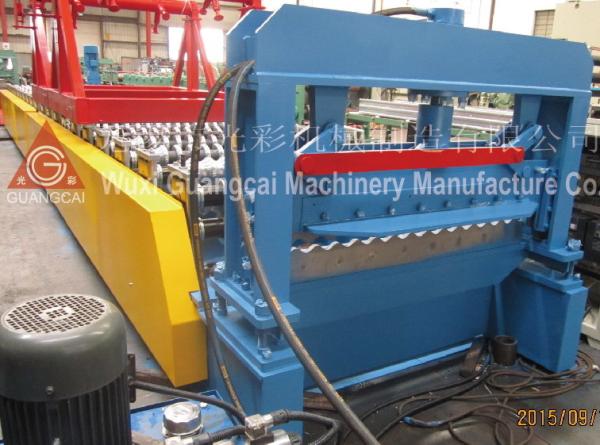

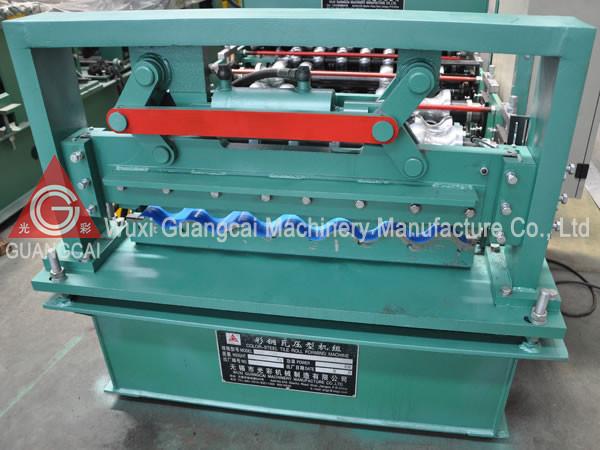

3. Hydraulic shear

4. Hydraulic station
5. PLC control cabinet
6. Run out table

Specifications

Model GWC18-76-988 GWC30-130-800 Note
Applicable material Color plate, galvalume sheet, aluminum plate and high-strength low-alloy steel plate This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1000mm
Processing thickness 0.3-0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 7.5kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 20
Forming speed 5-15 meters/minute
Machine dimensions 11×1.3×1.2m 9×1.3×1.2m
Machine weight 7T 9T
