Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters
Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters
Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters
Large Span Steel Structure Agricultural Greenhouse with High Strength Steel Frame and Modular Customizable Design up to 30 Meters
Specifications
Brand Name :
Shunyao Supply Chain
Place of Origin :
Chengdu , China
MOQ :
100 PCS
Price :
$40-200
Payment Terms :
T/T
Supply Ability :
Excellent
Delivery Time :
5-15 days
Packaging Details :
Bundles
Installationtime :
Typically 2-4 weeks
Structure Type :
High Strength Steel Structure Frame
Roof And Wall :
Steel Sheet Or Sandwich Panel
Corrosionresistance :
Galvanized or painted coating
Fireresistance :
Fire-resistant steel grade
Structuraldesign :
Modular and customizable
Wind Resist :
Design as exect data, max to 250km/h
Loadbearingcapacity :
High
Buildingtype :
Commercial/Industrial/Residential
Flange Width :
50-300mm
Secondary Structure :
Purlin; Brace; Knee Brace etc
Spanwidth :
Up to 30 meters without internal columns
Raw Steel Material :
Q235B, Q355B, ASTM A36
Building Structure Type :
Light Steel Structure
Frametype :
Prefabricated steel frame
Description
Large-Span Steel Structure Agricultural Greenhouse
Modern integrated factory solution for breeding, storage, and agricultural production
Product Overview
This large-span steel structure agricultural greenhouse features a high-strength steel main body with exceptional stability and optimal space utilization. Designed for modern breeding operations, agricultural product storage, and multi-functional agricultural production, the building offers flexible configurations that can be customized to meet specific project requirements across different regions and farm scales.
  • High-quality steel construction with excellent wind, snow load, and corrosion resistance
  • Multiple roofing and wall material options including colored steel sheets, daylighting panels, or insulated composite panels
  • Superior daylighting, ventilation, and thermal insulation for stable breeding and storage environments
  • Spacious column-free or minimal-column interior design for large equipment access and mechanized operations
  • Modular construction with short installation periods and reduced construction/maintenance costs
Applications
Ideal for livestock and poultry breeding (cattle sheds, pig houses, poultry houses), agricultural machinery and feed storage, agricultural product processing, and modern agricultural park construction. This solution combines practicality, durability, and cost-effectiveness.
Technical Specifications
Product Name Large Span Steel Structure Agricultural Greenhouse
Building Type Steel Structure Agricultural Building
Application Livestock Farming / Storage / Agricultural Processing
Structure Form Portal Frame Steel Structure
Design Service Life ≥25 Years
Design Standard According to Local Building Codes
Span Width 18m / 24m / 30m / 36m (Customized)
Building Length Unlimited (Modular Extension)
Eave Height 4–8 m (Customized)
Ridge Height 6–10 m (Customized)
Column Spacing 6 m / 7.5 m / 9 m
Internal Space Large clear span, column-free or minimal columns
Main Frame H-section Steel (Q235B / Q355B)
Secondary Frame C / Z Purlins
Connection Type High Strength Bolts
Surface Treatment Hot-dip Galvanized / Anti-rust Painting
Fabrication Factory Prefabrication
Material Options
Roof Material Color Steel Sheet / Insulated Sandwich Panel
Wall Material Color Steel Sheet / Sandwich Panel
Insulation Material Rock Wool / PU / EPS
Skylight FRP / PC Sheet
Ventilation Natural Ventilation / Ridge Ventilator

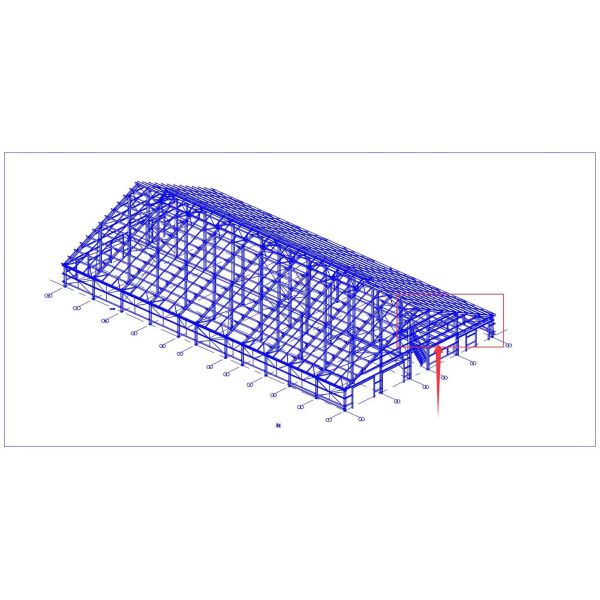

Design Structure Diagram
