Specifications
Brand Name :
Shunyao Supply Chain
Model Number :
Steel formwork
Certification :
IS0
Place of Origin :
Chengdu , China
Payment Terms :
T/T in advance
Delivery Time :
5-15 days
MOQ :
100 PCS
Packaging Details :
Bundles
Supply Ability :
Excellent
Price :
$40-200
Loadbearingcapacity :
High
Structure :
Frame
Structure Type :
Steel Frame Building
Sustainability :
Recyclable
Life Span :
Around 30~50 Year
Application :
Industrial/Commercial
Designflexibility :
High
Using Life :
50 Years
Constructionspeed :
Fast
Labor Costs :
Lower
Connection :
Bolts
Costefficiency :
Cost-effective compared to concrete
Seismicresistance :
Good
Product :
Steel Structure
Thickness Of Panel :
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Description
Anti-Corrosion Steel Frame Structure for Modern Concrete Pouring Projects

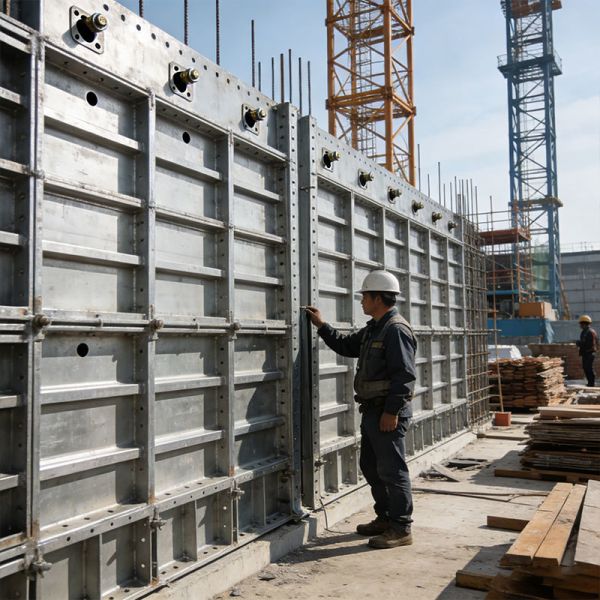

Steel wall formwork is a specialized modular system developed for modern concrete pouring projects, specifically designed for high-precision forming construction of vertical structures such as building shear walls and retaining walls. The product uses 8mm high-strength wear-resistant steel plates combined with H-beam reinforced frames and undergoes overall hot-dip galvanizing treatment to ensure excellent stability and durability in various construction environments.
Core Technical Parameters
  • Standard Panel Sizes: 1200*3000mm / 1500*3600mm
  • System Stiffness: Maximum deflection ≤ L/600 (L is the panel span)
  • Lateral Pressure Resistance: ≥ 100kN/m², suitable for C70 concrete pouring
  • Forming Accuracy: Wall surface flatness ≤ 1.5mm/2m
  • Service Life: Up to 800 cycles under normal construction conditions
Core Product Advantages
  • Intelligent Construction: Integrated hydraulic automatic alignment system, installation time per panel ≤ 2 minutes, work efficiency increased by 3 times
  • Millimeter-Level Precision: Manufactured using five-axis CNC machining center, panel joint deviation ≤ 0.5mm
  • Exceptional Durability: Special anti-corrosion coating combined with galvanizing treatment, suitable for -40℃ to 150℃ environments
  • Safety and Intelligent Monitoring: Built-in distributed sensor network for real-time monitoring of pouring pressure and deformation data
Innovative Technical Features
  • Adaptive Adjustment Mechanism: Hydraulic synchronization system enables continuous height adjustment from 2.8 to 6.0m
  • Zero-Leakage Sealing System: Four-layer composite seal design ensures no leakage throughout the pouring process
  • Intelligent Temperature Control Module: Phase-change material insulation layer ensures concrete curing quality in low-temperature environments
  • Digital Twin Interface: Supports deep integration with BIM systems for fully digital construction management
Professional Application Areas
  • Core tubes of super high-rise buildings (compatible with hydraulic climbing formwork systems)
  • Protective walls of nuclear facilities
  • Seepage prevention walls for large hydraulic structures
  • Standardized construction of underground utility tunnels
  • Production lines for prefabricated components in modular buildings
Product Specifications
Material Steel, stainless steel
Application Concrete construction
Feature Easy to assemble, high strength, reusable
Warranty 2 Years
Design Style Modern
After-sale Service Online Technical Support, Onsite Installation, Project Solution Capability
Capability 3D model design, graphic design
Place of Origin Chengdu, China
Brand Name Shunyao Supply Chain Steel Frame
Attachment U-bolt, bolts, and nuts
Color Customer Requirements
Size Customer Requirements
Variety Steel formwork system
Type Steel formwork for concrete construction
