Specifications
MOQ :
100 PCS
Payment Terms :
T/T in advance
Place of Origin :
Chengdu , China
Brand Name :
Shunyao Supply Chain
Packaging Details :
Bundles
Delivery Time :
5-15 days
Supply Ability :
Excellent
Price :
$40-200
Size :
Customized
Thermalinsulation :
Good
Maintenancerequirement :
Low
Durability :
Long-lasting
Corrosionresistance :
High
Frame Type :
Portal Frame
Design Software :
PKPM, Tekla structures, CAD
Designflexibility :
High
Sand Blasting :
Sa 2.5
Structure Type :
Steel Frame Building
Material Grade :
Q355B, Q235B
Life Span :
Around 30~50 Year
Sustainability :
Eco-friendly
Thickness Of Panel :
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Spanlength :
Up to 30 meters
Installationmethod :
Bolt-connected assembly
Customization :
Customized Logo: Min. Order: 5000
Corrosionprotection :
Galvanized steel with anti-rust coating
Crane :
Without Or From 1Ton ~300Ton
Insulation :
Optional thermal and sound insulation
Warranty :
5 Years
Keyword :
Building Steel Structure
Fireresistance :
Fireproof coating available
Transportation :
Containerized
Spanwidth :
Customizable, typically 10-40 meters
Steel Grade :
Q355B/ Q235B
Package :
Steel pallet
Structuraldesign :
Modular and customizable
Description

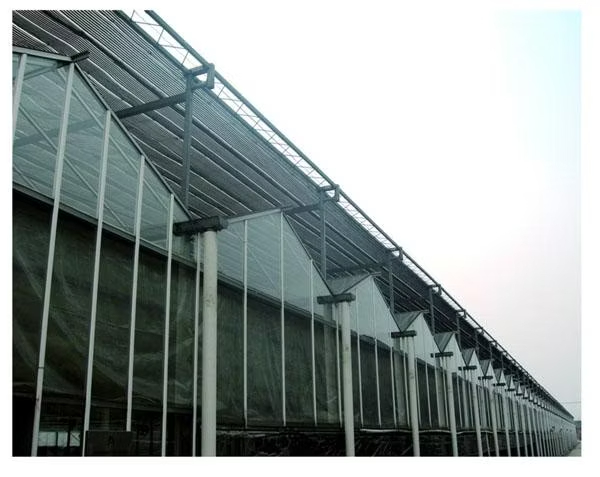

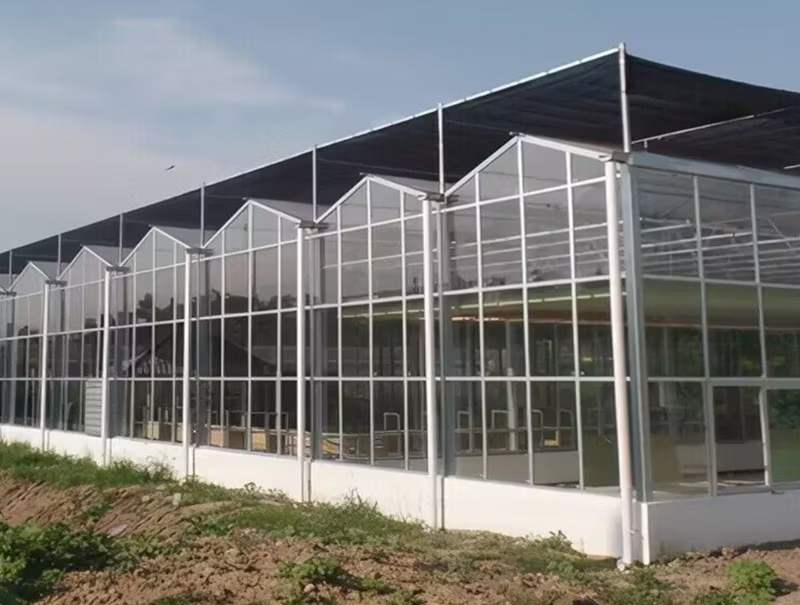

Large Span Steel Frame Greenhouse for Agricultural Seedling Production
Introduction

Optimize your agricultural production with our Large Span Steel Frame Greenhouses, specifically engineered for professional seedling nurseries and high-yield cultivation. Unlike traditional structures, our steel frame building system utilizes a column-free design (up to 30m span), providing maximum interior space for automated sprinkler systems and rolling benches. Built to withstand high humidity, every component of the steel frame undergoes a rigorous hot-dip galvanization process, ensuring superior rust resistance and a lifespan of over 20 years in moist agricultural environments.

Key Features
  • Robust Steel Frame Structure: Fabricated from high-quality Q235/Q355 carbon steel with industrial-grade galvanization (275g/m² zinc coating), preventing corrosion from humidity and fertilizers.
  • Maximized Light Transmission: The scientifically designed steel frame minimizes shadow areas, ensuring seedlings receive uniform sunlight for consistent growth.
  • Column-Free Efficiency: The large clear span design eliminates internal obstacles, allowing for the unrestricted movement of tractors, AGVs, and boom irrigation systems.
  • Customizable Environmental Control: The sturdy steel frame easily supports heavy equipment like cooling pads, exhaust fans, and automated shading screens.
Parameter Specification
Structure Type Prefabricated Steel Frame (Truss or Arch style)
Main Material Hot-dip Galvanized Steel Pipe / H-Beam
Steel Grade Q235B / Q355B (Standard Structural Steel)
Span Width 9.6m / 10.8m / 12m / 16m (Multi-span available)
Column Spacing 4m / 8m (Customizable based on load)
Wind Load ≥ 0.50 KN/m² (Up to 120 km/h)
Snow Load ≥ 0.35 KN/m²
Service Life Steel Frame: 20+ Years
Component Material / Process Key Benefit
Steel Frame Coating Hot-dip Galvanizing (Inside & Outside) Zinc layer thickness ≥ 60µm; No rust in high humidity.
Roof Covering 150/200 micron PO Film or Glass Anti-drip, Anti-fog, High light transmission (>90%).
Connectors Galvanized Bolts & Aluminum Profiles High strength connection without welding points (prevents rust).
Gutter System Galvanized Steel Plate (2.0mm) Large capacity for efficient rainwater drainage.
System Name Function Supported by Steel Frame?
Internal Shading Controls light intensity for delicate seedlings Yes (Hanging load supported)
Cooling System Wet pad & fan system for temperature control Yes (Frame reinforced for fans)
Irrigation Boom sprinkler / Mist system Yes (Suspended from truss)
Seedling Bench Rolling bench / Ebb and flow table Compatible (Floor space optimized)
