Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Custom Q235B Column Steel Formwork For Columns And Walls Reusable
Specifications
Brand Name :
Shunyao Supply Chain
Model Number :
Steel Formwork
Certification :
IS0
Place of Origin :
Chengdu , China
Payment Terms :
T/T in advance
Delivery Time :
5-15 days
MOQ :
100 PCS
Price :
$60-200
Supply Ability :
Excellent
Packaging Details :
Bundles
Material :
Q235B
Size :
Customized
Warranty service :
1 year
Application :
Concrete construction
Product line :
Alien Custom Series
Characteristics :
Stable and secure
Description

Core Material
Manufactured with national-standard Q235B structural steel plates (thickness 4–6 mm), combined with No. 8–10 channel steel rib reinforcement to ensure stable formwork structure and high load-bearing capacity. All welded joints undergo ultrasonic testing to meet industrial-grade safety standards.

Product Categories

  • Cylindrical formwork series (diameter Φ300–2500 mm)

  • Square column formwork series (side length 300–2000 mm)

  • Custom-shaped formwork series (elliptical / polygonal / variable-section)

Performance Parameters

  • Lateral pressure resistance: ≥ 85 kN/㎡

  • Verticality tolerance: ≤ 2 mm / 2 m

  • Surface flatness: ≤ 1.5 mm

  • Standard reuse cycles: over 600 times

Key Features

  • Precision forming: Laser cutting + CNC bending processes achieve millimeter-level assembly accuracy

  • Fast construction: Patented buckle connection system improves formwork installation efficiency by 70%

  • Durable & economical: Hot-dip galvanizing ensures a service life of up to 10 years, reducing overall costs by 50%

  • Smart compatibility: Modular design supports height combinations and a matching 3D adjustable support system

Main Applications

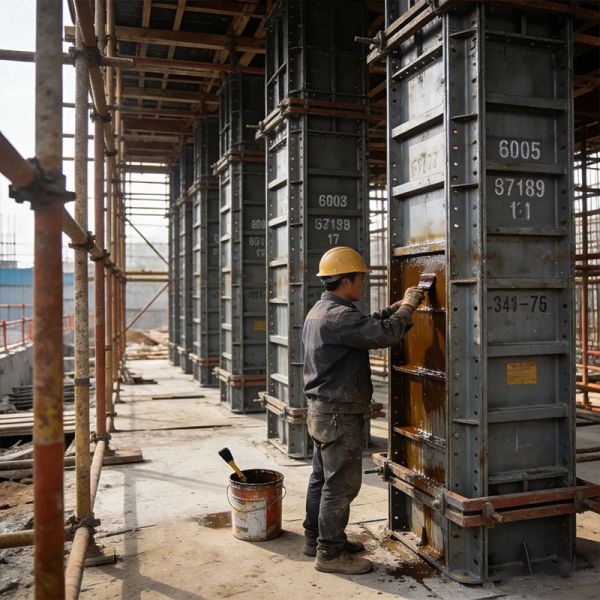

Suitable for cast-in-place concrete scenarios such as super high-rise core tube columns, bridge piers, industrial building columns, and subway station columns; especially ideal for fair-faced concrete projects with high quality requirements.

Service Support
Provides full-cycle services including BIM modeling and pre-assembly, on-site technical guidance, and rapid customization response (7–15 days delivery), ensuring both construction quality and schedule compliance.

Place of origin Chengdu, China Brand Shunyao Supply Chain Steel Frame
Model Steel Formwork Warranty service 1 year
Material Iron, steel, stainless steel Application Scenario Hotel
Certificate ISO Size Customized
Scope of use Buildings/Bridges/Tanks/Tunnels/Roads Cylindrical steel formwork Supply
Steel beam formwork Supply Feature Adjustable size, reusable, high strength
Advantage Quick installation, saving labor and time
