30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
Specifications
MOQ :
100 PCS
Payment Terms :
T/T in advance
Place of Origin :
Chengdu , China
Brand Name :
Shunyao Supply Chain
Packaging Details :
Bundles
Delivery Time :
5-15 days
Supply Ability :
Excellent
Price :
$60-200
Certification :
CE,ISO
Load capacity :
Up to 500 kg/m²
Platform type :
Wooden planks or Metal decks
Height :
Customizable, up to 30 meters
Material :
Steel or Aluminum
Assembly type :
Modular or Fixed
Finish :
Galvanized or Painted
Weight :
Varies depending on customization
Width :
2 meters
Length :
Customizable, based on project requirements
Safety features :
Guardrails, Toe boards, Non-slip surfaces
Max Platform Height :
28 - 30 Meters
Tube Diameter :
Φ 50.8mm
Tube Thickness :
2.0mm - 2.5mm
Surface Treatment :
Epoxy polyester powder coating
Platform Load Capacity :
200kg/m²
Platform Dimensions :
1350mm * 2000mm/2500mm
Castor Wheels :
8-inch/10-inch Heavy-duty polyurethane (PU) wheels with dual brakes
Loadcapacity :
5 tons
Raw Steel Material :
Q235B, Q355B, ASTM A36
Description
Painted Aluminium Movable Scaffolding 30 Meters For Construction
Product Overview
Product Name: 30-Meter Industrial Painted Aluminum Movable Scaffolding System
Height Grade: 30 Meters (Maximum Working Height)
Material & Craftsmanship: High-strength aviation-grade aluminum alloy (6061-T6) + Outdoor powder coating/painted finish
Engineered for ultra-high-rise building maintenance, large-scale industrial plant construction, and aerospace maintenance. While maintaining the lightweight advantages of aluminum alloy, the professional painted surface treatment significantly enhances the scaffolding's anti-corrosion lifespan in coastal high-salt fog environments or acid rain climates. Its modular design ensures outstanding structural rigidity even at a height of 30 meters, striking the ideal balance between safety and efficiency for high-altitude operations.
Technical Specifications
Key Parameters Technical Details
Max Platform Height 28 - 30 Meters
Tube Diameter & Thickness Φ 50.8mm / Thickness 2.0mm - 2.5mm
Surface Treatment Epoxy polyester powder coating (Colors customizable)
Platform Load Capacity 200kg/m² (Compliant with EN1004 Class 3 load standards)
Platform Dimensions Double Width (1350mm * 2000mm/2500mm)
Castor Wheels 8-inch/10-inch Heavy-duty polyurethane (PU) wheels with dual brakes

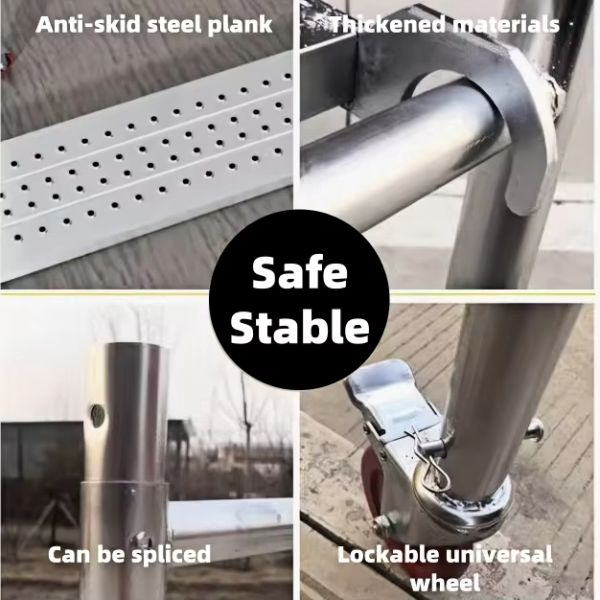

Safety Accessories Guardrails, toe boards, anti-slip platform decks, diagonal braces, horizontal braces
Stabilization Devices 4 Heavy-duty telescopic outriggers + Wall tie-in components

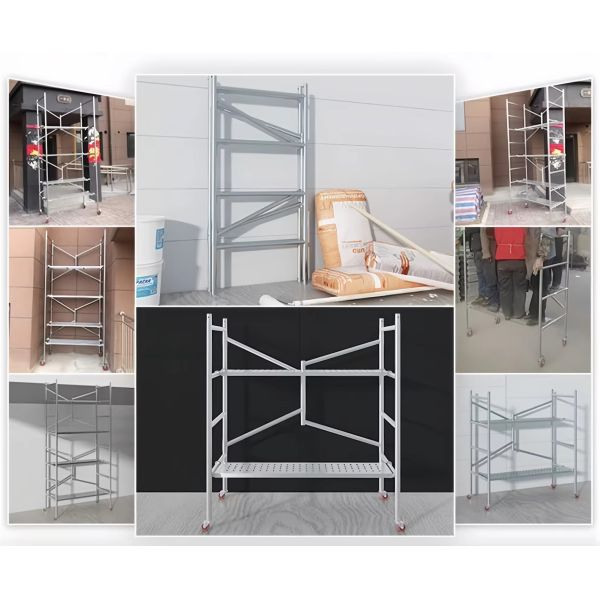

Product Images
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity 30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
Transportation
30 Meters Height Corrosion Resistant Aluminum Movable Scaffolding System with High Load Capacity
