Hot-Dip Galvanized Steel Multi-Span Commercial Greenhouse with Customizable Dimensions and Wind Resistance
Hot-Dip Galvanized Steel Multi-Span Commercial Greenhouse with Customizable Dimensions and Wind Resistance
Hot-Dip Galvanized Steel Multi-Span Commercial Greenhouse with Customizable Dimensions and Wind Resistance
Hot-Dip Galvanized Steel Multi-Span Commercial Greenhouse with Customizable Dimensions and Wind Resistance
Specifications
Designflexibility :
Customizable dimensions and layouts
Length :
Customizable
Structure Type :
Frame
Shipment By :
Container
Main Framework :
Hot-dip galvanized Q235 steel
Structure Connection :
Steel Structure Frame Bolted
Wall Cladding :
Sanwich Panel, single sheet
Structure Connection :
Steel Structure Frame Bolted
Price :
$1300-3000
Insulation :
Optional
Wind Resistance :
Depends on the design
Warranty :
2 Years
Transportation :
Containerized
Thickness Of Panel :
50mm, 75mm, 100mm, 150mm, 200mm, 250mm
Foundationtype :
Concrete Slab
Maintenancerequirement :
Low
Dimension :
Customers' Requirement
Standard Span :
8m - 12m
Place of Origin :
Chengdu , China
Brand Name :
Shunyao Supply Chain
Packaging Details :
Customized based on project
Delivery Time :
30-60 Days
Supply Ability :
15000 Tons
MOQ :
1 PCS/20 Tons
Payment Terms :
T/T in advance,L/C,D/A,D/P,T/T
Height Limit :
Up to 30 meters
Structuretype :
Frame
Heightlimit :
Up to 30 meters
Foundation Type :
Concrete Slab
Certification :
CE,ISO
Standard Bay :
4m - 8m
Gutter Height :
4m - 6m
Description

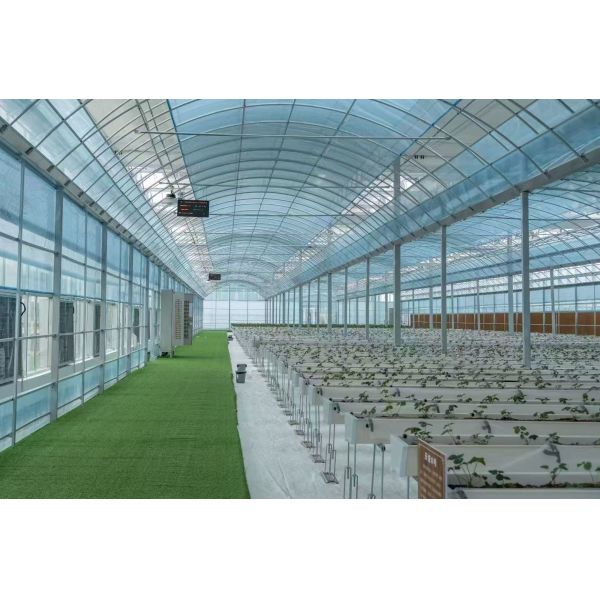

High-Performance Multi-Span Commercial Greenhouse
Product Overview

Designed for modern, high-yield agriculture, our Multi-Span Commercial Greenhouse offers a perfect balance of durability, cost-efficiency, and precise climate control. Engineered with a robust hot-dip galvanized steel frame, this structure supports flexible covering options including durable PO/PE film for the roof and tempered glass or PC board for the sidewalls.

Whether you are operating a large-scale hydroponic farm, an agricultural seedling base, or a smart eco-agricultural park, this turnkey solution provides an optimal growing environment resistant to harsh external climates.

Hot-Dip Galvanized Steel Multi-Span Commercial Greenhouse with Customizable Dimensions and Wind Resistance
Key Advantages
  • Robust Structural Integrity: Built with Q235 hot-dip galvanized steel (Main column: 120×120×2.5mm). Rust-resistant and engineered to withstand heavy wind and snow loads, ensuring a lifespan of over 15-20 years for the framework.
  • Intelligent Climate Control: Equipped with a centralized electrical control panel (380V). Easily manage internal microclimates with automated exterior/interior shading systems and rack-and-pinion ventilation windows.
  • Advanced Cooling & Ventilation: Features industrial-grade axial flow fans (44,500m³/h capacity) and aluminum alloy cooling pads. Highly effective for maintaining optimal temperatures in hot climates like the Middle East and Africa.
  • Space-Optimized Interior: The multi-span design eliminates internal physical barriers, maximizing land usage. Perfectly accommodates custom raised hydroponic seedbeds and automated irrigation/fogging systems.
Technical Specifications
System / Component Parameter / Description
Greenhouse Type Multi-Span Arch-Roof / Hybrid Venlo-style
Main Framework Hot-dip galvanized Q235 steel (Square tube & Aluminum alloy truss)
Standard Span & Bay Span: 8m - 12m | Bay: 4m - 8m (Customizable)
Height Gutter Height: 4m - 6m | Total Height: 5m - 7.5m
Roof Covering 150-200 Micron Anti-Drip PO/PE Film (High light transmission)
Wall Covering 5mm Tempered Glass or High-impact PC Sheet
Shading System External (85% shading rate) & Internal (65% Aluminum foil)
Ventilation Rack and pinion motorized roof/side continuous vents
Cooling System Wet pad & Exhaust fan system (with 1.5kw pump & PVC drainage)
Optional Add-ons Hydroponic seedbeds, Fogging systems, LED grow lights
Why Partner With Shunyao?

At Sichuan Shunyao Supply Chain Management Co., Ltd., we don't just sell materials; we deliver comprehensive agricultural infrastructure. From structural calculation and 3D design to the export of full-set containerized materials (flat-pack ready), our engineering team ensures your project is executed flawlessly, no matter your global location.
