Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings, High Load Capacity (Up to 5 tons) and EN 74 Standards Compliance for Steel Tube Support
Specifications
Brand Name :
Shunyao Supply Chain
Model Number :
YH180
Certification :
IS0
Place of Origin :
Chengdu , China
Payment Terms :
T/T in advance
MOQ :
100 PCS
Packaging Details :
Bundles
Delivery Time :
5-15 days
Supply Ability :
Excellent
Price :
$5-15
Temperaturerange :
-40°C to 120°C
Reusability :
Yes
Size :
48.3 mm diameter
Installationmethod :
Manual tightening
Standardscompliance :
EN 74
Finish :
Galvanized
Corrosionresistance :
High
Loadcapacity :
Up to 5 tons
Connectiontype :
Bolt and nut
Weight :
0.5 kg per piece
Type :
Coupler
Material :
Steel
Productname :
Scaffolding fastener
Color :
Silver
Application :
Scaffolding assembly
Description

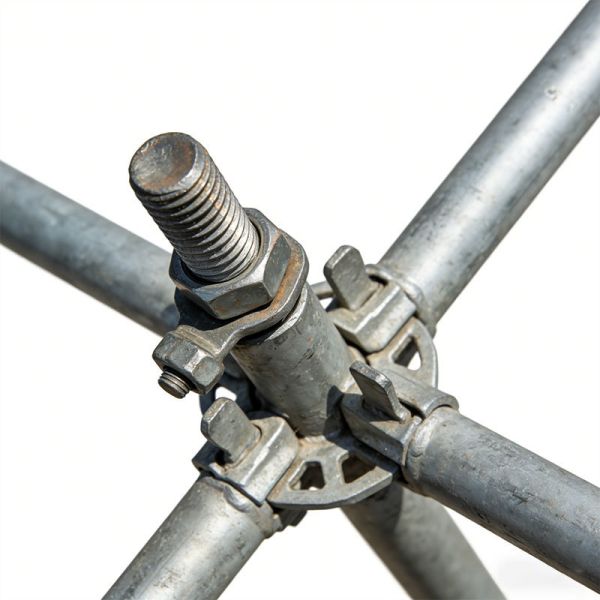

Structural Steel Scaffolding Fastener with Triple Corrosion Resistant Coatings
Scaffold fasteners are the core safety components connecting steel tube support systems in modern construction. Manufactured from high-strength alloy cast iron (KTZ-450) or special structural steel, these fasteners undergo a triple anti-corrosion process of hot-dip galvanization, chromate passivation, and epoxy coating. This ensures exceptional durability and reliability in extreme conditions including marine climates and chemical environments.
Core Technical Specifications
  • Right-angle clamps: Symmetrical double-T bolt locking design with anti-slip load capacity ≥14kN and torsional stiffness up to 45N·m/°, eliminating micro-slip issues found in traditional fasteners
  • Rotational clamps: 360° stepless adjustment system with self-aligning spherical washers and torque resistance ≥40N·m, adaptable for connections at any angle from 0° to 180°
  • Butt joint clamps: Embedded tapered locking structure with tensile strength ≥5kN, achieving zero-gap axial butt joint of steel tubes
  • Cup-lock nodes: Modular eight-tooth locking disk design with single-node ultimate load ≥90kN, increasing overall system stability by three times
Intelligent Safety System
  • Visible pre-tightening management: Color-coded pressure indicator ring displays fastening status through green-yellow-red three-level warning system
  • Fail-safe redundancy design: Dual locking mechanism (mechanical lock and elastic lock) maintains over 50% load capacity even if one lock fails
  • IoT monitoring module: Optional wireless sensors monitor clamp stress, temperature, and vibration data in real time with automatic alerts for abnormal conditions
  • Smart anti-loss system: Each clamp embedded with FRID chip for bulk tracking within 30 meters using handheld terminal
Engineering Performance Breakthroughs
  • Extreme environment adaptability: Tested for low-temperature impact at -50°C and high-temperature endurance at 150°C
  • Ultra-long service life: Accelerated corrosion tests confirm 15-year service life (three times that of traditional products)
  • Installation efficiency revolution: Patented quick-install wrench enables single clamp installation in 5 seconds, improving assembly efficiency by 60%
  • Material science innovation: Nano-ceramic reinforced surface treatment increases wear resistance by 8 times
Quality Control System
Products strictly adhere to ISO9001:2015 quality management system. Each batch undergoes comprehensive testing including:
  • Spectral analysis to ensure material composition meets standards
  • Destructive testing using 300-ton hydraulic universal testing machine
  • 2000-hour corrosion resistance testing in salt spray chamber
  • Vibration table testing simulating level 8 earthquake conditions
Expanded Application Scenarios
  • Ultra-high-rise intelligent climbing scaffolds: Specialized anti-rotation clamps for hydraulic lifting systems
  • Nuclear power plant formwork systems: Radiation-resistant clamps meeting ASME nuclear standards
  • Offshore wind power platforms: Super duplex stainless steel clamps resistant to marine corrosion
  • Emergency and rescue projects: Quick-detach self-locking seismic clamp system
MaterialSteel, Q235
ApplicationApartment, Hotel
UsageConstruction Project
Warranty2 Years
Design StyleModern
After-sale ServiceOnline Technical Support, Onsite Installation
Project Solution Capability3D Model Design, Graphic Design
Place of OriginChengdu, China
Brand NameShunyao Supply Chain Steel Frame
ColorCustomer Requirements
SizeCustomer Specifications
KeywordSteel Metal Frame Structure
TypeScaffolding Coupler
