Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Specifications
Brand Name :
Shunyao Supply Chain
Place of Origin :
Chengdu , China
MOQ :
100 PCS
Price :
$5-15
Payment Terms :
T/T,in advance
Supply Ability :
Excellent
Delivery Time :
5-15 days
Packaging Details :
Bundles
Main Structure :
Galvanized Light Steel Frames
Constructionspeed :
Fast
Spanwidth :
Customizable, typically 10-40 meters
Insulation :
Optional thermal insulation
Product Insulation :
Thermal and Sound Insulation
Fire Resistance :
High
Windows :
Optional steel-framed windows
Feature :
Easy to assemble&dismentle
Design :
Custom with Free Architectural design
Designstandard :
IBC/Eurocode/GB
Productname :
Industrial Steel Frame Building
Maintenance Costs :
Reduced
Walltype :
Steel wall panels
Span :
Customizable, typically 10-30 meters
Application :
Industrial/Commercial
Description

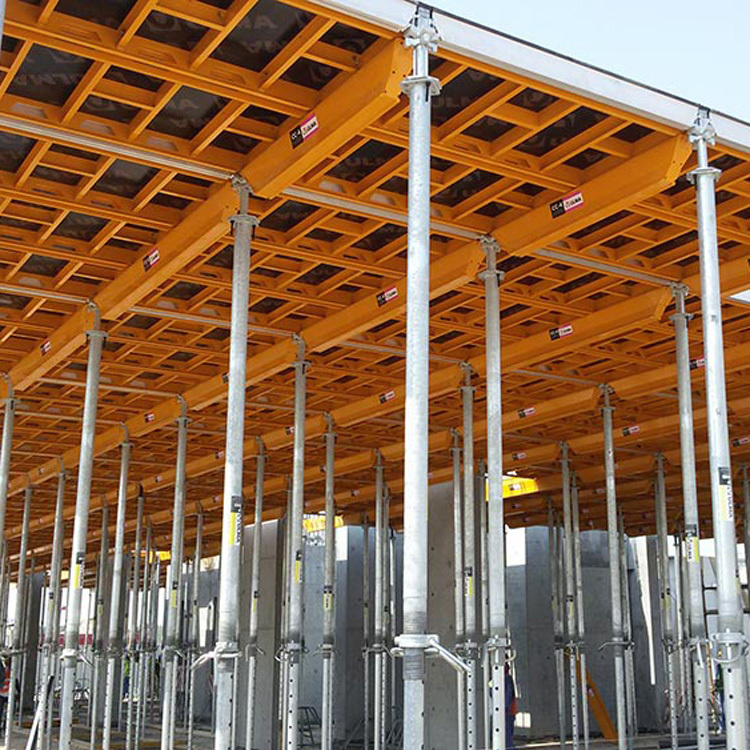

Adjustable Steel Props Scaffolding Shoring Props for Concrete Construction
Heavy Duty Adjustable Scaffolding Steel Formwork Construction Jack designed for reliable performance in concrete construction applications.
Key Features & Benefits

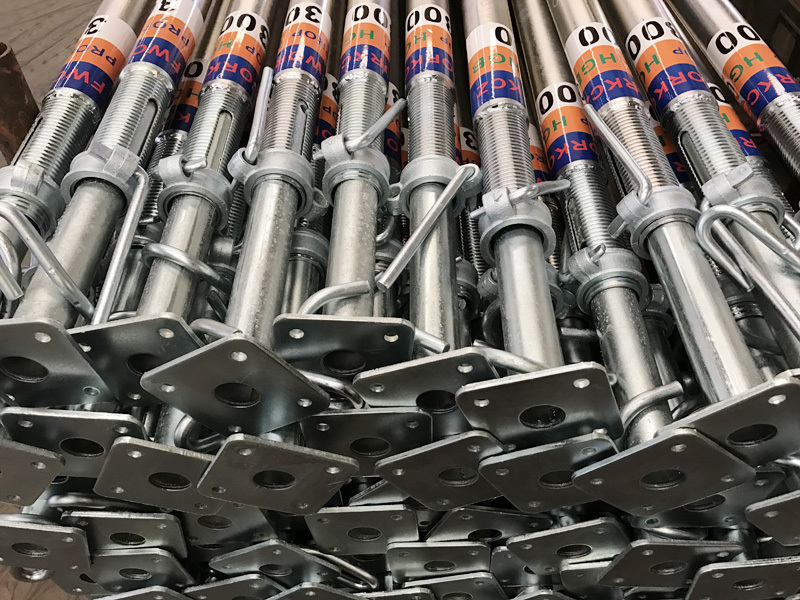

  • Robust construction with bottom plate, outer tube, inner tube, swivel nut, cotter pin, upper plate and accessories
  • Simple and flexible structure for easy assembly and disassembly
  • Fully adjustable height through inner tube extension and retraction
  • Reusable design with recyclable materials for sustainable construction
  • Versatile application for various construction height requirements
Product Specifications
Item Adjustable steel prop
Type Heavy duty / Light duty
Inner pipe/Outer pipe 48/60mm, 40/48mm, 48/56mm
Pipe thickness 1.6-4.0mm
Normal length 1.7-3m / 2.1-3.8m / 2.2-4m / 2.7-5m
Surface treatment Pre-galvanized/painted/powder coated/hot dip galvanized
Material Q235
Application Construction

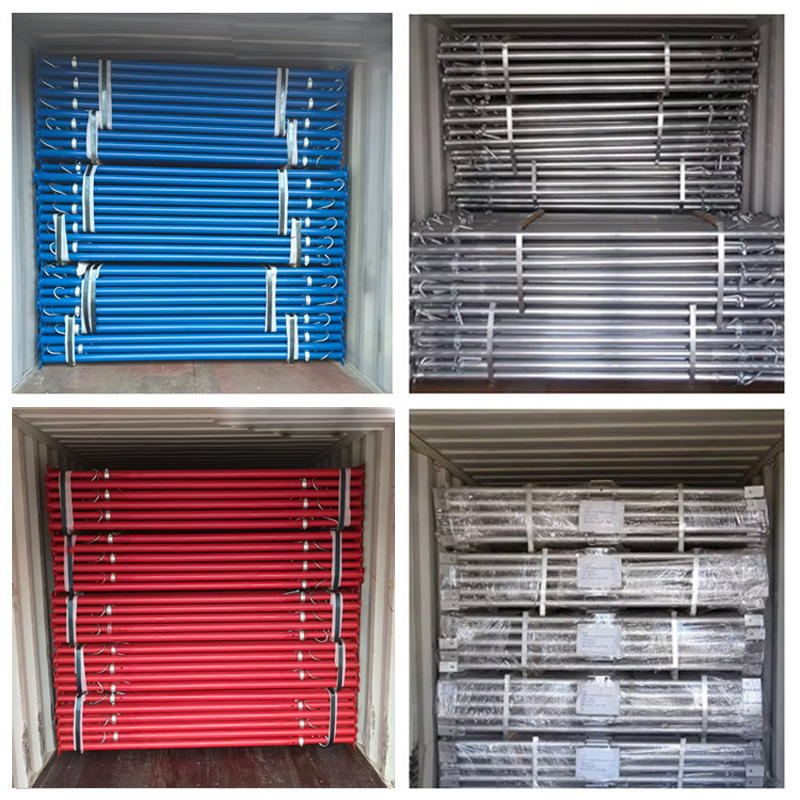

Packing Bundle
Certificate SGS
Production Capacity 1500 tons per month
Light Duty Prop Specifications
Spanish Prop
Min Height Max Height Inner Tube Outer Tube Tube Thk
0.6m 1.1m 40mm 48mm 1.6-2.5mm
0.8m 1.4m 40mm 48mm 1.6-2.5mm
1.6m 2.9m 40mm 48mm 1.6-2.5mm
1.8m 3.2m 40mm 48mm 1.6-2.5mm
2.0m 3.6m 40mm 48mm 1.6-2.5mm
2.2m 4.0m 40mm 48mm 1.6-2.5mm
Italian Prop
Min Height Max Height Inner Tube Outer Tube Tube Thk
1.6m 2.9m 48mm 56mm 1.6-2.5mm
1.8m 3.2m 48mm 56mm 1.6-2.5mm
2.0m 3.5m 48mm 56mm 1.6-2.5mm
2.0m 3.6m 48mm 56mm 1.6-2.5mm
2.2m 4.0m 48mm 56mm 1.6-2.5mm
Heavy Duty Prop Specifications
Middle East Prop
Min Height Max Height Inner Tube Outer Tube Tube Thk
1.6m 2.9m 48mm 60mm 1.6-4.0mm
1.8m 3.2m 48mm 60mm 1.6-4.0mm
2.0m 3.5m 48mm 60mm 1.6-4.0mm
2.0m 3.6m 48mm 60mm 1.6-4.0mm
2.2m 4.0m 48mm 60mm 1.6-4.0mm
3.0m 5.0m 48mm 60mm 1.6-4.0mm
3.5m 6.0m 48mm 60mm 1.6-4.0mm

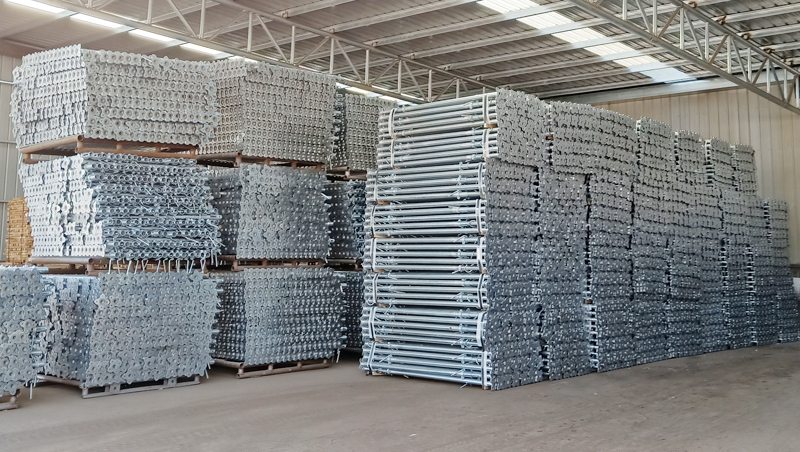

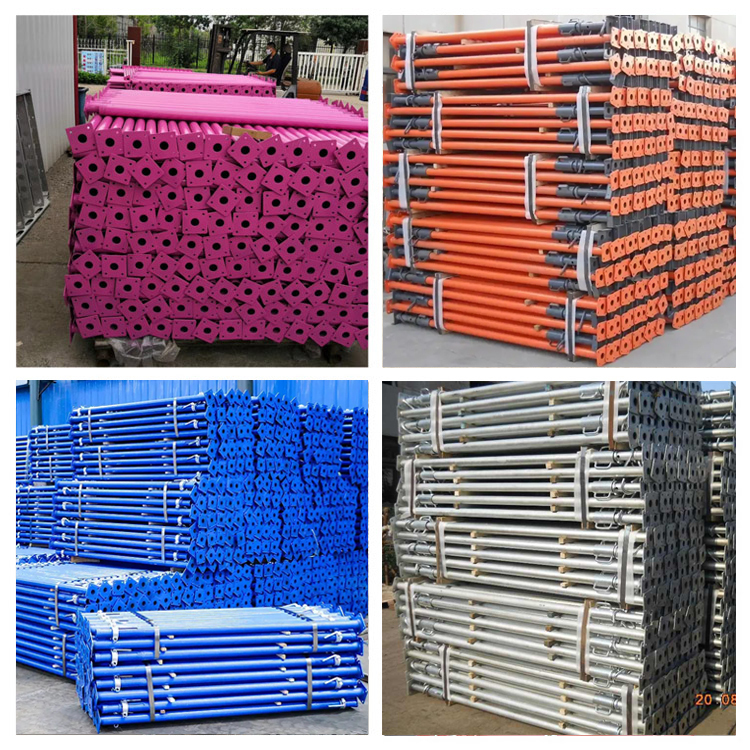

Product Gallery
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring
Complete Accessory System
We provide a complete set of steel prop accessories including Top Plate, Base Plate, Inner pipe, Outer pipe, Prop, and more.

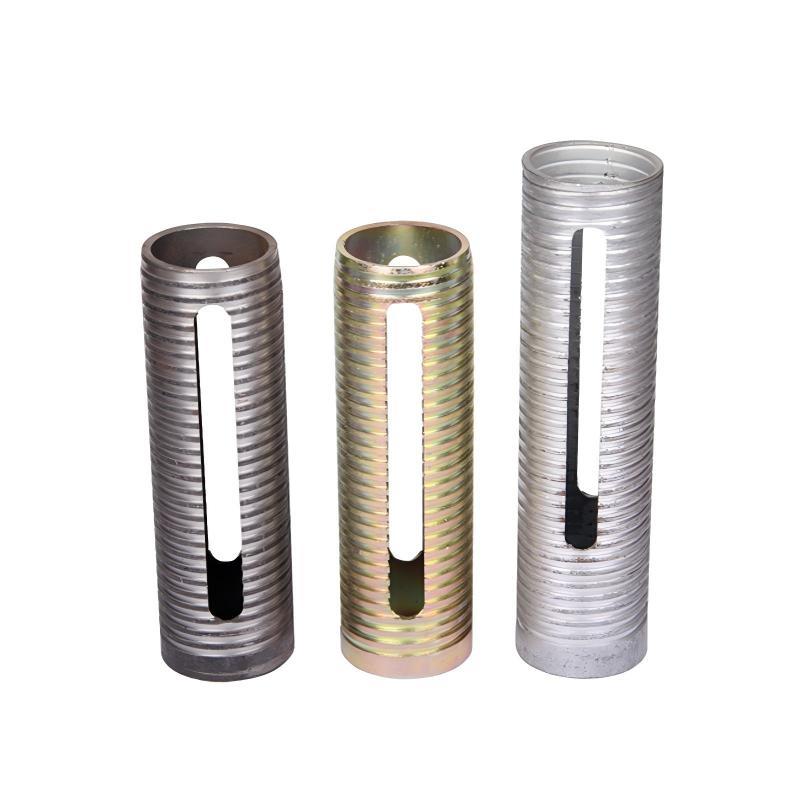

Adjustable Prop Sleeve
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Parameter Value Parameter Value
Diameter 60mm/76mm Material Q235
Length 195-400mm Surface Finish Galvanized or black
Thickness 2.5-4.0mm Color Gold, Silver or Black
Hole Size 14*150mm
15*160mm		 Application Prop adjusting
Thread 6.35mm Related Items Prop nut, Base plate, G pin, etc.
Thread Type Threading or Rolling Packing Bags or Pallets

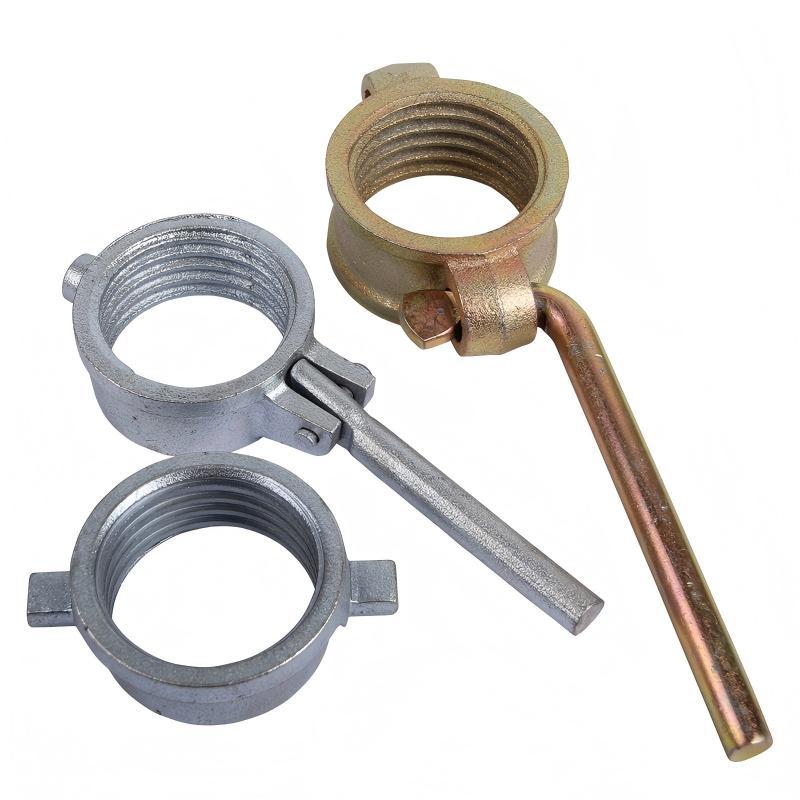

Adjustable Prop Sleeve Handle Nut
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Parameter Value Parameter Value
Diameter 60mm, 76mm Material Ductile Iron Casting
Weight 250g, 560g, 780g and etc. Surface Finish Galvanized or as Nature
Handle with or not Color Silver, Gold or Black
Thread 6.35mm Packing bags or pallet
Thread Type Rolling or Casting Related Products Prop Sleeve, Prop Support Pin and etc.

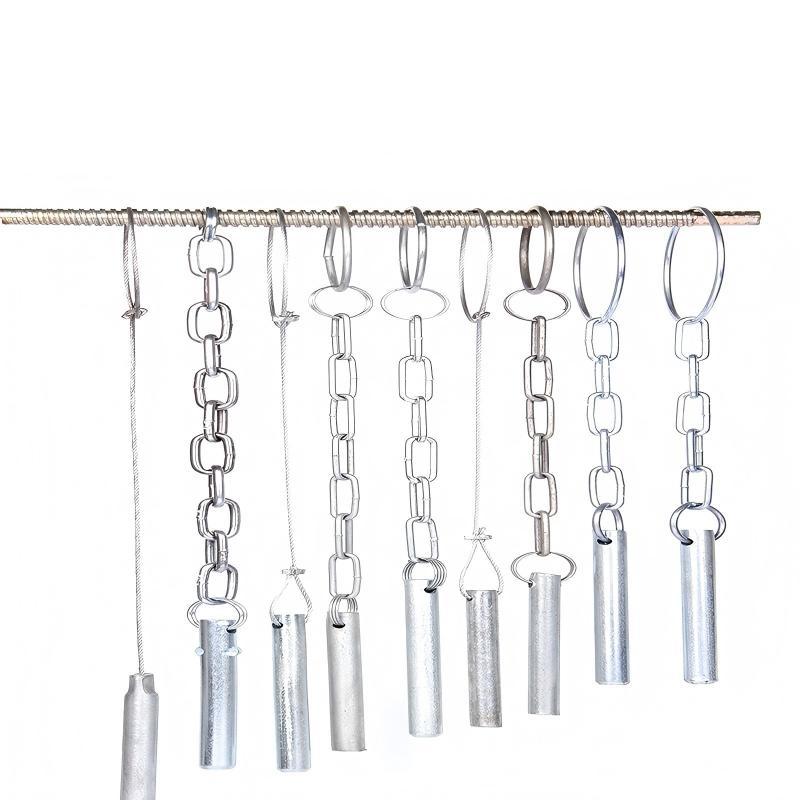

Adjustable Shoring Prop Support Pin
Picture Type Diameter Material Surface Finish

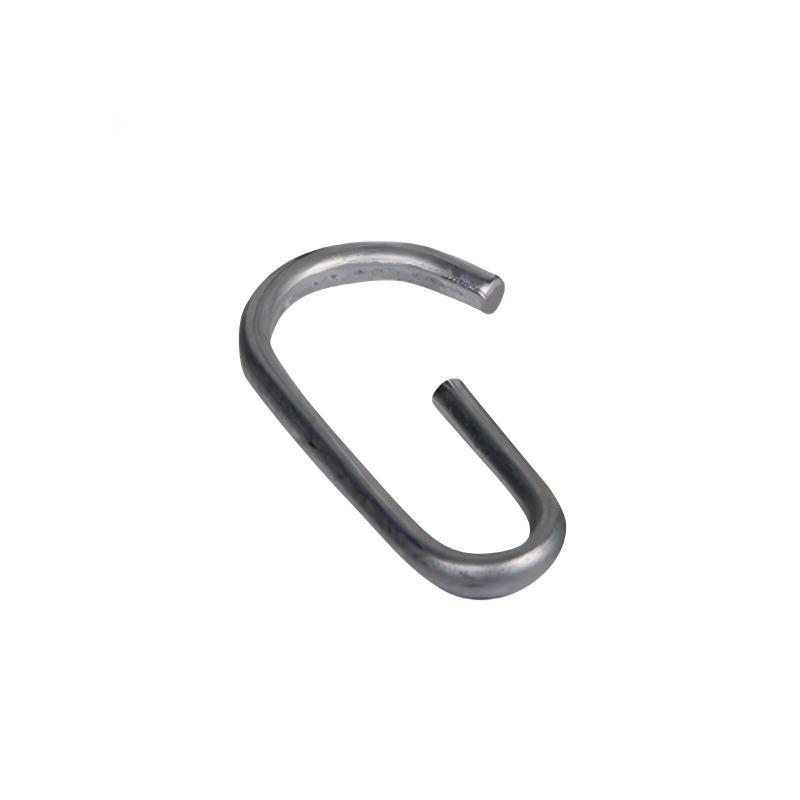

Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring G Pin 11mm, 12mm, 14mm, 16mm Q235 or 45# Steel Galvanized or as Nature
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Chain Pin 11mm, 12mm Q235 or 45# Steel Galvanized or as Nature
Wire Pin 11mm, 12mm Q235 or 45# Steel Galvanized or as Nature
Other Support Parts
Picture Item Detail Size Surface Finish
Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Fork Head 2.2kgs, 2.5kgs Galvanized

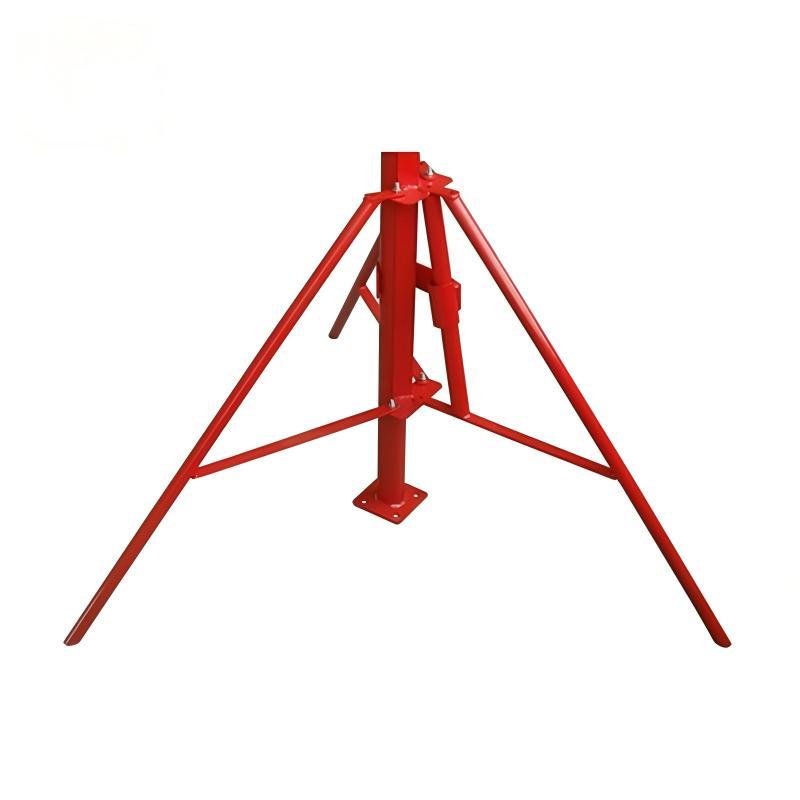

Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Tripod 5.5kgs Galvanized or Painted

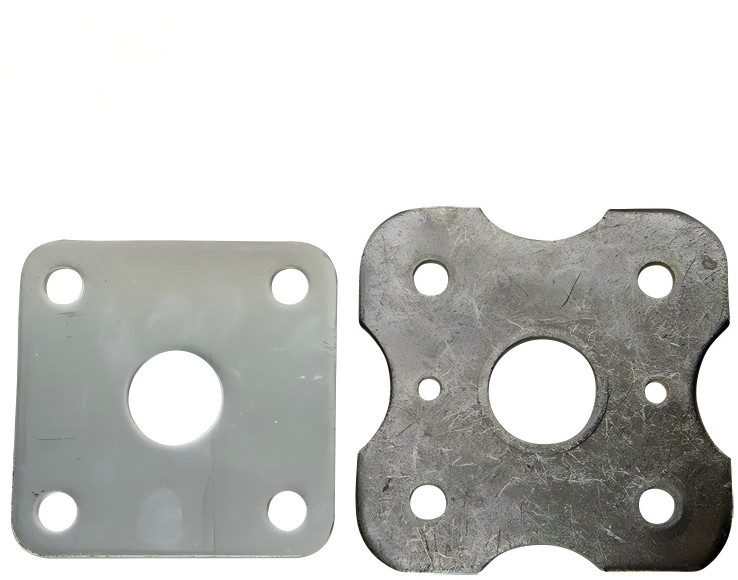

Heavy Duty Adjustable Steel Prop with Galvanized Steel Construction and Customizable Height for Scaffolding Shoring Base Plate 120x120x5mm, 140x140x8mm, Flower Type and Square Type Galvanized or as Nature
All parts above available in OEM sizes and designs to meet your specific requirements.
Quality Assurance & Global Reach
Our entire product range is designed in compliance with international quality standards. Available in varied grades, dimensions, finishes and specifications, these products efficiently cater to diverse industrial needs. We offer customization services according to client specifications and also provide Scaffolding Props and Formwork Accessories including Tie Rod, Tie Nut, Water Stop, and more.
All products undergo rigorous quality checks to ensure flawless performance. Our product range is highly demanded across Australia/NZ, USA, Mexico, Poland, UK, Korea, South/West Africa and Middle East.
Send us your adjustable steel props requirements to get a competitive price by importing directly.
