Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Specifications
Brand Name :
Shunyao Supply Chain
Model Number :
D07
Certification :
CE,ISO
Place of Origin :
Chengdu , China
MOQ :
1 PCS
Price :
$699-5,999
Payment Terms :
T/T
Supply Ability :
Excellent
Delivery Time :
5-15 Days
Packaging Details :
Bundles
Dimensions :
11,000mm × 3,600mm × 3,200mm (L × W × H)
Floor Area :
40m²
Total Weight :
10 Tons
Wall Thickness :
50mm to 100mm
Frame Material :
Galvanized Steel
Glass Type :
Double-pane LOW-E tempered glass
Lighting Temperature :
4000K
Floor Material :
Plywood with Waterproof Coating
Service Life :
10-15 years
Insulation Material :
Polyurethane foam
Description
Model D07 Luxury Mobile Space Capsule House - 40㎡ Prefabricated Tiny Home with Panoramic Glass View
Overview

The Model D07 reimagines modern living through a fusion of futuristic aesthetics and industrial-grade engineering. With a spacious 40m² footprint, this prefabricated mobile unit is designed for luxury eco-resorts, high-end glamping sites, and private backyard villas. Featuring a signature 270-degree panoramic glass wall, it offers an immersive connection with nature without compromising on the comforts of a high-end hotel suite.

Key Specifications
Dimensions 11,000mm × 3,600mm × 3,200mm (L × W × H)
Total Floor Area 40m² (Approx. 430 sq ft)
Total Weight Approx. 10 Tons

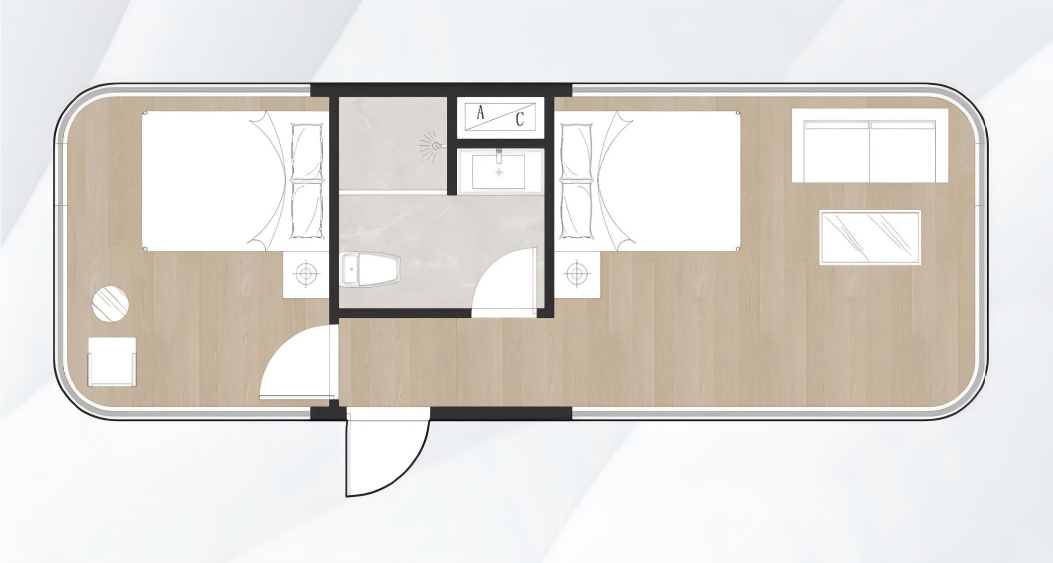

Occupancy Ideal for 2-4 persons (Studio/One-bedroom layout)
Foundation Minimal requirement; supports various terrains (steel pillars, concrete pads, or flat ground)
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Premium Features
Aerospace-Grade Durability

Constructed with a heavy-duty galvanized steel frame and corrosion-resistant aluminum alloy exterior shell. Built to withstand extreme weather conditions while maintaining its sleek, futuristic finish for decades.

Panoramic Living Experience

Equipped with double-layered, tempered Low-E glass walls. These offer exceptional thermal insulation and UV protection while providing an unobstructed, breathtaking view of the surroundings.

Plug-and-Play Mobility

The D07 is a fully integrated unit pre-installed with electrical, plumbing, and HVAC systems at the factory. Once delivered by crane, simply connect to local water and power for immediate use.

Luxury Interior & Smart Control

Features eco-friendly wood-texture flooring, premium carbon fiber wall panels, master bedroom, modern bathroom with dry/wet separation, and integrated smart home systems with optional voice control.

Cold Climate Insulation Solutions
Glass Insulation
  • Glass curtain wall (6+16+6) double-pane LOWE tempered glass / laminated glass
  • Characteristics: Heat insulation, insulation, sound insulation
  • Skylight (6+1.52+6) double-pane tempered glass with heat insulation properties
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Cabin Insulation

The cabin and outer shell are uniformly sprayed with polyurethane insulation foam agent for comprehensive thermal protection.

Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Cabin Sealing Performance
  • All seams inside the cabin are sealed with environmentally friendly sealant
  • Entrance door installed with waterproof sealing rubber strip
  • Ensures sealed but airtight environment
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Pipe Insulation
  • Insulation materials (rubber, plastic, polyethylene) wrap cold/hot water pipes and drainage systems
  • Special anti-freezing insulation pipe sleeves
  • Optional heating devices for pipes in extreme conditions
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Heating Systems
  • Air conditioning with both cooling and heating functions (central and split systems available)
  • Underfloor heating with thick baseboard floor featuring graphene technology
  • Comprehensive climate control for all weather conditions
Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
Transportation and Application Scenarios

The Model D07 is designed for easy transportation and versatile deployment across various settings including luxury resorts, private estates, and commercial hospitality applications.

Model D07 Luxury 40㎡ Mobile Space Capsule House with Panoramic Glass View and Galvanized Steel Frame
