Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Specifications
Brand Name :
Shunyao Supply Chain
Place of Origin :
Chengdu , China
MOQ :
1 PCS
Price :
$9,999-99,999
Payment Terms :
T/T
Supply Ability :
Excellent
Delivery Time :
5-15 days
Packaging Details :
Bundles
Length :
Flexible, based on customer requirements
Product Features :
Hurricane Proof
Package :
Steel pallet
Raw Steel Material :
Q235B, Q355B, ASTM A36
Walltype :
Steel panels
Shipment By :
Container
Material :
Steel
Designflexibility :
High
Customization :
Customized Logo: Min. Order: 5000
Surface Treatment :
Spray paint
Main Structure :
Galvanized Light Steel Frames
Windloadresistance :
Designed for local wind load standards
Steel Grade :
Q355B/ Q235B
Corrosionprotection :
Galvanized/Coated
Seismicresistance :
Good
Description

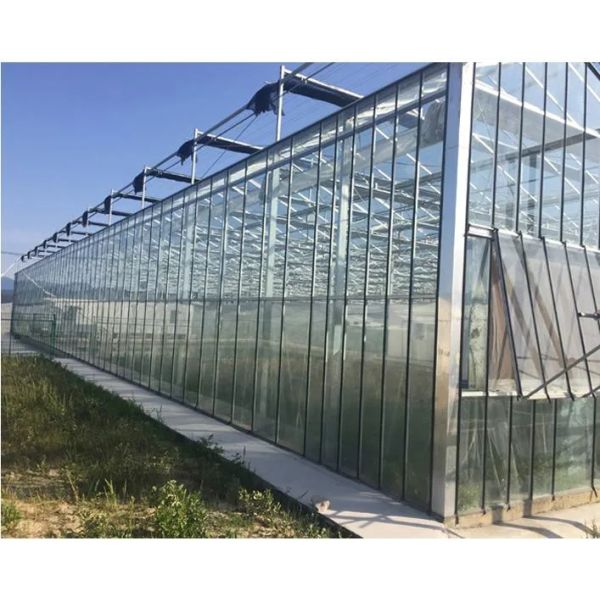

Hydroponic Steel Frame Agricultural Greenhouse
The Hydroponic Steel Frame Agricultural Greenhouse is a modern controlled-environment structure engineered for high-efficiency crop production using advanced hydroponic systems. Built with a hot-dip galvanized steel frame, this greenhouse offers exceptional durability, corrosion resistance, and superior load-bearing capacity for long-term agricultural applications.
This versatile greenhouse is ideal for vegetable cultivation, fruit production, flower planting, and seedling propagation, with specialized suitability for hydroponic farming methods including NFT systems, drip irrigation, and substrate culture. Integrated climate control systems maintain optimal growing conditions by precisely managing temperature, humidity, and light intensity.
The structure accommodates multiple covering options including polyethylene film, polycarbonate sheets, or tempered glass, providing excellent light transmission and thermal insulation. Optional intelligent systems for ventilation, cooling, shading, irrigation, fertilization, and environmental monitoring can be integrated to create fully automated greenhouse farming solutions.
With flexible design and customizable dimensions, these hydroponic greenhouses can be configured as single-span or multi-span structures, making them perfect for commercial farms, research institutes, and modern smart agriculture projects.
Technical Specifications
Parameter Specification
Structure Type Multi-span Agricultural Greenhouse
Frame Material Hot-dip Galvanized Steel
Zinc Coating 275 g/m²
Span Width 6m / 8m / 9.6m / 10m / 12m or customized
Column Spacing 4m / 4.5m / 6m / 8m
Gutter Height 3m – 5m
Roof Height 3.5m – 7.5m
Covering Material PE film / PO film / Polycarbonate sheet / Tempered glass
Film Thickness 120μm – 200μm
Wind Load 0.5 – 0.6 kN/m²
Snow Load 0.3 – 0.5 kN/m²
Maximum Rainfall Capacity 140 mm/h
Structure Lifetime 15 – 20 years
Covering Lifetime 3 – 10 years (depending on material)
Main Greenhouse Components

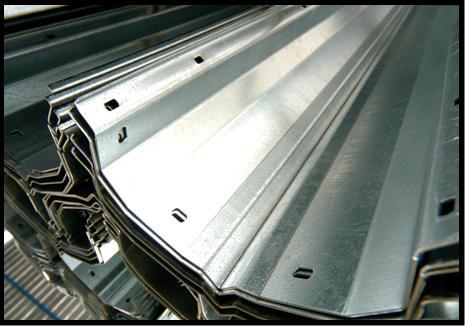

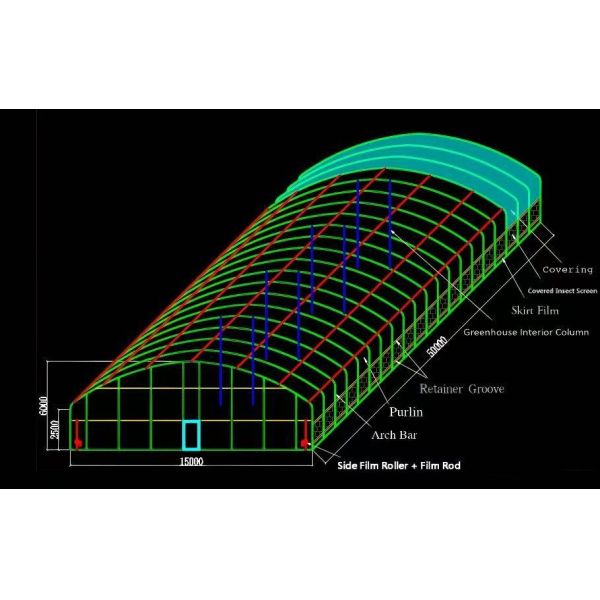

Steel Frame Structure
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Covering Materials
PE Film
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System

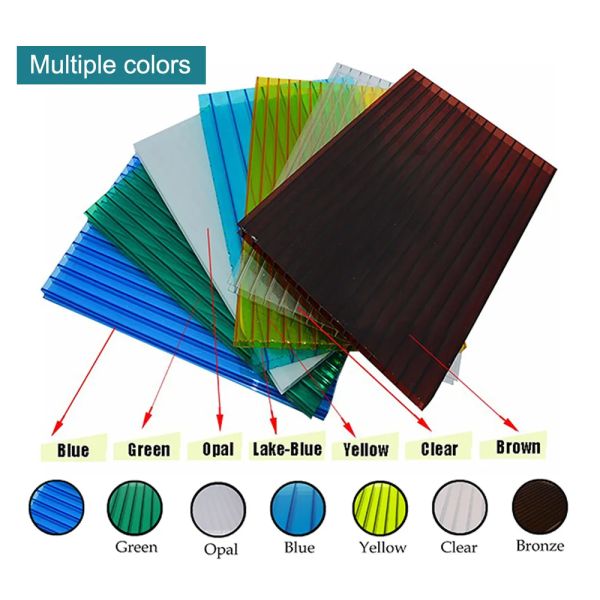

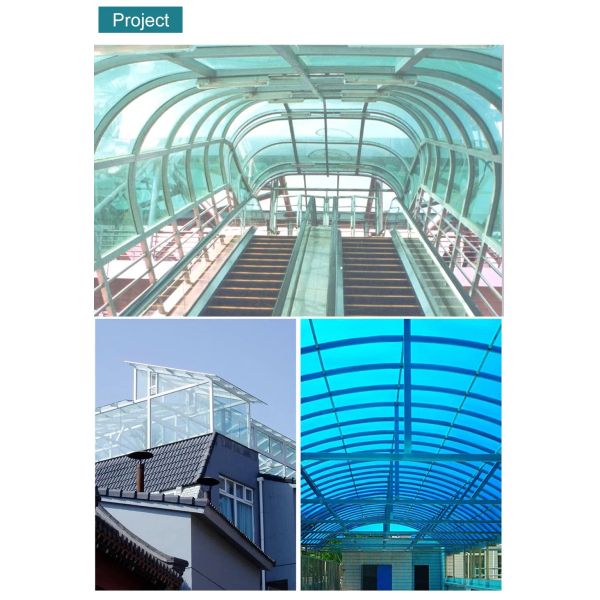

PC Sheet
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Tempered Glass
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System

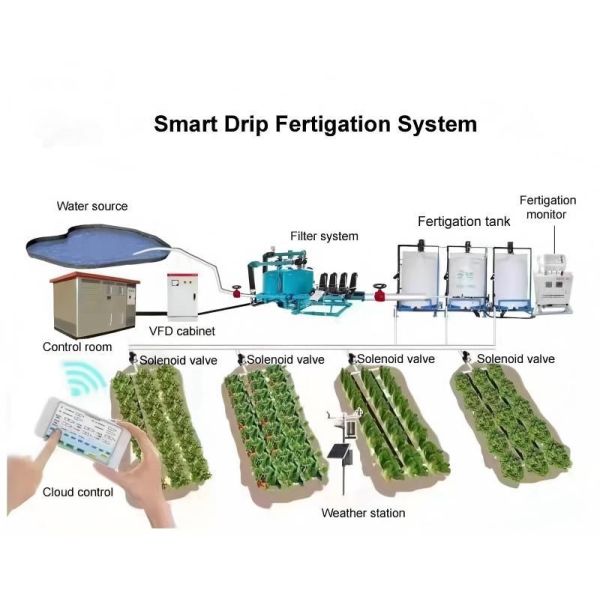

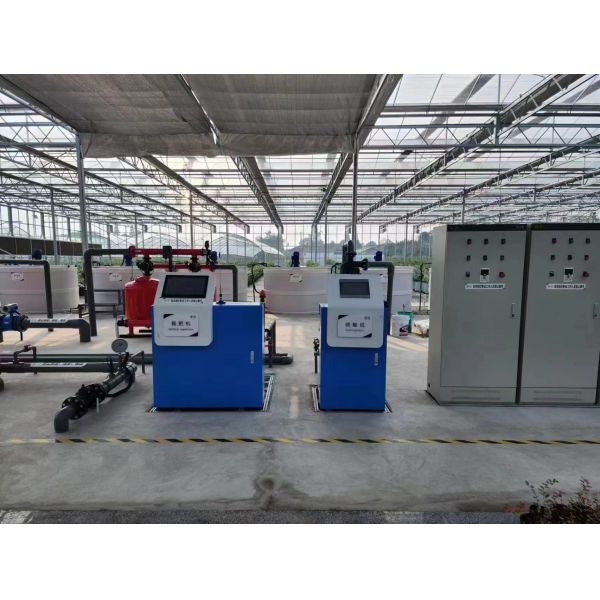

Irrigation System
Smart Irrigation & Fertigation: Delivering Precision Nutrition to Every Drop.
Our integrated systems combine water-saving drip technology with automated nutrient dosing, increasing crop yields by up to 30% while reducing water consumption by half.
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System

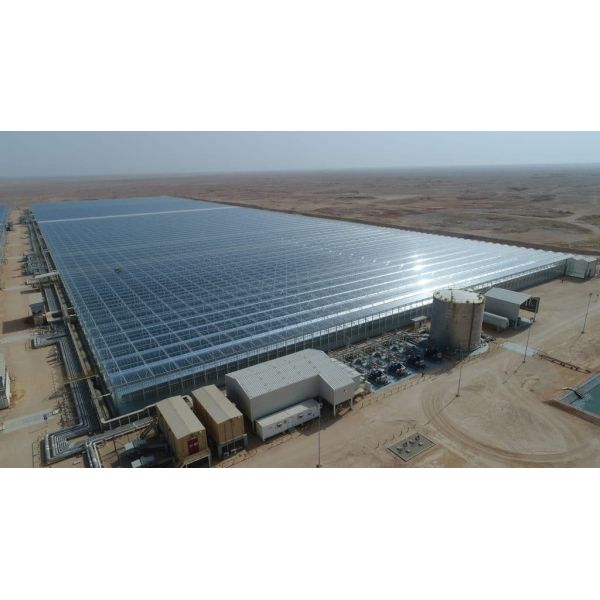

Global Export Markets
Our greenhouse projects have been successfully exported to:
  • USA
  • Australia
  • Canada
  • Middle East
  • Africa
Hot-dip Galvanized Steel Frame Multi-span Hydroponic Greenhouse with Smart Irrigation System
Applications
  • Commercial vegetable production
  • Strawberry hydroponic farming
  • Tomato greenhouse cultivation
  • Leafy greens and herbs production
  • Agricultural research institutes
  • Smart agriculture demonstration projects
These advanced systems can increase crop yield by 40–60% compared to open-field farming, while significantly reducing water consumption.
Key Advantages
  • Higher crop yield and faster growth cycles
  • Efficient water and nutrient utilization
  • Reduced pest and disease risks
  • Controlled growing environment
  • Year-round production capability
