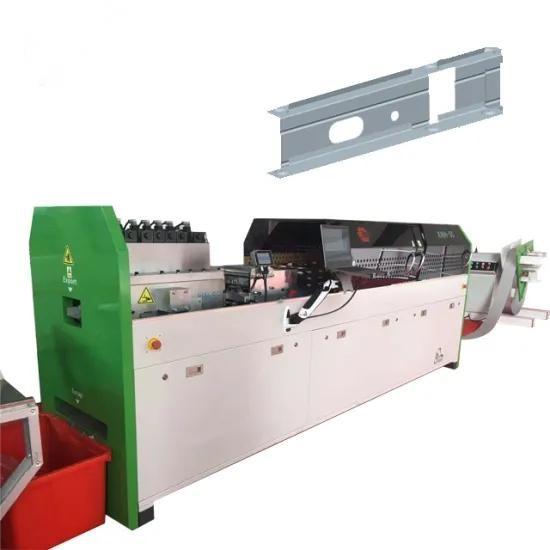

Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Gypsum wall profile forming machine
Specifications
Brand Name :
ZC
Model Number :
ZC-QG
Certification :
CE/ISO
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Packaging Details :
wood
Delivery Time :
on condition
Payment Terms :
TT or LC
Description

SPECIFICATION:

Size 89*41mm
Thickness 0.75-1.2mm(G300-G550Galvanzied coils and Aluzinc )
Feeding width 182mm
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 7.5kw
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 5.5kw
Hydraulic tank capacity:100L
Hydraulic cooling : Fan cooling
Hydraulic pressure: computer set
Frame and punching dies: Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Tolerance: +- 0.5mm
Inkjet printer: EC-JET
Machine size: 4900*1000*1500mm
Weight: 5000kg
Color: according to your request

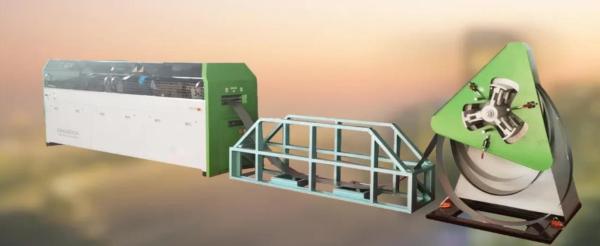

De-colier: bearing 2 tonne, automatical decoiler

No. Name Quantity
1 Decoiler 1 set
2 Hydrualic cutting device 1 set
3 Roll forming machine system 1 set
4 Hydraulic station 1 set
5 Control box system 1 set
6 Finished tables 1 set
