Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Gcr15 Chrome Coated Steel Roof Tile Forming Machine
Specifications
Brand Name :
ZC
Model Number :
ZC-DX
Certification :
CE/ISO
Place of Origin :
china
MOQ :
1
Price :
Negotiation
Packaging Details :
wood
Delivery Time :
on condition
Payment Terms :
TT or LC
Description

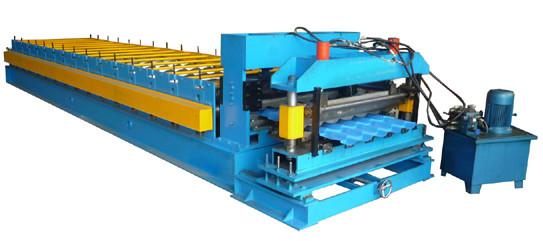

Steel Tile Roof Forming Machine

Items Specifications
Material Thickness 0.4mm galvanized coils
Un Coiler 3 tons manual
Rolling Speed About 10m/min
Roller Stations About 14stations
Roller Material Gcr15 coated with chrome
Maim Motor Power 3kw
Motor cutting Power 3kw
Material Of Cutting CR12mov with quench treatment
Hardness HRC58-62
Control System PLC (Panasonic) as list in the note
Weight About 4tons
Way Of Drive 2inch chain
