Description
CZU Forming Machine

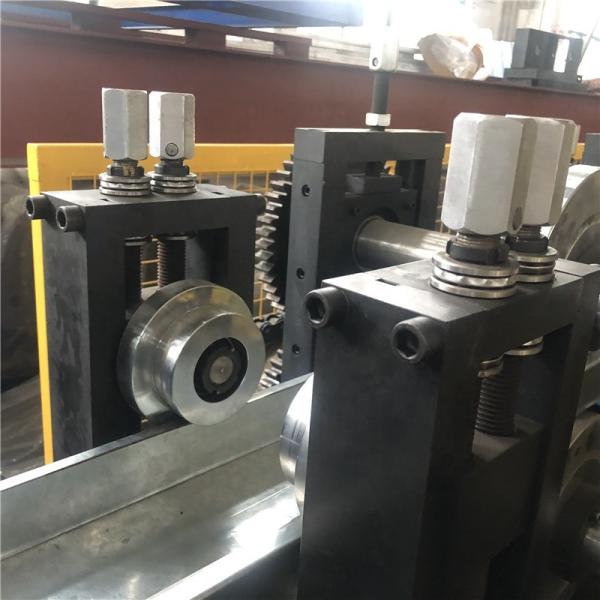

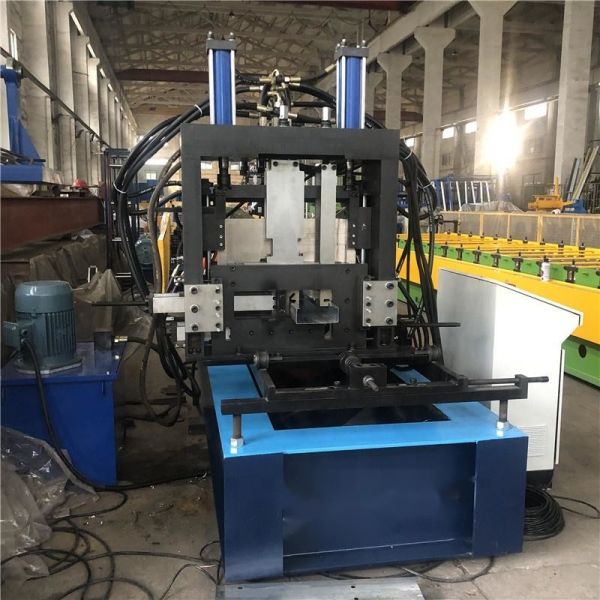

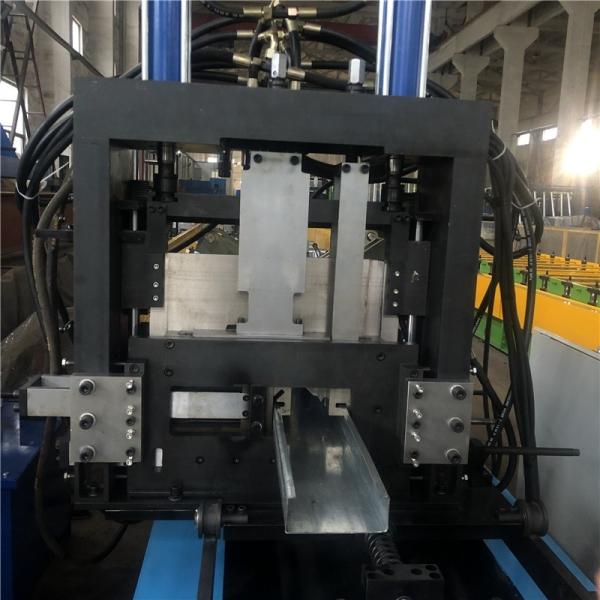

This C/Z Quick Interchangeable Roll Forming Machine adopts a special structure. The rollers for C&Z are changed very quickly without dismantle any parts . One machine can produce all specifications of C/Z/U purlins . Crimples are optional to increase rigidity of purlins. The width of the purlins can be automatically adjusted by PLC. If you need more economy then can be handle wheel adjusting as well. This machine we adopt Post-cutting and punching system, only need one cutting to make more size, the cutting blades can move up and down, left and right to save time to change blades.
C/Z Quick Interchangeable Machine
No
Item
Specification
Optional
1
Suitable material
Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):1.5-3.0
Yield strength: 250 - 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2
Nominal forming speed(m/min)
10-15
Or according to your requirement
3
Forming station
18
4
Decoiler
Manual decoiler
Hydraulic decoiler or double head decoiler
5
Main machine motor
China famous Brand
Siemens
6
PLC brand
Panasonic
Siemens
7
Inverter brand
Yaskawa
8
Driving system
Chain drive
Gearbox drive
9
Rollers’ materail
GCr15
Cr12
10
Station structure
Wall panel station
Forged Iron station
Or torri stand structure
11
Punching system
Yes
Hydraulic punching station or Punching press
12
Cutting system
Post-cutting
Post- universal cutting
13
Power supply requirement
380V 50Hz
Or according to your requirement
14
Machine color
Industrial blue
Or according to your requirement
