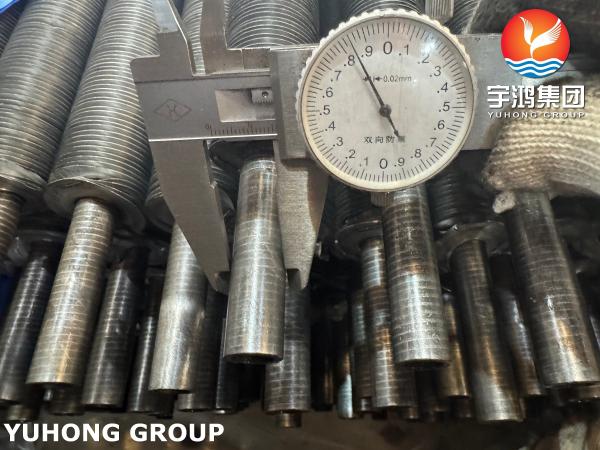

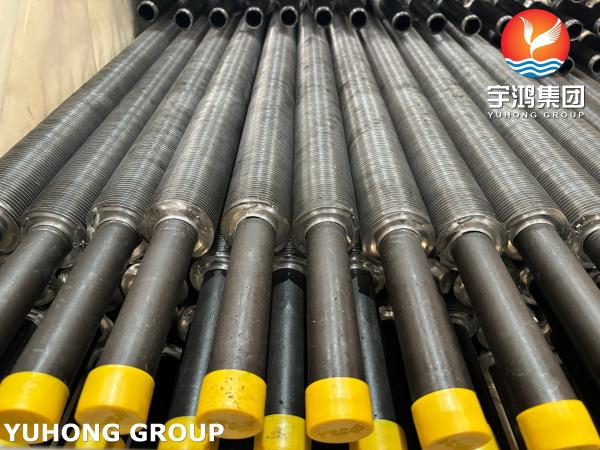

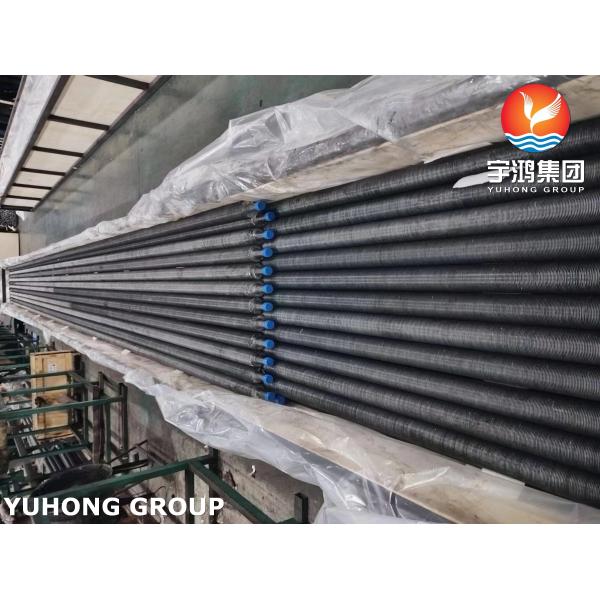

ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
ASME SA179 Carbon Steel Seamless Tube with 1060 Aluminum L Type Fin Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA179 Carbon Steel Seamless Tube With 1060 Aluminum Fin
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
According to Clients' requirements
Delivery Time :
±7 work days
Packaging Details :
Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Product Name :
Wound L Type Fin Tube
Bare Tube Specification&Material :
ASME SA179
Fin Material :
Aluminum 1060
Bare Tube OD :
16-63mm
Fin Height :
<17mm
Fin Thickness :
~0.4mm
Fin Pitch :
2.1-5mm
Type :
L/ KL/ LL Type
Test :
HT/ET
Application :
Air Cooler/ Heater/ Petrochemical/ Heat exchanger
Description
  • YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!


ASME SA179 Carbon Steel Seamless Tube With 1060 Aluminum Fin Wound L Type Fin Tube For Air Cooler/ Heater


ASME SA179 carbon steel seamless base tube with 1060 aluminum L-type wound fin is a high-performance composite heat transfer element engineered for enhanced air-side thermal performance. It features a cold-drawn seamless carbon steel pressure vessel (ASME SA179 compliant) with helically wound 1060 aluminum fins in an interlocking L-profile configuration. This unique design combines the high thermal conductivity of aluminum fins (~200W/m·K) with mechanical robustness - the L-foot anchorage prevents fin loosening under airflow erosion and thermal cycling, designed for air coolers, heaters, and finned tube heat exchangers.


1.Product Overview


The trapezoidal section formed by rolling of L-shaped finned tube is consistent with the distribution of heat flow density, and the tubes are closely combined with high thermal efficiency, thus eliminating the contact thermal resistance caused by the gap between the fins.


Working temperature: 230°C characteristics: winding process, high production efficiency, uniform spacing, good heat transfer, high fin ratio, the base pipe can be protected from air erosion.


2.Chemical & Mechanical Properties


ASTM A179 Chemical Composition (%)
C Mn P S Si Fe
≤ 0.06 - 0.18% 0.27 - 0.63% ≤ 0.035% ≤ 0.035% ≥ 0.10% (typically 0.25-0.50%) Balance (≥ 98%)


Aluminum 1060 Fins Chemical Composition (%)
Al Fe Si Cu Mn Zn Else
≥ 99.60% ≤ 0.35% ≤ 0.25% ≤ 0.05% ≤ 0.03% ≤ 0.05% ≤ 0.40%


Mechanical Properties

Component Mechanical Performance Key Features
ASTM A179
Base Tube		 · Tensile Strength: ≥325 MPa
· Yield Strength: ≥180 MPa
· Elongation (in 50mm): ≥35%
· Hardness: ≤ 72HRB

· Precision cold-drawn seamless tubing for minimum wall thickness

· Thermal Conductivity: 52 W/m·K at 20°C

· Superior resistance to oxidation and water corrosion

· Maximum Operating Temperature: 450°C (843°F) for continuous service

· Moderate strength: Suitable for low/medium-pressure heat exchangers.
Aluminum 1060 Fins · Tensile Strength: 70-110 MPa
· Elongation: 15-25%
· Hardness: 23 HB.		 · Lightweight Design Reduces System Load
 · Ductile For Vibration Absorption



3. Key Features


  • High-Efficiency Heat Transfer Design

Helical L-type wound fin design maximizes heat dissipation area for superior air-side thermal performance

  • Exceptional Mechanical Stability

Mechanically locked fins resist vibration and loosening, ideal for high-velocity airflow conditions

  • Corrosion-Resistant Combination

Carbon steel base tube (internal protection) + 1060 aluminum fins (oxidation-resistant) for harsh outdoor/chemical environments

  • Broad Temperature Range

Base tube withstands 400°C, aluminum fins operate stably up to 250°C



4. Key Applications


  • Power Plant Boiler Economizers & Air Preheaters
  • Petrochemical Process Heater/Furnace Convection Sections
  • Industrial Kiln/Furnace Waste Heat Recovery Systems
  • Various Industrial Heat Exchangers (Gas-Liquid, Gas-Gas)
  • HVAC Systems
  • Drying Equipment
  • Marine Boilers & Heat Exchange Equipment
