ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
ASME SB111 C70600 CuNi 90/10 Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger NDT ECT
Specifications
Brand Name :
Yuhong
Model Number :
ASME SB111 C70600
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
100kgs
Delivery Time :
7 days
Packaging Details :
ply-wooden case with iron frame
Material :
Copper Nickel, C70600
Fin Type :
Low Fin Type
Fin Mat :
Coper alloy steel
NDT :
HT, ECT
Application :
HE, Radiator
FPI :
23-32
Description

ASME SB111 C70600, CuNi 90/10, Copper Nickel Seamless Tube Low Fin Tube For Heat Exchanger

Product Description

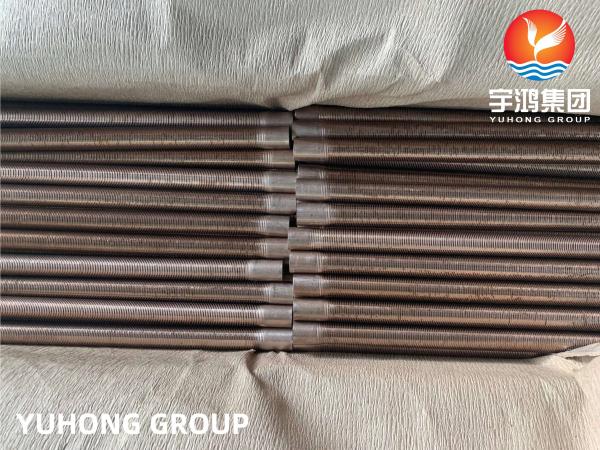

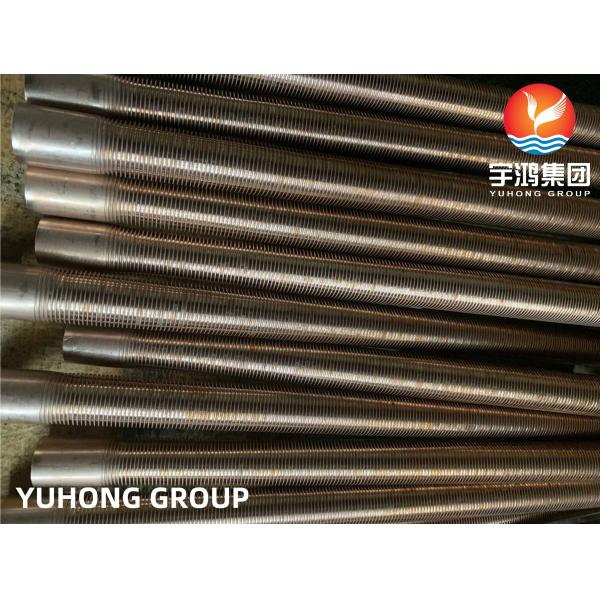

This is a low finned tube made from ASME SB111 C70600 (90/10 Copper-Nickel), commonly used in marine heat exchangers, condensers, and seawater-cooled systems. The low fins are integrally formed on the outside surface of the base tube, increasing the surface area and heat transfer efficiency without adding external material.

Chemical Composition of C70600 (CuNi 90/10)

Element Content (%)
Copper (Cu) 88.6 min (including Ni)
Nickel (Ni) 9.0 – 11.0
Iron (Fe) 1.0 – 1.8
Manganese (Mn) 1.0 max
Zinc (Zn) 1.0 max
Lead (Pb) 0.05 max
Others (each) 0.05 max

Mechanical Properties of C70600 Tube

Property Typical Value
Tensile Strength ≥ 310 MPa (45 ksi)
Yield Strength ≥ 105 MPa (15 ksi)
Elongation ≥ 30%
Hardness ≤ 100 HRB


Advantages C70600 Low Fin Tube Compared to Other Materials


Advantage Description
1. Superior Seawater Corrosion Resistance C70600 offers excellent resistance to seawater corrosion, outperforming carbon steel and aluminum, which are prone to rust and pitting in marine environments.
2. Excellent Biofouling Resistance Copper-nickel naturally resists marine organism growth (e.g., barnacles and algae), reducing maintenance needs—something stainless steel and aluminum can't do without coatings.
3. High Thermal Conductivity Better heat transfer performance than stainless steel, ensuring more efficient thermal exchange.
4. No Galvanic Corrosion with Fins Because fins are integrated from the same base material (monometallic), there is no risk of galvanic corrosion—unlike carbon or stainless tubes with aluminum fins.
5. Strong Mechanical Integrity Maintains ductility and toughness at elevated temperatures and pressures, especially compared to aluminum which is softer and less pressure-resistant.
6. Low Maintenance Requirements Natural corrosion and biofouling resistance minimize inspection frequency and reduce downtime.
7. Long Service Life in Harsh Environments Proven reliability in offshore, shipbuilding, and coastal power applications, where stainless steel may suffer from crevice corrosion.
8. Resistance to Stress Corrosion Cracking (SCC) Better SCC resistance in chloride-rich environments compared to austenitic stainless steels like 304L or 316L.
9. Stable Heat Transfer Over Time Fewer fouling and corrosion issues ensure consistent performance compared to carbon steel or aluminum fin tubes.

Applications

  • Marine condensers

  • Seawater-cooled heat exchangers

  • Desalination systems

  • Offshore platform coolers

  • Power plant condenser systems

  • Shipbuilding and naval systems
