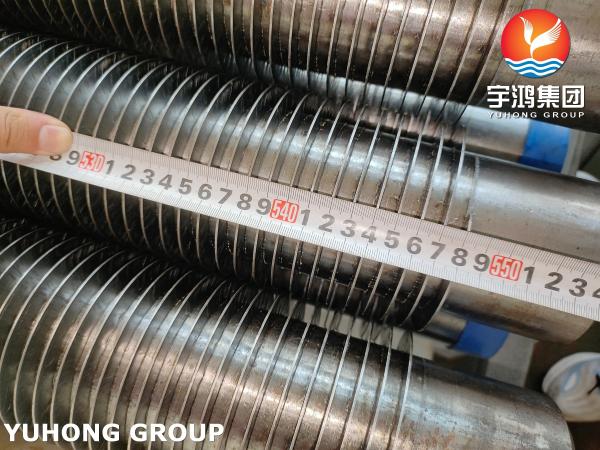

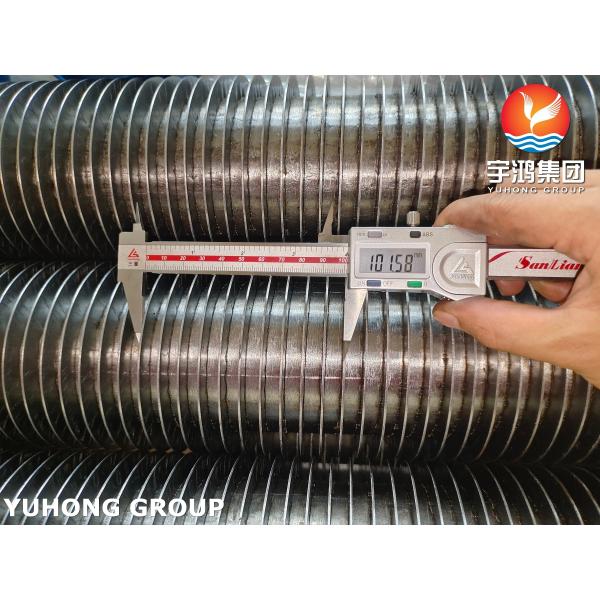

ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
ASTM A335 P22 HFW Fin Tube With 11-13CR Fin Strip For Furnace Tube
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A335 P22
Certification :
ABS, BV, CCS, DNV, LR
Place of Origin :
China
MOQ :
100kgs
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons per month
Delivery Time :
According to the qty
Packaging Details :
Ply-wooden case with iron frame
Fin Height :
1 inch
Product :
Finned Tube
Fpi :
9-13
Tubes :
ASTM A335 P9
Base Tube Test :
HT, ET
Length :
Max 34M/PC
Fin Thk :
1.54mm
Fin Type :
Solid
Description

Alloy Steel Seamless Tube, ASTM A335 P22, HFW Fin Tube, with 11-13CR Fin Strip, For Furnace Tube


Product Overview

This High Frequency Welded (HFW) fin tube is constructed with a seamless alloy steel base tube (ASTM A335 P22) and 11–13% chromium fin strips, designed for high-temperature heat exchange in furnace convection coils, superheaters, and heaters. The Cr-based fins offer enhanced oxidation resistance, making the product ideal for harsh combustion gas environments.

Chemical Composition

Base Tube – ASTM A335 P22 (Alloy Steel)

Element Content (%)
C 0.05–0.15
Mn 0.30–0.60
P ≤ 0.025
S ≤ 0.025
Si 0.50–1.00
Cr 1.90–2.60
Mo 0.87–1.13
Fe Balance

Fin Material – 11–13Cr Steel (Typical for high-temp fins)

Element Content (%)
Cr 11.0–13.0
C ≤ 0.12
Si ≤ 1.0
Mn ≤ 1.0
Fe Balance

Mechanical Properties (ASTM A335 P22)

Property Value
Tensile Strength ≥ 415 MPa
Yield Strength ≥ 205 MPa
Elongation ≥ 30%
Hardness ≤ 192 HB
Operating Temp Up to 600–650°C

Advantages

  • High Heat Resistance
    Base material (P22) and Cr fins maintain structural integrity under sustained high temperatures.

  • Corrosion & Oxidation Resistance
    11–13Cr fin strips protect against flue gas corrosion, sulfur compounds, and high-temp oxidation.

  • Durable Weld Bonding
    HFW process ensures strong mechanical connection between tube and fins, with low thermal resistance.

  • Long Service Life
    Ideal for severe service in petrochemical and power generation industries.

Applications

Used primarily in the convection section of furnaces and heaters, especially in oil refineries, chemical plants, and power boilers.

Application Zones:

  • Convection Coil Tubes
    Positioned after radiant tubes to absorb lower-temperature flue gas energy.

  • Steam Superheaters

  • Heat Recovery Systems (HRSG, WHRU)
