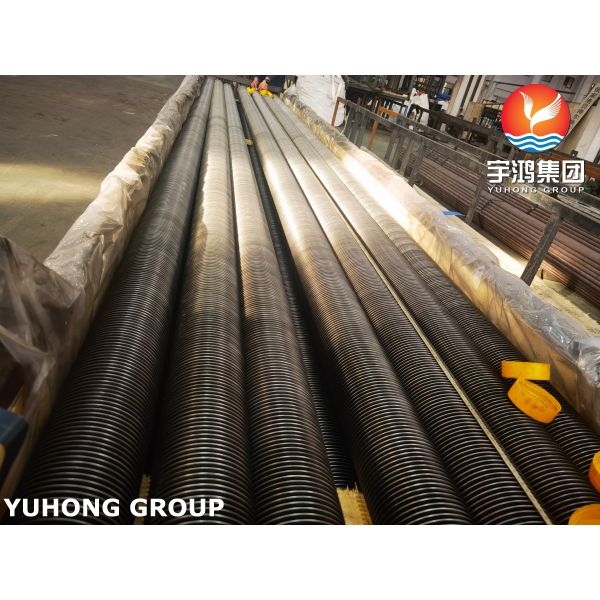

ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project
Specifications
Brand Name :
Yuhong
Model Number :
ASME SA106 Gr. B HFW Finned Tubes
Certification :
ABS, BV, DNV, CCS, LR
Place of Origin :
China
MOQ :
Depend the size of finned tubes
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
1000 tons/month
Delivery Time :
35-60 days
Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Finned Tube Type :
HFW Finned Tubes
HFW Finned Tube Standard :
ASTM A106
HFW Finned Tube Material :
Gr. B Base pipes and CS Fins
HFW Finned Tube Size and details :
According to clients' need
HFW Finned Tube Length :
According to clients' need
HFW Finned Tube Packing :
Ply-wooden Case With Iron Frame
HFW Finned Tube Use :
Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Description

ASTM A106 Gr. B Heat Conduction HFW Finned Tubes For Power Plant Project

Detailes of ASTM A106 Base Tubes

ASTM A106 Grade B, which is a standard specification for seamless carbon steel pipe for high-temperature service. It is made of high-quality carbon steel, suitable for high-temperature and high-pressure conditions, with a recommended operating temperature range of -29°C up to 425°C. The base tube features good mechanical properties, with a minimum yield strength of 240 MPa and a minimum tensile strength of 415 MPa, ensuring reliable performance in power plant heat transfer applications.

Chemical Composition (%)

Grade C Mn P S Si Cr Cu Mo Ni V
Gr. B 0.30 0.29-1.06 0.035 0.035 0.10 0.40 0.40 0.15 0.40 0.08

Mechanical Properties

Grade Tensile Strength,min Yield Strength (0.2%Offset,min)
Gr.B 60ksi (415 MPa) 35ksi (240 MPa)

The HFW finned tubes are designed to greatly enlarge the effective heat exchange surface area between the base tube and the surrounding fluid. By significantly improving heat transfer efficiency, they enhance the thermal performance of heat transfer equipment, reduce overall size and energy consumption, and ensure stable, reliable operation in high-temperature and high-pressure conditions typical of power plant heat transfer systems.

Specifications For Various Types Of Finned Tubes

Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube / T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube / corrugated tube 16-51 8.0~30 <2.5 ~0.3
Wound L / KL / LL type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type fin tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20

Primary Applications of Finned Tubes

1.Waste Heat Recovery

2.Power Generation: Essential components in boiler economizers, air preheaters, and condensers,etc.

3.Petrochemical Industry: Used extensively in process heaters, reformers, air coolers, and heat exchangers for various processes,etc.

4.HVAC (Heating, Ventilation, and Air Conditioning): Employed in industrial heat exchangers to facilitate efficient heating or cooling,etc.

5.Other Industries: Equipment like radiators and dryers, etc.
