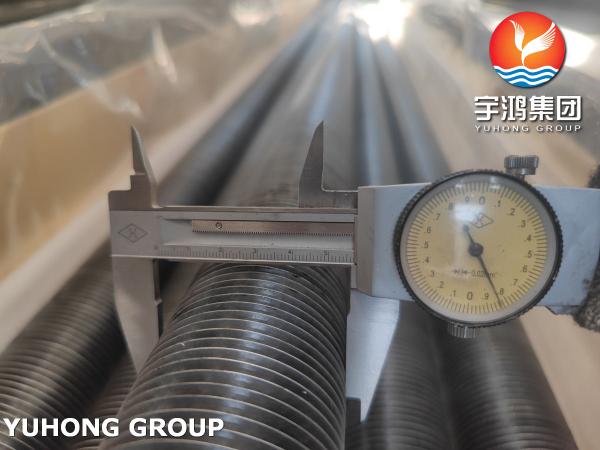

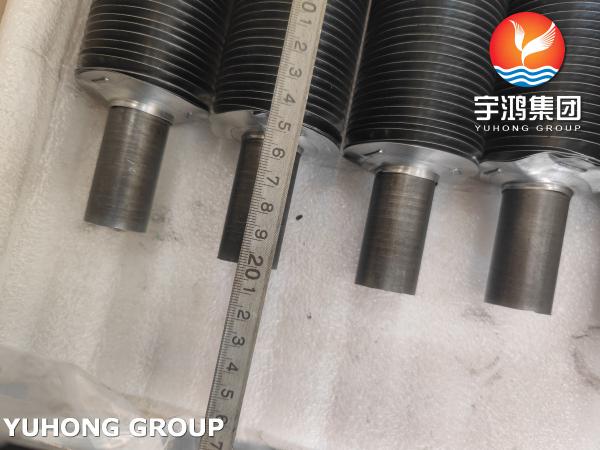

ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers
Specifications
Brand Name :
YUHONG
Model Number :
Wound L Fin Tube
Certification :
ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS
Place of Origin :
China
MOQ :
Depend
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons/month
Delivery Time :
35-45 days
Packaging Details :
Ply-wooden Case With Iron Frame
Fin Tubes Type :
Wound L Fin Tube
Wound L Fin Tube Material :
ASTM A179 Carbon Steel Base Tubes, Al1060 Fins
Wound L Fin Tube Length :
By Costomers' Requirements
Wound L Fin Tube Size :
By Costomers' Requirements
Wound L Fin Tube Application :
Air-cooled heat exchangers,Air cooled condensers (ACC) in power plants,Furnace waste heat recovery equipment and others
Wound L Fin Tube Packing :
Ply-wooden Case With Iron Frame
Description

ASTM A179 Carbon Steel Wound L Fin Tube for Air Cooled Heat Exchangers

Chemical Composition (%) Maximum
Grade C Mn P S
A179 0.06-0.18 0.27-0.63 0.035 0.035

Mechanical Properties
Grade Tensile Strength min Yield Strength min Elongation in 2" or 50mm min
A179 47ksi (325 MPa) 26ksi (180 MPa) 35%
ASTM A179 carbon steel wound L fin tubes with Al1060 aluminum fins are high-efficiency heat transfer components specially designed for air cooled heat exchangers. The base tube is manufactured in accordance with ASTM A179/A179M, which specifies cold-drawn low-carbon seamless steel tubes with good thermal conductivity and mechanical strength suitable for heat exchange service.
The fins are made of 1060 pure aluminum (Al ≥99.6%), featuring ultra-high thermal conductivity, excellent formability, and corrosion resistance in low-temperature environments.
L-shaped fin strip is tightly wound onto the outer surface of the base tube under controlled tension, forming a stable and low thermal resistance bonding structure. This type of finned tube significantly increases the external heat transfer area, strengthens flue gas turbulence, and effectively recovers waste heat from low-temperature boiler flue gas to heat feedwater. It helps reduce exhaust gas temperature, improve overall boiler efficiency, and save fuel consumption.
Advantages

High Heat Transfer Efficiency:

L-shaped fins maximize external surface area, significantly improving air-side heat transfer.

Cost-Effective Performance

Good Mechanical Bond:

Tension-wound design provides strong fin-tube contact, resisting vibration and thermal cycling in air-cooler service.

Compact & Lightweight Design:

Under the same heat transfer requirement, the L-type wound fin tube has a smaller volume and lighter weight than traditional bare tubes or other types of finned tubes.

Corrosion Protection:

Fins shield the carbon steel base tube from direct atmospheric exposure in air-cooled environments.

Application Industries

HVAC & Industrial Refrigeration

Petrochemical & Refining

Power Generation

Energy & Mining

Other Industries & Environmental Protection
