ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179 Wound L Fin Tubes
Certification :
ABS, BV, DNV, CCS, LR,etc.
Place of Origin :
China
MOQ :
Depend the size of finned tubes, 50-100PC
Price :
Negotiable
Payment Terms :
TT, LC
Supply Ability :
1000 tons/month
Delivery Time :
30-60 days

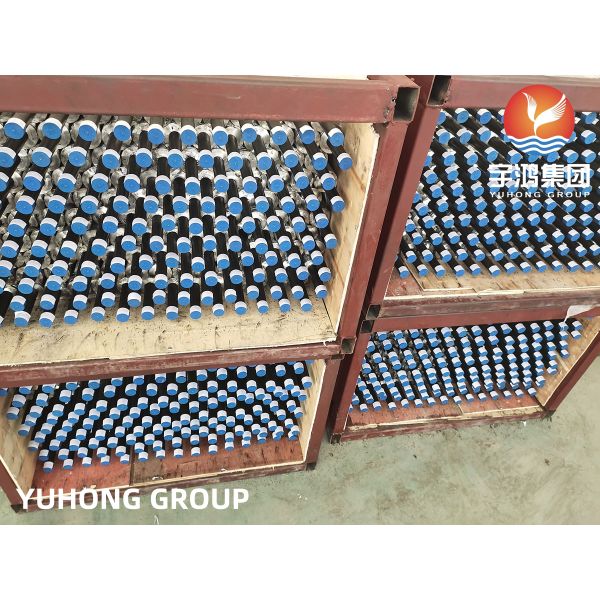

Packaging Details :
Ply-wooden Case With Iron Frame
Product :
Fin Tubes or Finned Tube
Fin Tubes Type :
Spiral Wound L Fin Tubes
Spiral Wound L Fin Tubes Standard :
ASTM A179
Spiral Wound L Fin Tubes Material :
Base Tubes SA179 and AL1100 Fins
Spiral Wound L Fin Tubes Length :
According to clients' need
Spiral Wound L Fin Tubes Size and details :
According to clients' need
Spiral Wound L Fin Tubes Use :
Air‑cooled condensers (ACC),HRSG economizers & waste heat recovery,Steam condensers,etc.
Spiral Wound L Fin Tubes Packing :
Ply-wooden Case With Iron Frame
Description

ASTM A179 Wound L Fin Tubes With AL1100 Fins For ACC Air Cooled Condensers

Chemical Composition (%) max

Grade C Mn P S
A179 0.06-0.18 0.27-0.63 0.035 0.035

Mechanical Properties

Grade Tensile Strength min Yield Strength min Elongation in 2" or 50mm min
A179 47ksi (325 MPa) 26ksi (180 MPa) 35%

Base tube: Specification ASTM A179 covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus. ASTM A179 seamless cold-drawn low-carbon steel tube, high pressure resistance, good thermal conductivity, stable mechanical properties, compatible with ACC steam condensation conditions.

Fin material: AL1100 pure aluminum fins. High heat dissipation efficiency, good formability, resistant to atmospheric corrosion, and low wind-side flow resistance.

Fin structure: Winded L-shaped fins are tightly mechanically bonded to the tube wall, resulting in low thermal contact resistance and strong resistance to loosening under long-term wind vibration and temperature cycling.

The air-cooled condenser AAC uses forced air convection to condense the exhaust steam from the turbine. The ASTM A179 bare tubes handle the condensation and heat exchange of the steam inside the tubes, and the L-shaped fins made of AL1100 material exponentially increase the external heat exchange area, which can quickly transfer the heat from the tube wall to the ambient air, achieving efficient liquefaction and circulating cooling of the power plant steam.

ASTM A179 wound L fin tubes are a key heat transfer component of the air-cooled condenser in thermal/gas-fired power plants, undertaking the core tasks of waste heat dissipation and steam condensation, and determining the thermal efficiency and stable operation of the entire ACC system.

Some Key Applications of Carbon Steel Wound L Fin Tubes

*Power Generation:

Air‑cooled condensers (ACC)

HRSG economizers & waste heat recovery

Steam condensers

*Petrochemical & Refining

Process air coolers

Furnace convection sections and waste heat recovery units

Oil coolers

*HVAC & Refrigeration

Chiller condensers and dry cooling towers

Commercial/industrial air handlers (heating/cooling coils)

Refrigeration evaporators/condensers

Specifications For Various Types Of Finned Tubes We Can Do

Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube / T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube / corrugated tube 16-51 8.0~30 <2.5 ~0.3
Wound L / KL / LL fin type 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type fin tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H / HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20
