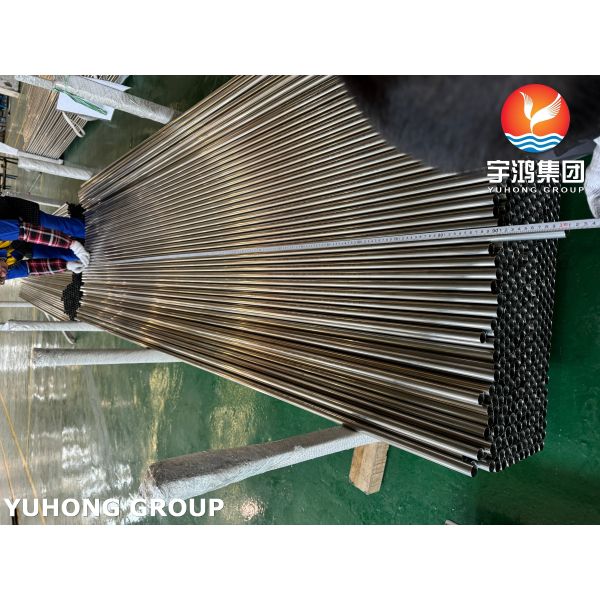

ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A249 TP316L Welded Stainless Steel Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1000kgs
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product Name :
Heat Exchanger Tube
Standard :
ASTM A249, ASME SA249
Material :
TP316/316L
OD :
1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", etc.
Thickness :
BWG10-25
Length :
Can Custom
End :
Plain End, Beveled End
High Light :
ASTM A249 TP316L Welded Stainless Steel Tube, ASME SA249 Superheater Tubing
Description

ASTM A249 TP316L Stainless Steel Welded Tube Bright Annealed Tube Heat Exchanger Tube

ASTM A249 TP316L is a welded stainless steel tube specification for superheater and heat exchanger service—made from low‑carbon, molybdenum‑bearing 316L steel, fully solution annealed after welding to restore corrosion resistance, and rigorously tested to ensure reliable performance under elevated temperatures and pressures. The surface condition of Bright Annealed is used where a smooth, decorative or ultra‑clean surface is required (e.g., pharmaceutical, food, or high‑purity heat exchangers).

ASTM A249/ASME SA249 welded tube
– More economical, often with tighter dimensional tolerances.
– Modern mills produce weld seams with properties matching the base metal when properly heat treated.
– Widely accepted for shell‑and‑tube heat exchangers and many superheater services.



Chemical Composition of ASTM A249 TP316L Welded Stainless Steel Tube %

Grade UNS Designation C M P S Si Ch Ni Mo N Nb Ti Other
TP316L S31603 0.035 2 0.045 0.03 1 16.0–18.0 10.0–14.0 2.00–3.00 ... ... ... ...


Mechanical properties of ASTM A249 TP316L Welded Stainless Steel Tube

Grade
Tensile Str
(MPa) min
Yield Str
0.2% Proof
(MPa) min
Elong
(% in 50mm) min
Hardness
Rockwell B (HR B) max
Brinell (HB) max

316L
485
170
40
95
217

Other Material Options for Superheater / Heat Exchanger

Beyond austenitic stainless steels, “others” may include:

  • Ferritic / Martensitic Alloys (e.g., T11, T22, T91) – Used in high‑pressure superheaters where corrosion is less of a concern but creep strength is critical. These are usually seamless under ASTM A213.

  • Nickel‑based Alloys (e.g., Alloy 600, 625, 800H) – For severe corrosion + high temperature, often in chemical plant heat exchangers or advanced power cycles.

  • Duplex Stainless Steels (e.g., S32205, S31803) – Occasionally used in heat exchangers for superior chloride stress corrosion cracking resistance, but generally not for superheater (high‑temperature) service due to embrittlement.



Application

  • Superheaters: Located in the convection section of boilers; these tubes raise the temperature of saturated steam above the saturation point.

  • Feedwater Heaters: Used to pre-heat boiler feedwater using extracted steam from the turbine.

  • Shell and Tube Heat Exchangers: Specifically for corrosive fluids (chemical processing, petrochemical, pharmaceutical).

  • Condensers: In power plants where cooling water (especially seawater or brackish water) is corrosive.


ASTM A249 TP316L Welded Stainless Steel Tube for Feedwater Heater SA249 Heat Exchanger Tube
