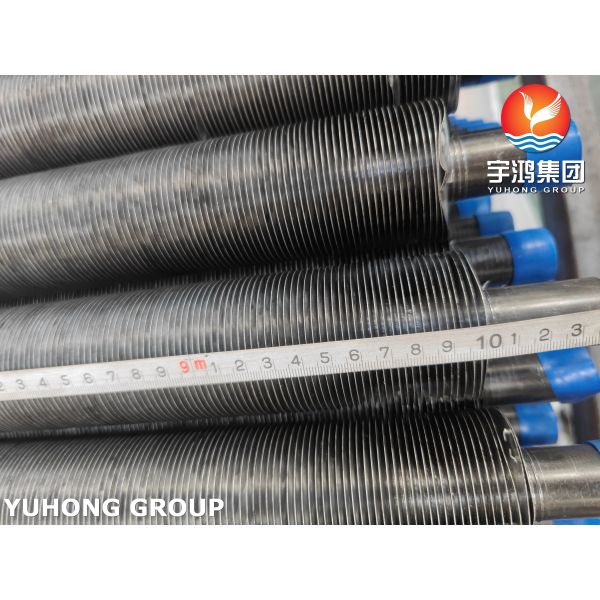

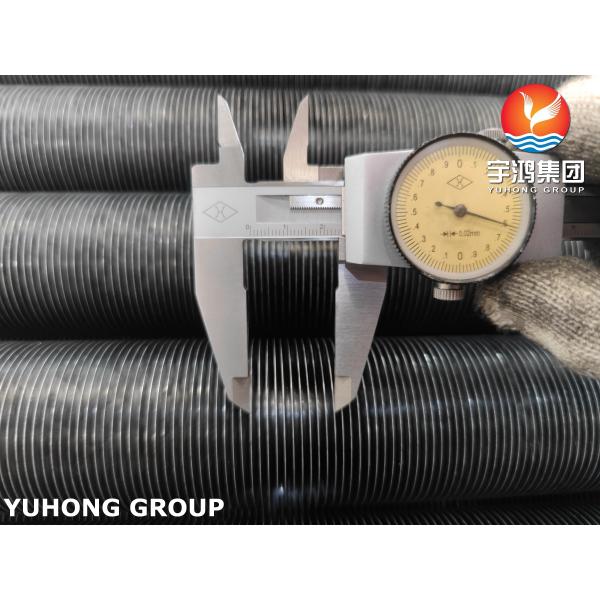

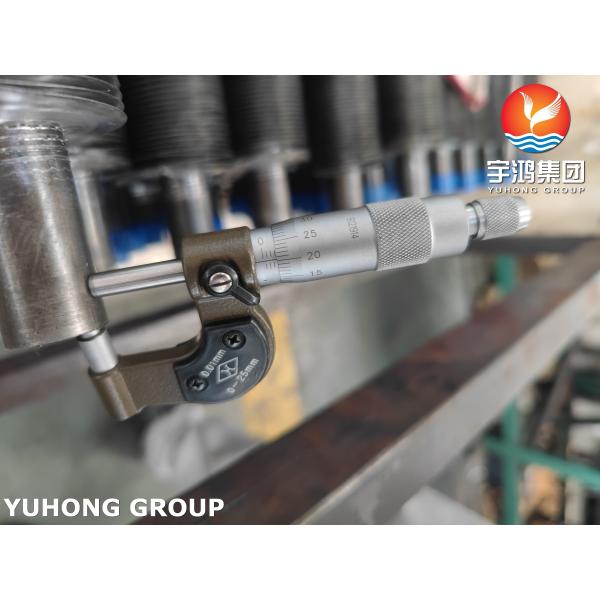

ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
Specifications
Brand Name :
YUHONG
Model Number :
Embedded G Fin Tubes
Certification :
ISO 9001-2015,ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS
Place of Origin :
China
MOQ :
Depend
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1000 tons/month
Delivery Time :
35-45 days
Packaging Details :
Ply-wooden Case With Iron Frame
Fin Tubes Type :
Embedded G Fin Tubes
Embedded G Fin Tubes Material :
ASME SA209 T1 Carbon Steel Base Tubes, Al1600 Fins
Embedded G Fin Tubes Forming :
Mechanical cold‑forming process,Feature: G‑shape groove
Embedded G Fin Tubes Application :
Superheaters, Reheaters, Economizers, and Waterwall sections,etc
Embedded G Fin Tubes Size :
By Costomers' Requirements
Embedded G Fin Tubes Packing :
Ply-wooden Case With Iron Frame
Description
ASME SA209 T1 Carbon Steel Embedded G Fin Tube for Boiler Components Economizers
ASME SA209 T1 carbon steel embedded G fin tubes are high-performance heat transfer components specifically designed for boiler economizers. They combine the excellent high-temperature creep strength of SA209 T1 carbon-molybdenum alloy steel with the superior thermal performance and mechanical stability of embedded G-type fins. These fin tubes are widely used in utility boilers, industrial boilers, CFB boilers, and waste-to-energy boilers to recover waste heat from flue gas and preheat boiler feedwater, significantly improving boiler efficiency and reducing energy consumption.
Key Properties:
Excellent high-temperature creep and rupture strength
Good resistance to graphitization
High pressure bearing capacity
Suitable for long-term service at elevated temperatures
Chemical Composition (%) Maximum
Grade C Mn P S Si Mo
T1 0.10-0.20 0.30-0.80 0.025 0.025 0.10-0.50 0.44-0.65
Mechanical Properties
Grade Tensile Strength min Yield Strength min Elongation in 2" or 50mm min
T1 55ksi (380 MPa) 30ksi (205 MPa) 30%
Key Advantages:

1.High heat transfer efficiency, increasing heat exchange area by 5–8 times compared with bare tubes

2.Excellent high-temperature performance, suitable for flue gas temperatures up to 450°C

3.Stable structure, reliable operation under thermal cycling and vibration

4.Long service life, reducing maintenance and replacement costs

5.Compact design, saving boiler space and investment

Key Applications About Economizers

Economizers for coal-fired power plant boilers

Economizers for gas and oil-fired boilers

Economizers for CFB boilers

High-temperature waste heat recovery units

Boiler tail flue gas heat transfer components

Economizers for biomass and waste incineration boilers
