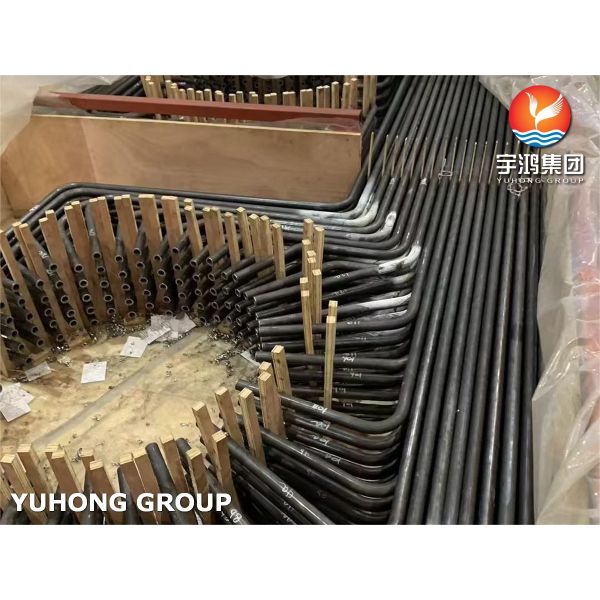

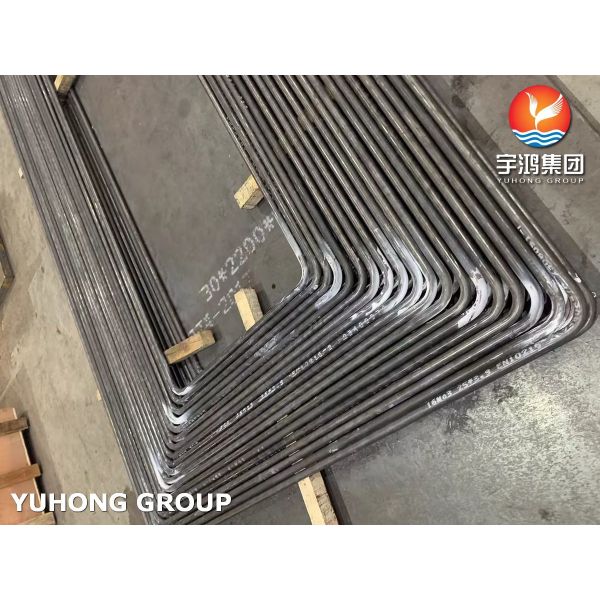

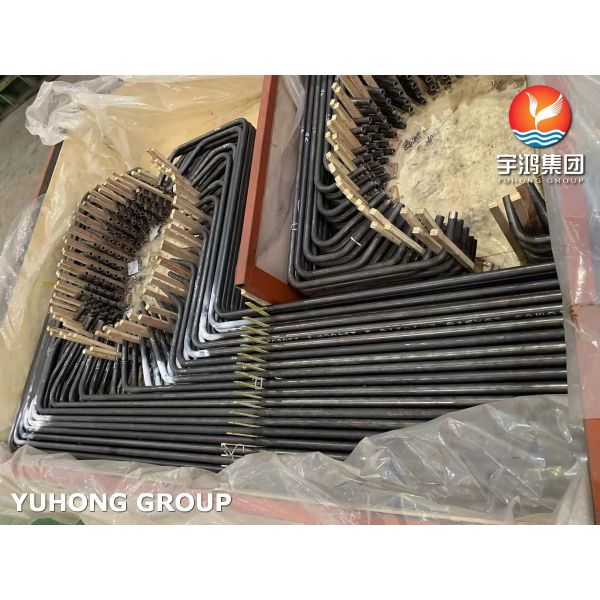

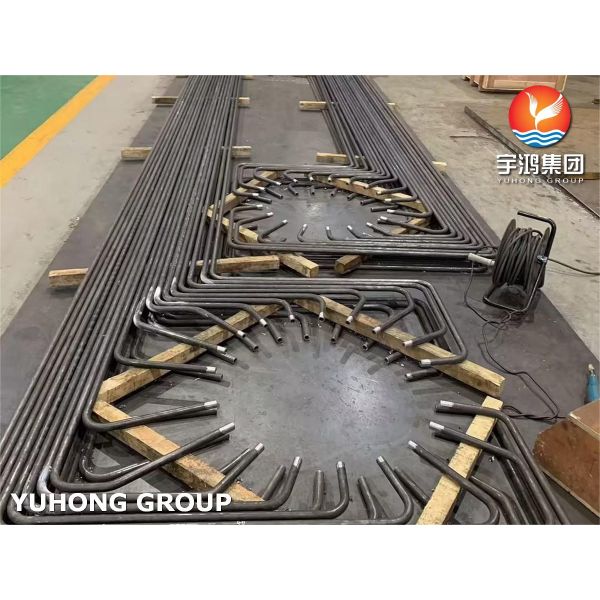

ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
Specifications
Brand Name :
YUHONG
Model Number :
ASME SA192 Carbon Steel Boiler Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1000kgs
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case
Product Name :
Carbon Steel Boiler Tube
Standard Grade :
ASTM A192, ASME SA192
OD :
1/2" to 5"
Thickness :
BWG10-25
Length :
Single Random, Double Random & Cut Length
Shape :
Straight, U bend, Shaped
End :
Plain End, Beveled End
High Light :
ASTM A192 Carbon Steel Seamless Tube, ASME SA192 Boiler Tube Bending
Description

ASTM A192 / ASME SA192 Carbon Steel Seamless Tube Bending Boiler Tube

ASTM A192 / ASME SA192 is the standard specification for seamless carbon steel boiler tubes designed for high-pressure service. These tubes are commonly used in power generation, petrochemical plants, and industrial boilers where reliability under extreme temperatures and pressures is critical. Compared to alloy steels (e.g., T5, T11, T22), A192 offers a lower-cost alternative for applications where temperatures do not exceed 1000°F and corrosion is not severe. Long service life with minimal maintenance in properly designed systems.

Procurement Checklist

When ordering ASTM A192 bent boiler tubes, provide the following:

  1. Quantity (pieces or meters)

  2. OD and Wall Thickness (e.g., 50.8 mm x 5.0 mm)

  3. Length (straight length or bent drawing)

  4. Bending Details (radius, angle, plane, tolerances)

  5. End Preparation (plain, beveled, threaded)

  6. Certification Requirements (3.1, 3.2, or client-specific)

  7. Packing

Chemical Composition of ASTM A192 / ASME SA192 Carbon Steel Boiler Tube

Standard

Chemical Compostion %

C

Si

Mn

P

S
ASTM A192 / ASME SA1920 0.06-0.18 ≤0.25 0.27-0.63 ≤0.035 ≤0.035

Mechanical Properties of ASTM A192 / ASME SA192 Carbon Steel Boiler Tube

Hardness (HRB)

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)
≤77 ≥180 ≥325 ≥35

Comparison with Similar Grades

Grade Standard Key Difference
ASTM A192 Boiler Tubes Low carbon, moderate strength, seamless
ASTM A106 Gr. B Pipe for High Temp Similar chemistry but for piping (larger sizes)
ASTM A179 Heat Exchanger Tubes Cold drawn, lower carbon, tighter tolerances
ASTM A210 Gr. A1 Boiler Tubes Higher carbon, higher strength
EN 10216-2 P235GH European Standard Comparable pressure vessel grade
Tip: A192 is often specified when the application requires a balance of strength, weldability, and code compliance for boiler service.
Applications

  • Industrial boilers and heat recovery steam generators (HRSG)

  • Refinery heaters and furnaces

  • High-pressure steam pipelines

  • Power plant economizers and superheaters


ASTM A192 / ASME SA192 Carbon Steel Boiler Tube Seamless Boiler Tube Custom Tube Bending
