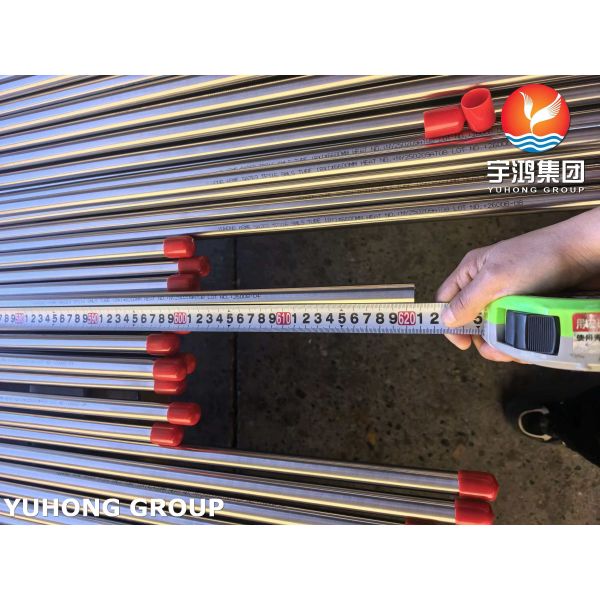

ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
ASTM A269 TP316L BA Tube Bright Annealing Tubing Stainless Steel Heat Exchanger Tube
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A269 TP316L Stainless Steel Seamless Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500kgs
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Product Name :
Heat Exchanger Tube
Standard :
ASTM A269， ASME SA269
Material :
TP316/316L
OD :
1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", etc.
Thickness :
BWG10-25
Length :
Can Custom
End :
Plain End, Beveled End
High Light :
ASTM A269 TP316L Stainless Steel Seamless Tube, BA Heat Exchanger Tube
Description

ASTM A269 TP316L Stainless Steel Seamless Tube Bright Annealing Heat Exchanger Tube

Heat Exchanger tubes are designed to transfer heat from one fluid to another. They require precise dimensions (outside diameter and wall thickness), excellent thermal conductivity (for stainless steel), and the ability to be expanded or rolled into tube sheets without cracking.
For heat exchangers, a smooth surface improves heat transfer efficiency and is easier to keep clean (less fouling).
The tube is heat treated in a furnace with a controlled atmosphere (usually hydrogen or a vacuum) rather than open air. Because there is no oxygen present, no scale (oxidation layer) forms on the surface. The tube comes out of the furnace with its original bright, shiny, and smooth surface intact.


Chemical Composition % of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade UNS Designation C M P S Si Ch Ni Mo
TP316L S31603 0.035 2 0.045 0.03 1 16.0–18.0 10.0–14.0 2.00–3.00


Mechanical properties of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade
Tensile Str
(MPa) min
Yield Str
0.2% Proof
(MPa) min
Elong
(% in 50mm) min
Hardness
Rockwell B (HR B) max
Brinell (HB) max

316L
485
170
40
95
217


Physical Properties of ASTM A269 TP316L Stainless Steel Heat Exchanger Tube bright Annealed Tubing

Grade
Density
(kg/m3)
Elastic Modulus
(GPa)
Mean Co-eff of Thermal Expansion (m/m/0C)
Thermal Conductivity
(W/m.K)
Specific Heat 0-1000C
(J/kg.K)
Elec Resistivity
(nΩ.m)
0-1000C
0-3150C
0-5380C
At 1000C
At 5000C
316/L

8000
193
15.9
16.2
17.5
16.3
21.5
 500

740

Bright Annealing (BA) Process Details:

  • Atmosphere: The furnace uses pure Hydrogen (H₂), Argon, or a vacuum. Hydrogen acts as a reducing agent.

  • Temperature: Annealing occurs around 1900°F to 2050°F (1040°C to 1120°C) .

  • Cooling: Rapid cooling (gas quenching) in the protected atmosphere to prevent carbide precipitation.

  • Surface Finish: The resulting BA finish typically has a surface roughness (Ra) of 0.2 µm to 0.6 µm (8 to 25 micro-inches). This is smoother than standard Pickled finishes.


Application

  • Heat exchangers, condensers, and boiler tubes.

  • Chemical processing, petrochemical, and refinery equipment.

  • Pharmaceutical and food-processing systems.

  • Power generation (e.g., superheaters, rebollers).
