Specifications
Fin Tubes Type :
Studded Tubes
MOQ :
Depend
Payment Terms :
TT, LC
Delivery Time :
40-60 days
Use :
Furnaces
Place of Origin :
China
Studded Tubes Standard :
ASTM A335
Packing :
Ply-wooden Case With Iron Frame
Studs Material :
Stainless Steel TP304
Brand Name :
YUHONG
Price :
Negotiable
Studded Tubes Material :
P9
Studded Tubes Size and Length :
According to clients' need
Model Number :
Studded Tubes
Packaging Details :
Ply-wooden Case With Iron Frame
ASTM A335 P9 :
Alloy Steel Seamless Pipes
Certification :
ABS, BV, DNV, CCS, LR,etc.
Supply Ability :
1000 tons/month
Description

Studded Tubes Finned Tubes Alloy Steel ASTM A335 P9 For Furnaces In Power Plant

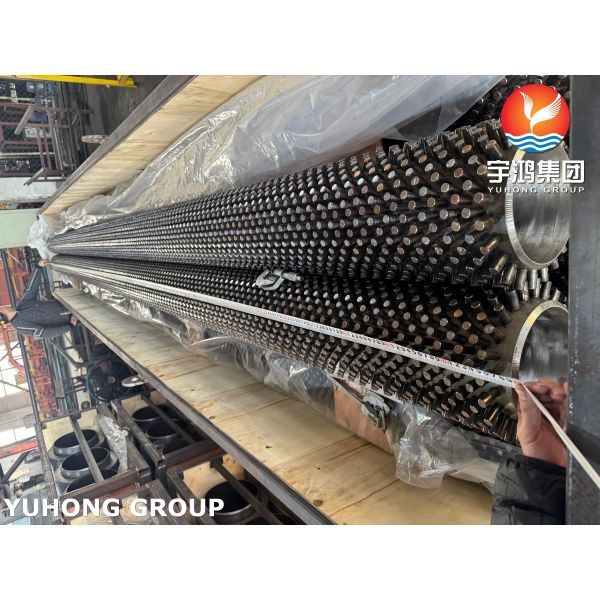

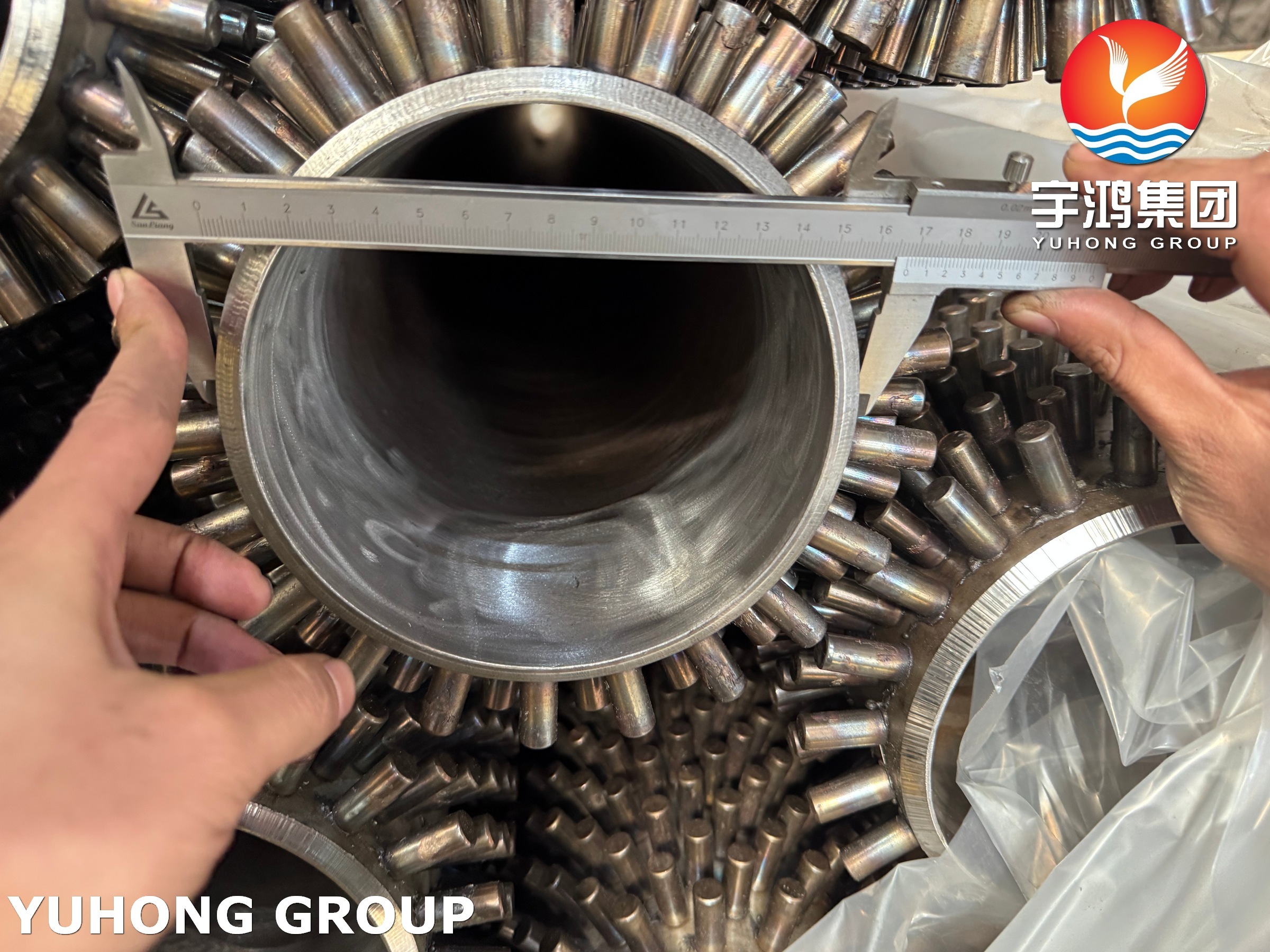

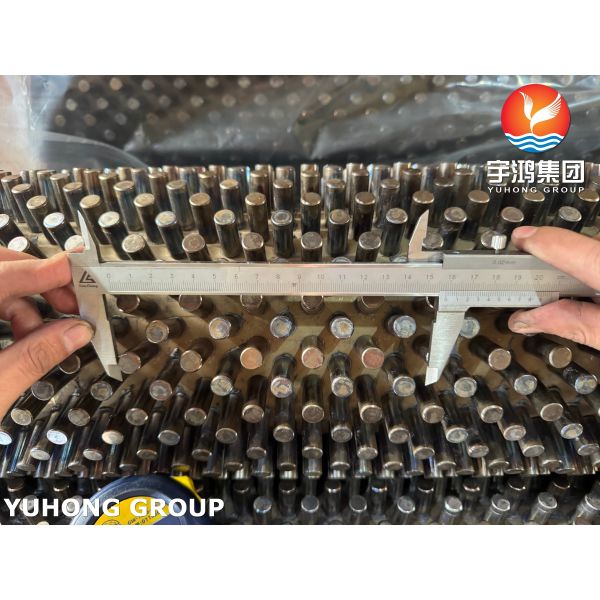

Studded Tubes (P9 base) also called pin-finned tubes, with cylindrical studs welded in square/hexagonal arrays via ERW (electric resistance welding).ASTM A335 P9 Alloy Steel Studded Tubes & Finned Tubes are high-performance heat-exchange components specifically designed for high-temperature, high-pressure furnaces in power plants. And they combine the exceptional material properties of P9 steel with improve heat transfer surfaces to meet the extreme demands of boiler and HRSG (Heat Recovery Steam Generator) systems.

Detailes of ASTM A335 Base Pipes ( Wall thickness generally is Min. )

Chemical Composition (%)

Grade C Mn P S Si Cr Mo
P9 0.15 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10

Mechanical Properties

Grade Tensile Strength,min Yield Strength (0.2%Offset,min)
P9 60ksi (415 MPa) 30ksi (205 MPa)

ASTM A335 P9 ,also known as 9Cr-1Mo,Iit is a ferritic chromium-molybdenum alloy steel seamless pipe, optimized for elevated-temperature service. P9 pipes have high-temperature strength,excellent creep resistance and mechanical stability up to 600°C (1112°F).And about oxidation & sulfidation resistance: , have high chromium content provides superior resistance to scaling and corrosion in flue gas/steam environments.

Studded Tubes Finned Tubes Alloy Steel ASTM A335 P9 For Furnaces In Power Plant

Application

Air Preheaters: Heat combustion air to improve furnace efficiency.

Economizers: Preheat boiler feedwater using low-temperature flue gas.

Boiler Superheaters & Reheaters: Heat steam from high-temperature flue gas.

Heat Recovery Steam Generators (HRSG): Recover exhaust heat from gas turbines in combined-cycle plants.

Specifications For Various Types Of Finned Tubes

Type Description Base tube Fin specification (mm)
O.D. (mm) Fin pitch Fin height Fin thick
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube / T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube / corrugated tube 16-51 8.0~30 <2.5 ~0.3
Wound L / KL / LL type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type fin tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
H/HH type fin tube 25-63 8~30 <200 1.5-3.5
Studed fin tube 25-219 8~30 5~35 φ5-20

Studded Tubes Finned Tubes Alloy Steel ASTM A335 P9 For Furnaces In Power Plant
