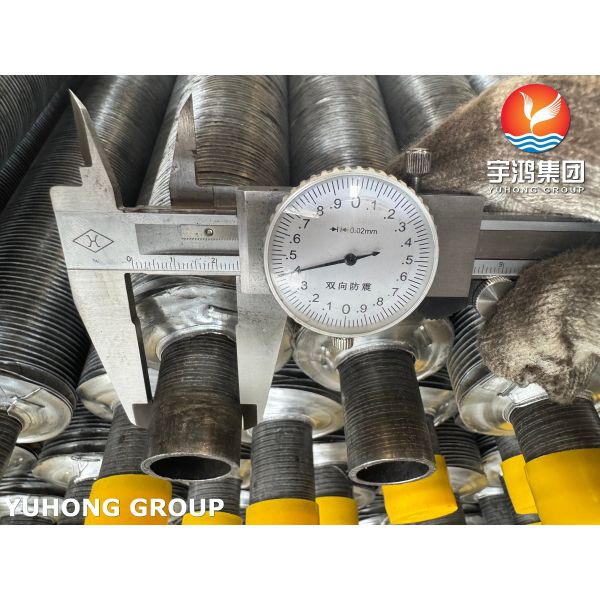

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger
Specifications
Brand Name :
Yuhong
Model Number :
ASTM A179
Certification :
DNV, BV, PED, LR, ABS, TS, CCS
Place of Origin :
China
MOQ :
100KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 ton/month
Delivery Time :
7-45DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with Plastic Cap
Fins :
AL1060
Base Tube Material :
A179
Fin Material :
AL1060
Fin Thk :
0.4mm
Fpi :
9-13
Fin Materials :
Aluminium, Copper
NDT :
HT/ECT
Application :
Air Cooler
Description

Wound Fin Tube ASME SA179 KL Type With Aluminium Strip For Heat Exchanger

Product Description

KL-type wound fin tubes are produced by tightly wrapping an aluminum strip around the base carbon steel tube under controlled tension. During the process, the base of the aluminum strip is simultaneously knurled and wound, ensuring a tight mechanical bond between the fin and the tube. This structure provides good heat transfer efficiency and prevents fin loosening during service. KL-type fin tubes are widely used in heat exchangers, air coolers, and condensers where cost-effective and efficient thermal performance is required.

Chemical Composition (ASME SA179 Base Tube)

Element C Mn P (max) S (max)
Content (%) ≤ 0.06 0.27–0.63 0.035 0.035

Mechanical Properties (ASME SA179 Base Tube)

Property Requirement
Tensile Strength ≥ 325 MPa
Yield Strength ≥ 180 MPa
Elongation ≥ 35%
Hardness ≤ 72 HRB

Chemical Composition (Aluminium 1060 Fin Strip)

Element Al Si Fe Cu Mn Zn Others (each) Others (total)
Content (%) ≥ 99.6 ≤ 0.25 ≤ 0.35 ≤ 0.05 ≤ 0.03 ≤ 0.05 ≤ 0.03 ≤ 0.10

Fins Type:

  • KL-Type (Knurled + Wrapped)

  • Aluminum strip wound onto the tube with knurled base for enhanced bonding

  • Available in various fin heights and pitches as per design.

Fin Tube Types

Feature / Type L Type KL Type G Type Extruded Type
Bonding Method Wrapped, L-foot Knurled + Wrapped Groove + Embedded Fin Aluminium Sleeve Extruded
Fin-Tube Contact Moderate Good Excellent Excellent
Heat Transfer Moderate Good Good–Excellent Excellent
Temperature Resistance Low–Moderate Moderate High High
Mechanical Strength Fair Better than L High Very High
Cost Low Low–Medium Medium High
Typical Use Basic air coolers General air coolers Petrochemical / Refineries Offshore / Harsh Environments

Advantages

  • Economical and efficient finning method

  • Improved mechanical bonding between fin and tube compared to L-type

  • Good heat transfer efficiency

  • Suitable for moderate temperature applications

  • Widely applied in heat exchangers for air cooling, power generation, and petrochemical industries
