Specifications
Brand Name :
YUHONG
Model Number :
ASTM B111 UNS C68700 Aluminum Brass U Bend Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
NEGOTIABLE
Payment Terms :
L/C,T/T
Delivery Time :
7days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Production Name :
U Bend Heat Exchanger Tube
Standard :
ASTM B111, ASME SB111
Material :
UNS C68700 / CuZn20Al2 / 2.0460
OD :
1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", etc.
WT :
BWG 25, 22, 20, 18 ... 10
Radius :
Can Custom
Length :
Single Random, Double Random & Cut Length
Process :
Cold Drawn
Application :
Boiler, Heat Exchanger, Oil and Gas Plant, Cooling, Condenser
High Light :
ASTM B111 UNS C68700 Aluminum Brass Tube, CuZn20Al2 U Bend Heat Exchanger Tubee
Description

ASTM B111 UNS C68700 / CuZn20Al2 / 2.0460 Aluminum Brass U Bend Heat Exchanger Tube

YUHONG GROUP is specialized in supplying heat exchanger tubes, boiler tubes and condenser tubes in China. The available materials we can offer including carbon steel, stainless steel, duplex steel, alloy steel, copper, nickel alloys, which can satisfy your different project rquirements. ASTM B111 C68700 / CuZn20Al2 / 2.0460 is a medium-cost, seawater-resistant aluminum brass ideal for U-bundle heat exchangers. Its key strength is resistance to impingement attack and dezincification due to aluminum and arsenic. Use it for clean to moderately polluted seawater or brackish water at velocities up to 3 m/s. Ensure proper post-bend stress relief and NDT (ET) to guarantee U-bend integrity.

Equivalent Grades of ASTM B111 UNS C68700 Seamless Aluminum Brass U Bend Heat Exchanger Tube

Material Designation Corresponding Material Symbol
GB/T8890 ASTM B111 BS2871 JIS H3300 DIN1785
Copper-Nickel BFe10-1-1 C70600 CN102 C7060 CuNi10Fe1Mn
BFe30-1-1 C71500 CN107 C7150 CuNi30Mn1Fe
(BFe30-2-2) C71640 CN108 C7164 CuNi30Fe2Mn2
(BFe5-1.5-0.5) C70400 – – –
B7 – – – –
Aluminums Brass HAL77-2 C68700 CZ110 C6870 CuZn20Al2
Admiralty Brass HSn70-1 C44300 CZ111 C4430 CuZn28Sn1
Boric Brass Hsn70-18 – – – –
HSn70-1 AB – – – –
Arsenical Brass H68A – CZ126 – –
Brass Tube H65/H63 C28000/C27200 CZ108 C2800/C2700 CuZn36/CuZn37

Chemical Composition of ASTM B111 UNS C68700 Seamless Aluminum Brass U Bend Heat Exchanger Tube

Designation Chemical Composition %
Cu Sn Al As Ni Fe Mn Pb max. Zn
C44300 70.0-73.0 0.9-1.2 – 0.02-0.06 – 0.06 max – 0.07 Rem
C68700 76.0-79.0 – 1.8-2.5 0.02-0.06 – 0.06 max – 0.07 Rem
C70400 Rem – – – 4.8-6.2 1.3-1.7 0.3-0.8 0.05 1.0max
C70600 Rem – – – 9.0-11.0 1.0-1.8 1.0max 0.05 1.0max
C71500 Rem – – – 29.0-33.0 0.4-1.0 1.0max 0.05 1.0max
C71640 Rem – – – 29.0-32.0 1.7-2.3 1.5-2.5 0.05 1.0max

Tensile Requirements of ASTM B111 UNS C68700 Seamless Aluminum Brass U Bend Heat Exchanger Tube

Copper or Copper Alloy UNS NO. Temper Designation Tensile Strength Yield Strength
Standard Former min ksi min ksi
C44300 O61 annealed 45 15
C68700 O61 annealed 50 18
C70400 H55 light-drawn 38 30
C70600 H55 light-drawn 45 15
C71500 O61 annealed 52 18
C71640 O61 annealed 63 25

Application

  • Power Plants: Seawater-cooled condensers, auxiliary coolers, and moisture separator reheaters (MSR).

  • Desalination Plants: Multi-Stage Flash (MSF) and Multi-Effect Distillation (MED) evaporators (low-temperature stages).

  • Marine Engineering: Shipboard heat exchangers, coolers for diesel engines.

  • Chemical/Petrochemical: Heat exchangers with brackish or saline cooling water.

  • HVAC: Large seawater-cooled chillers.

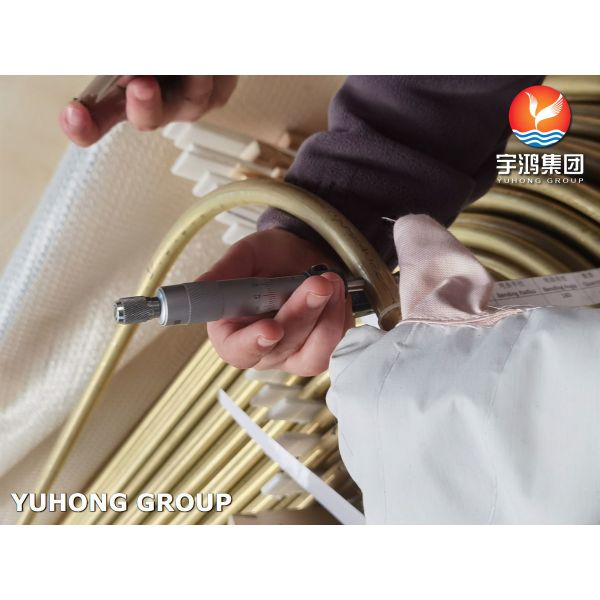

Testing
