Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Thermal Break Hidden Frame Curtain Wall Anti UV Environmental Friendly
Specifications
Place of Origin :
China.
Brand Name :
GNT
Certification :
ISO 14001:2015; ISO 45001:2018; ISO 9001:2015
Price :
USD 2,000-2,500 Per ton
Delivery Time :
In 20-30 days.
Supply Ability :
100,000 Ton per year.
Description

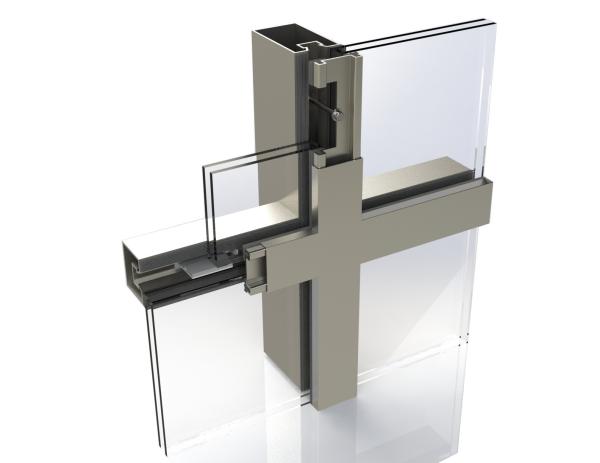

The curtain wall frame system adopts an internally expanded stepped rivet structure, enabling a laminated and efficient frame assembly. It offers excellent wind resistance and fire insulation performance. Additionally, through the ingenious design of connectors and the internally expanded stepped rivet structure, the system achieves hole-free and damage-free installation, significantly reducing construction difficulty while allowing for thermal break insulation and a hidden frame design.

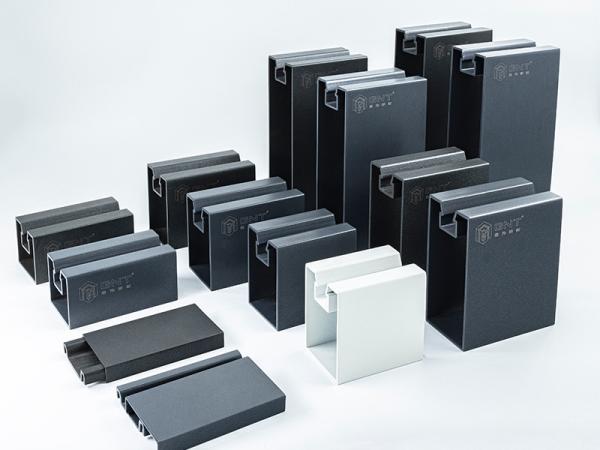

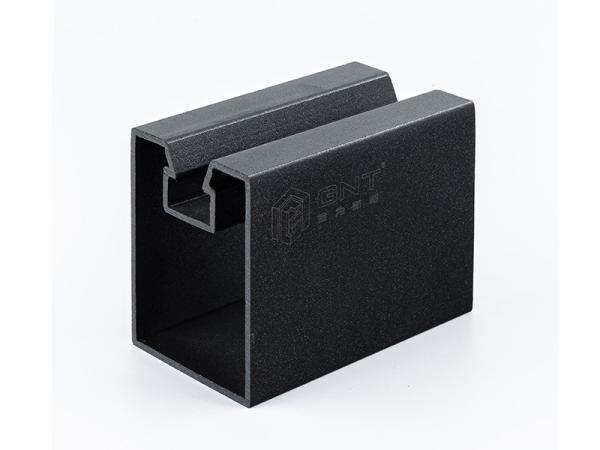

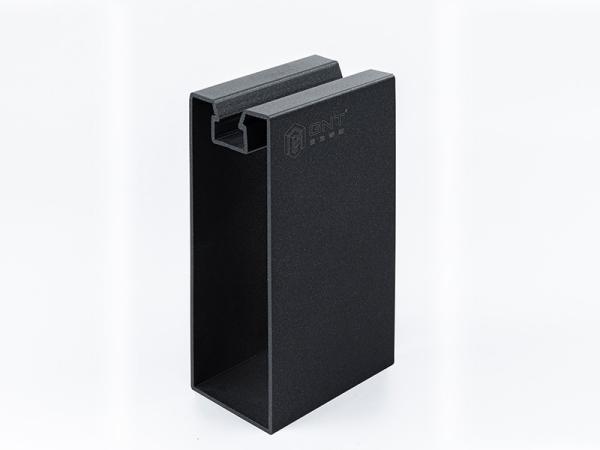

Profile specification:

60mm*220mm,60mm*180mm,60mm*150mm,60mm*120mm,60mm*80mm,60mm*50mm

Profile properties:


Fire integrity: 1h 1.5h 3h


Fire resistance: 1h 1.5h 3h


Profile thickness: 3.0mm


Zinc content of profile: 200-240g/㎡


Section accuracy: 0.3-0.5mm


Visible external R Angle: R≤0.3mm


Tensile strength: 18.3KN


Material yield strength: 280MPa
