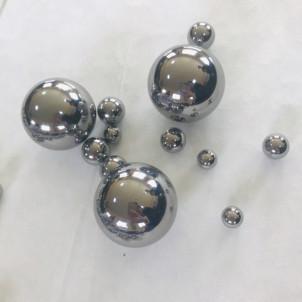

44.36mm Chrome Metal Ball E52100 High Precision Bearing Balls
44.36mm Chrome Metal Ball E52100 High Precision Bearing Balls
Specifications
Brand Name :
OEM,ODM
Model Number :
44.36mm (1.7464567 Inch)
Certification :
SGS,ISO9001,IAF,CNAS
Place of Origin :
china
Payment Terms :
L/C, T/T
Delivery Time :
30-45days
Packaging Details :
Plastic bag+ cardon box+ wooden pallet
MOQ :
1800pcs
Price :
FOB tianjin port, qingdao port
material :
high chrome,high carbon,alloy,GCr15,52100,SUJ2,100Cr6
grade :
G40
hardness :
HRc61-67
free samples :
available
surface :
lapping, polished,no visible flaws
feature :
high hardness, no breakage,toughness,alloy carbon steel
application :
most aerospace,Transportation and industrial applications
service :
OEM, Customized service
Description

44.36mm (1.7464567") High Precision Chrome Steel Balls,Metal Ball, E52100

Introduction

Chrome steel is a chrome Alloy carbon steel, not a chrome plated steel. Product advantages: These balls are highly polished, with high precision and excellent surface finish. These balls were not magnetized, they couldn't be attracted by each other.

Chrome steel balls offer the precise geometry and fine surface finish that makes them especially useful for Wheel Hub Bearings, Linear Bearings,Wind Turbine Bearing, Slewing Ring Bearing and many other applications.

Although these chromium steel balls have good rust resistance, but it is recommended to use a dry cloth to wipe clean after use and apply a layer of oil, so that they have better rust resistance, to extend their service life and provides higher quality and durability, reducing replacement and maintenance cost.

We follow the strict production process, and strict production quality control, to provide Top Quality, Top Service for the purpose of customer satisfaction. Such as inspection of raw materials → Cold heading process → Flashing process → heat treatment → hard grinding → lapping → eddy current tested by AVIKO → Cleaning → appearance inspection → Cleaning and Oil → Re-inspection → packaging.

We are professional manufacture of AISI 52100 Chrome steel balls.The balls we can produced are ranging from 6.35mm to 150mm.Based on more than two decades of continuous efforts and development,our company has become one of the leading domestic facility which can supply high precision steel balls with complete specifications.

The best precision,make your bearing roll smoother.

Details

Ball Diameter Grade Hardness Material
44.36mm (1.7464567") G40 HRc 61-67 Gcr15(52100,SUJ2,100Cr6)

Grade and Tolerances-Metric (Millimeter)

Grade Deviation from Spherical Form Lot Diameter Variation Allowable Ball Gage Variation Norminal Ball Diameter Tolerance Marking Increments Maximum Surface Roughness in Microinches "Ra"
3 0.00008 ±0.00008 ±0.0008 　 0.00025 0.012
5 0.00013 ±0.00013 ±0.0013 　 0.00025 0.020
10 0.00025 ±0.00025 ±0.0013 　 0.00025 0.025
25 0.00060 ±0.00060 ±0.0025 　 0.00025 0.051
50 0.00120 ±0.00120 　 ±0.0051 0.00127 0.076
100 0.00250 ±0.00250 　 ±0.0381 　 0.127
200 0.00500 ±0.00500 　 ±0.0250 　 0.203
1000 0.02500 ±0.02500 　 ±0.1270 　 　
