Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
Specifications
Brand Name :
LONGKUO METAL WIRE MESH
Place of Origin :
CHINA
MOQ :
1rolls
Price :
$6 ~ 99/roll
Payment Terms :
T/T, Western Union
Supply Ability :
100,000m2/year
Delivery Time :
About 7 work days depends on the supply
Packaging Details :
Plastic bag, Moistureproof paper and Wooden pallet
Product name :
Dutch Wire Mesh
Standard :
AISI
Width :
Usually 1m, 1.2m or others
Application :
Manufacturing
Sample :
According to size
Color :
Primary color
Material :
Stainless Steel Wire
Feature :
Anti-corrosion,Heat Resisting,Flexibility
Weave style :
Dutch Weave

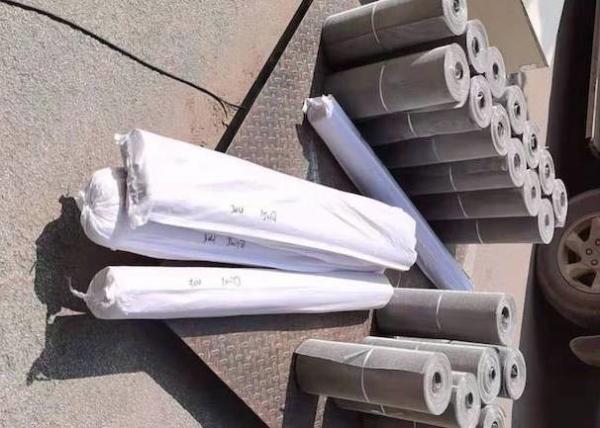

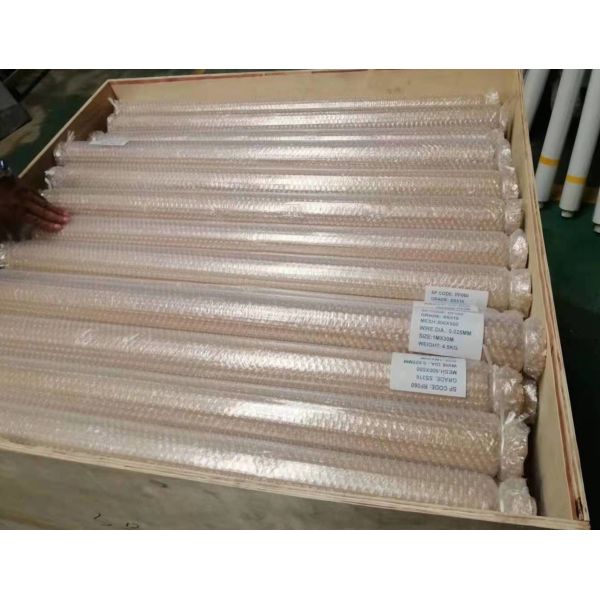

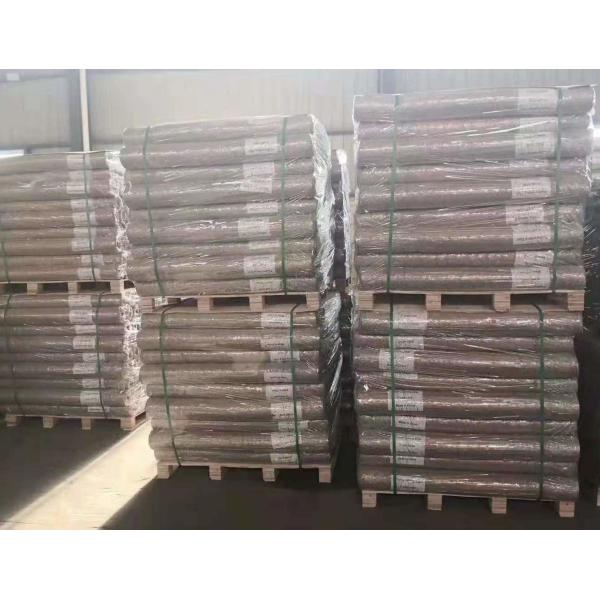

Packing :
Kraft paper, plastic waterproof cloth, hard paper tube, woven bag, wooden case
Hole shape :
Square Hole
Surface treatment :
Polishing, plastic spraying, galvanizing and no treatment
Description

Filtration Material SS 316 Lenght 30m or as required Dutch Wire Mesh

Dutch Wire Mesh Company Introduction

Our factory is a chemical factory integrating production, sales, wholesale and retail. All products are provided with one-stop service. From wire drawing, mesh weaving, deep processing and inspection, we operate independently. All materials, sizes and specifications can be customized according to customer requirements. It is one of the largest manufacturers of stainless steel wire mesh in China. We have a large stock of many popular standard items.

Dutch Wire Mesh Selling points

1. Good acid, alkali and corrosion resistance;

2. High strength, strong tensile force, toughness and wear resistance, durable;

3. High temperature oxidation resistance, normal temperature processing, that is, easy plastic processing, so that the possibility of using stainless steel screen is diversified; high finish, no surface treatment, easy maintenance.

Dutch Wire Mesh Service

Our company has a large number of regular specifications of stock, according to customer requirements for production and processing and customization.

Dutch Wire Mesh Technical Parameters:

Square mesh, Plain weave or Twill weave
Aperture(mm) Wire diameter(mm) Mesh per inch(1inch=25.4mm) Open area(%) weight
W D MESH FO KG/M2
10.00 2.00 2.0 68 4.23
10.00 1.60 2.2 75 2.80
8.00 1.60 2.5 69 3.39
7.00 1.40 3.0 69 2.90
6.30 1.00 3.5 74 1.74
5.00 1.00 4.25 68 2.12
4.00 1.00 5.0 62 2.54
3.00 1.20 6.0 50 4.40
2.50 1.00 7.25 51 3.65
2.00 1.00 8.5 41 4.10
2.00 0.50 10.0 64 1.25
1.64 0.90 10.0 42 4.00
1.60 0.50 12.0 58 1.51
1.06 1.00 10.0 38 4.88
1.25 0.40 16.0 57 1.23
1.25 0.80 12.0 37 3.92
1.00 0.30 20.0 57 0.99
1.00 0.40 18.0 51 1.45
1.00 0.50 17.0 44 2.12
0.87 0.40 20 48 1.56
0.80 0.50 20 38 2.44
0.70 0.36 24 44 1.54
0.63 0.40 25 37 1.97
0.50 0.30 30 37 1.59
0.40 0.25 40 38 1.22
0.315 0.20 50 37 0.99
0.25 0.16 60 37 0.79
0.20 0.125 80 38 0.61
0.16 0.10 100 38 0.49
0.125 0.080 120 37 0.40
0.10 0.063 150 38 0.31
0.075 0.053 200 36 0.26
0.063 0.04 250 37 0.20
0.042 0.036 325 29 0.22
0.036 0.028 400 32 0.16
0.025 0.025 500 25 0.16

Dutch Wire Mesh Surface treatment:

Electropolishing, ring resin, electrostatic spraying, metal plating, ultrasonic, etc.

Filtration SS 316 30m Dutch Wire Mesh Woven Stainless SteelFiltration SS 316 30m Dutch Wire Mesh Woven Stainless Steel

Filtration SS 316 30m Dutch Wire Mesh Woven Stainless Steel
