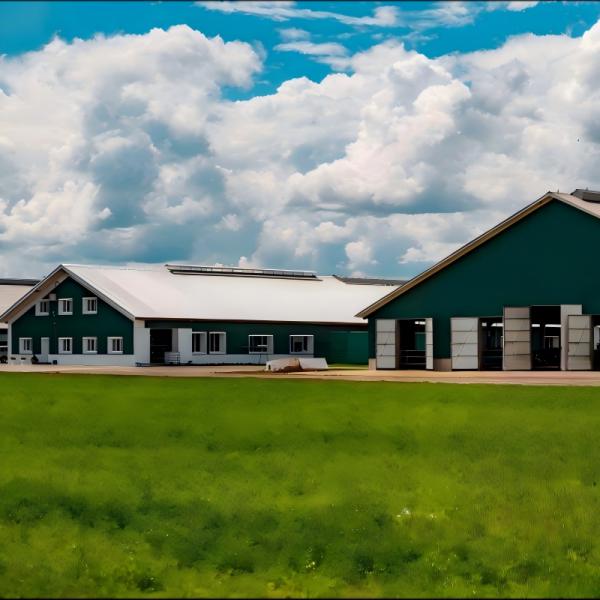

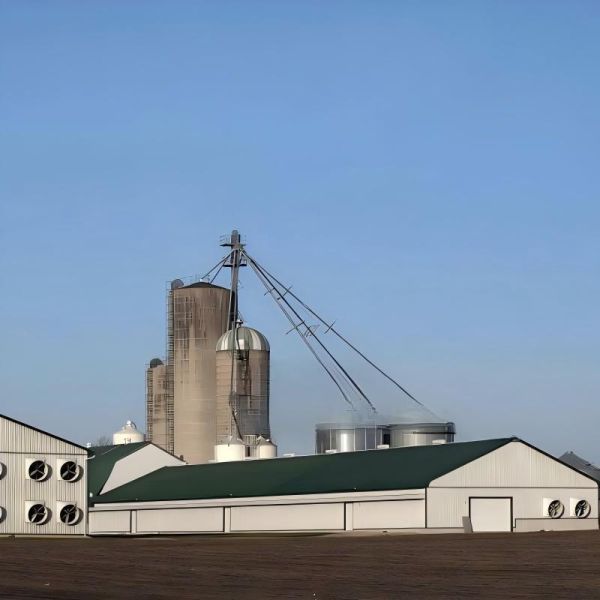

Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Specifications
Model Number :
RULYZ0001
Application :
Poultry house, Broiler farm, layer farm
Brand Name :
Ruly Steel
Type :
Steel Structure Poultry House
MOQ :
200 Square Meter
Delivery Time :
30days
Surface Treatment :
Painting Or Hot-dip Galvanize
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000 Square Meter Per Month
Price :
USD29-USD99 Per Square Meter
Service Life :
50 Years
Certification :
CE,AISC,SGS, BV, ISO,GB
Working Scope :
Design,Fabrication, Installation
Place of Origin :
China
Raw Steel Material :
Q235B, Q355B or equivalent
Packaging Details :
As request
Description
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Maximize productivity and ensure optimal bird health with our high-performance poultry house, engineered for modern commercial farms. Designed for broilers, layers, and breeder flocks, this prefabricated poultry house delivers a controlled, durable, and cost-effective environment that supports higher growth rates, better feed conversion, and improved egg production.
  • Galvanized steel frame structure offers superior strength, corrosion resistance, and long-term durability in high-humidity and high-ammonia environments
  • Insulated sandwich panels (EPS, PU, PIR or Rockwool core) provide excellent thermal insulation for stable temperatures year-round
  • Mechanical ventilation system (customizable) includes axial fans, cooling pads, and automated side curtains or inlet baffles
  • Open-span design with no interior columns maximizes usable space for equipment
  • Factory-precut components enable fast on-site assembly with bolted connections (40-60% faster than traditional construction)
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House

Design Services

We know that every project is unique. To provide the best solutions for your projects, we partner with you in assessing the key elements of feasibility and pricing. We offer the following services, individually or combined, to give you a distinct advantage.

  • Project Reviews – Overview assessments of known project criteria, drawings and specifications to discover critical considerations
  • Structure Assessments – A study of structural framing options to determine the best project fit and identify key value engineering propositions
  • Preliminary Budgeting – Initial costing of structural materials for planning purposes
  • Estimates & Pricing Options – Complete quotations providing alternates and options
  • Proposals & Presentations – Customized electronic format tools and graphics to help you present your projects and concepts
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
Main Parts of the Steel Structures and Technical Parameters
Main Structure
Component Specification
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting. Or hot-dip galvanized
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Component Specification
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR)
Poultry equipment Cooling pad, exhaust fan, etc.
Packing and Transport
Size 120m by 20m Insulated Design Prefabricated Steel Structure Chicken House
All structures come with full engineering drawings, load calculations, and material certifications for international compliance.
This poultry house is a smart, long-term investment in sustainable and efficient poultry farming, combining durability, climate control, and rapid deployment to support your farm's success today and into the future.

How much do a prefab steel structure chicken house cost?

When considering the cost of a prefab steel chicken house, we must have an in-depth understanding of the location, size, and use of the structure. For example, a simple warehouse in lower speed area will cost much less than high wind speed area. The environmental impacts alone will require that the high wind zone steel building be overdesigned, to withstand the strong hurricane force winds.
The size and use of the facility will have an equal impact on the design of the structure. It’s important to understand the size of the building your business requires, whether or not it’s required to be expandable in the future, applicable loads associated with items sitting on the roof deck, hanging from the structure, attaching to the structure, or the consideration of multiple floors. In multistory houses, each floor will require a careful assessment of the equipment point loads.
