Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Expandable Steel Structure Cattle Shed for Livestock Farming
Specifications
Model Number :
Rulyz011
Purlin :
Q235B, Q355B C-shaped/Z-shaped Galvanized Steel
MOQ :
200 Sqm
Delivery Time :
15-20 workdays
Cladding :
Coated steel sheet, sandwich panel
Color :
Customizable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Material :
Welded/Hot-rolled Steel,sandwich panel,galvanized steel sheet,light steel frame,Material
Drawing design :
AutoCAD / PKPM / 3D3S/ Tekla
Price :
35-50 USD/Sqm
Application :
Steel Workshop,Steel Fabricated House,steel structure warehouse,Storage,Warehouse
Dimensions :
Customers' requirement
Window :
Aluminum-alloy Window, glass curtain
Supply Ability :
1,500 Ton/month
Product name :
Steel Structure Warehous,Industrial Factory Building Multi-storey Steel Structure Warehouse,Cheap price economical prefabricated steel structure warehouse,Low Cost Quick Build Prefabricated Steel Structure Warehouse for Sale,Light Metal Steel Structures Ro
Standard :
AISC, ASTM, CE, AS/NZS, GB
Brand Name :
Ruly Steel
Surface treatment :
Alkyd painting system, epoxy painting system or hot-dip galvanized.
Certification :
AISC, ASTM, CE, AS/NZS, GB
Door :
Sliding door, roller door, section door, sandwich panel door
Place of Origin :
Qingdao, China
Grade :
Q235B, Q355B and equivalent
Packaging Details :
Simple package 20GP/40HQ/40OT container
Installation :
Installation drawing, engineer guidance on-site or team of workers
Description

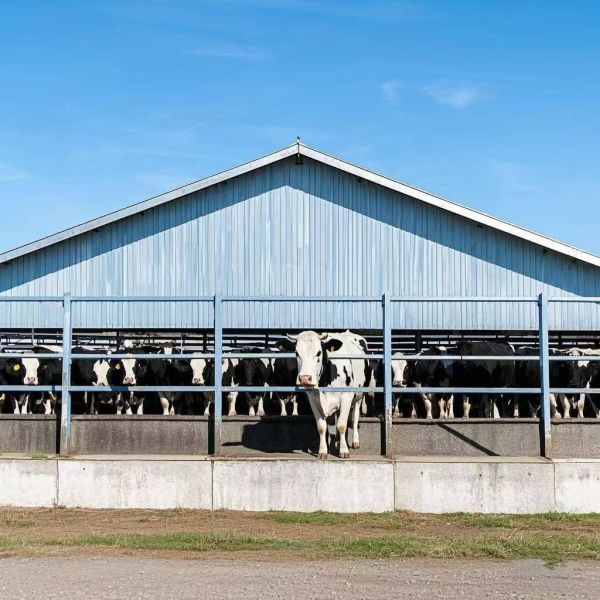

Steel Structure Cattle Shed for Livestock Farming

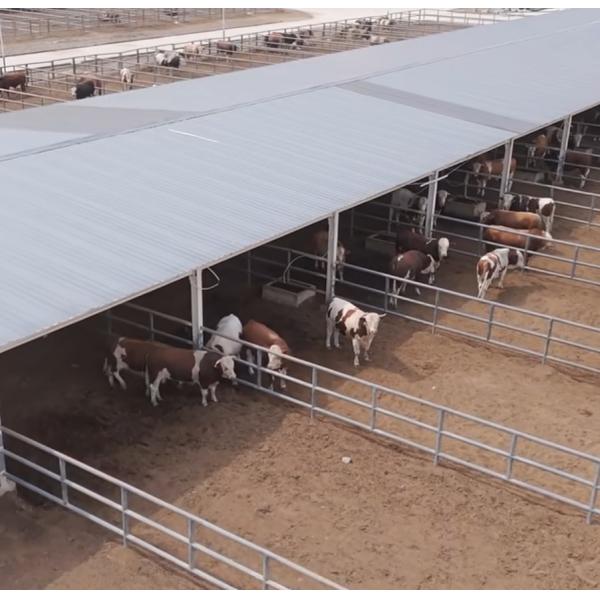

The Steel Structure Cattle Shed for Livestock Farming is a practical and durable building solution designed for modern livestock farming. Engineered with high-strength structural steel and precision-manufactured components, it provides a safe, spacious, and efficient environment for beef cattle, dairy cows, breeding herds, and other livestock operations.

Expandable Steel Structure Cattle Shed for Livestock Farming

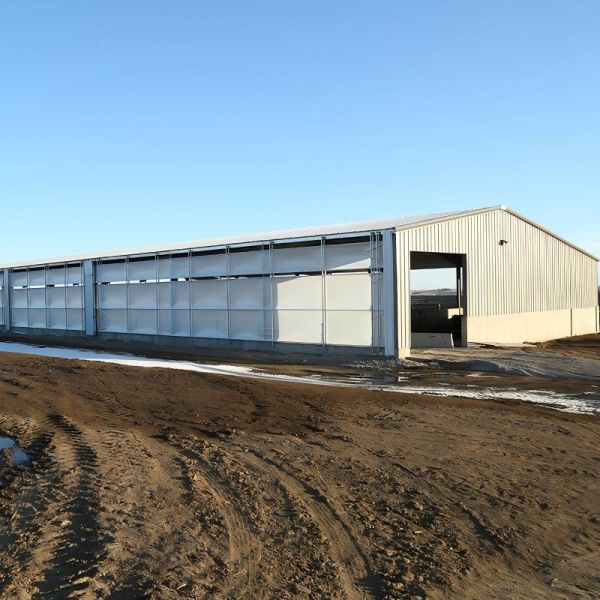

Compared with traditional concrete or masonry buildings, prefabricated steel cattle sheds offer faster construction, lower foundation costs, and greater flexibility in building layout. Factory-fabricated components ensure high dimensional accuracy, allowing rapid on-site installation while reducing labor requirements and construction time.

Expandable Steel Structure Cattle Shed for Livestock FarmingExpandable Steel Structure Cattle Shed for Livestock Farming

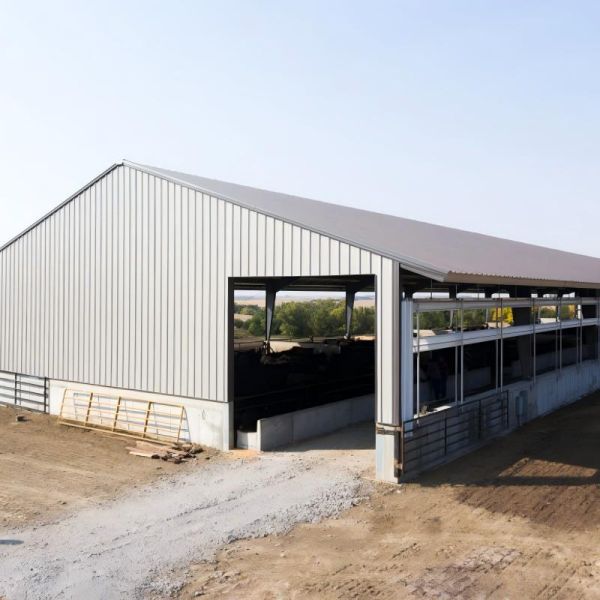

The clear-span steel frame creates an open interior with minimal columns, maximizing usable floor space and improving the movement of livestock, machinery, and farm vehicles. Building dimensions, bay spacing, eave height, roof slope, and access openings can all be customized to accommodate different herd sizes, management systems, and site conditions.

Expandable Steel Structure Cattle Shed for Livestock Farming

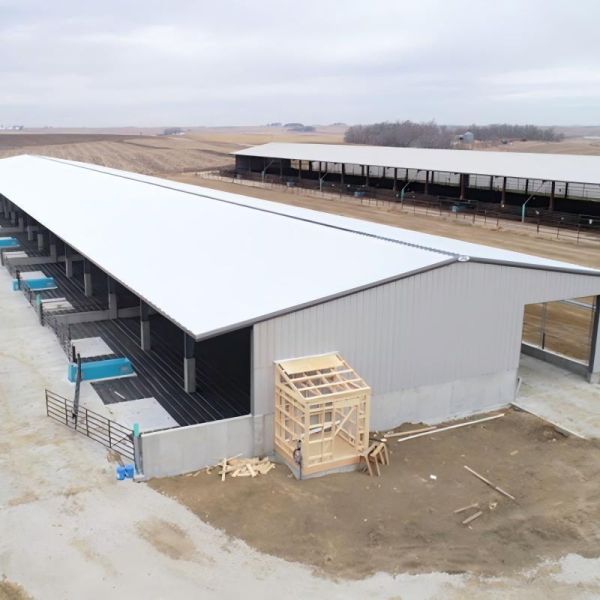

Each cattle shed is structurally designed according to local wind loads, snow loads, and seismic requirements, ensuring reliable performance under various environmental conditions. The roof and wall systems can be configured with single steel sheets or insulated sandwich panels depending on the regional climate and thermal performance requirements. Optional ridge ventilators, side openings, skylights, and translucent panels help improve natural ventilation and daylighting, creating a healthier indoor environment.


Expandable Steel Structure Cattle Shed for Livestock Farming Expandable Steel Structure Cattle Shed for Livestock Farming

To ensure long-term durability, the steel structure is available with alkyd paint, epoxy coating, or hot-dip galvanizing. These protective treatments effectively resist corrosion caused by humidity, rainfall, and agricultural environments, extending the service life of the building while reducing maintenance costs.

Expandable Steel Structure Cattle Shed for Livestock FarmingExpandable Steel Structure Cattle Shed for Livestock Farming

​

Name Steel Structure Cattle Shed for Livestock Farming
Structure Type portal frame structure, truss frame, flat frame structure
Length 20m~200m
Width 20m~50m
Eave Height 4m~30m
Roof Slope Recommend 5~15% according to site
Steel beam & Column H-section steel, truss steel, steel tube, latticed steel, cross-section steel
Roof & Wall cladding

Galvanized steel cladding sheet, sandwich panel (view different panel cores below)
Door Sliding door, folding door, roller shutter door, etc.
Window Aluminum alloy frame window, louvers, etc.
Anti-corrosion for steel structure Alkyd painting, Epoxy painting or Hot-dip galvanized

​
Our Service

Expandable Steel Structure Cattle Shed for Livestock Farming

Service Description
Steel Structure Fabrication Cutting, welding, painting, hot-dip galvanizing, and pre-assembly of structural steel components.
Design & Engineering Design, engineering, fabrication, and installation support for prefabricated steel buildings.

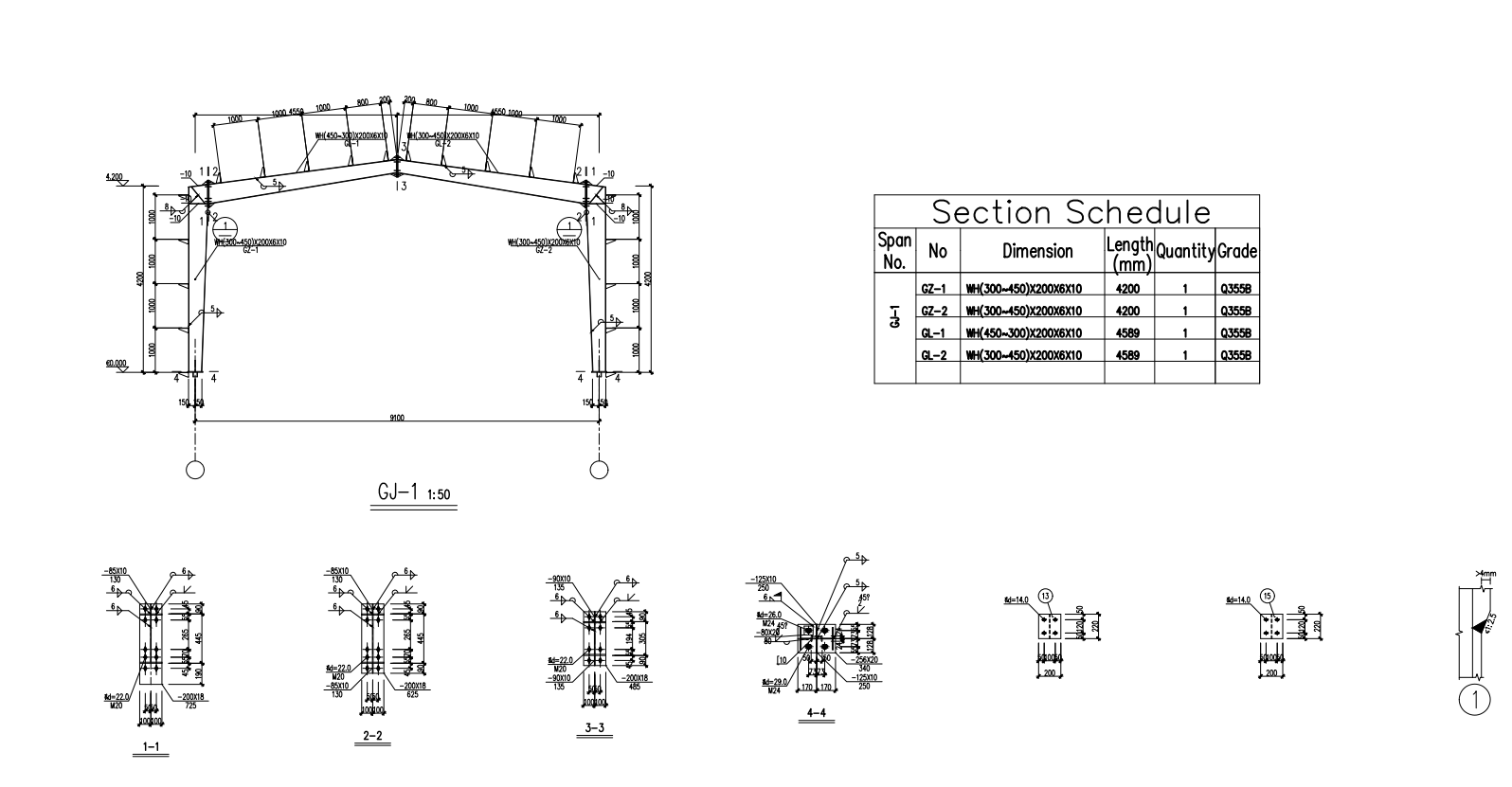

Shop Drawing Services Detailed fabrication drawings and shop drawings based on client-provided architectural and structural plans.
Engineering Consulting Structural optimization, technical consultation, and project support from design to construction.

Expandable Steel Structure Cattle Shed for Livestock Farming
Comparison of Roofing and Wall Systems

Item Steel Sheet EPS Panel Rock Wool Panel PU/PIR Panel Glass Fiber + PVC/Aluminum Foil
Initial Cost Lowest Low-Medium Medium High Low
Thermal Performance Poor Good Good Excellent Good
Fire Resistance Poor Moderate Excellent Good Moderate
Sound Absorption Poor Moderate Good Good Moderate
Recommended Application Warehouses, sheds, equipment shelters in mild climates Industrial buildings requiring economical insulation Factories, warehouses, workshops with high fire protection requirements Cold storage, food processing plants, energy-efficient industrial buildings Large-span steel buildings requiring economical thermal insulation

Quality Inspection

Inspection Item Purpose Details
Material Inspection Verify raw material quality ·Thickness tolerance <0.25mm
·Yield and tension strength testing in-house
·Third party inspection certificate
·Traceable mill certificate
Welding Inspection Ensure weld integrity ·100% testing dimension tolerance <1mm
·20% sample welding line ultrasonic testing, no fault, full penetration
·20% magnetic particle testing, no bubble, no defect
·Third-party inspection available
Coating Inspection Check paint thickness ·Surface Preparation Grade Sa 2.5, no visible rust, no mill scale and contaminants, welding spatters removed
·Primer to be applied within 4-6 hours after blasting and before any visible flash rusting occurs. Dry film thickness (DFT) : 75 ± 15 μm

Expandable Steel Structure Cattle Shed for Livestock Farming

Magnetic Particle Testing

Packaging&Shipping
Expandable Steel Structure Cattle Shed for Livestock FarmingExpandable Steel Structure Cattle Shed for Livestock Farming

All steel components are bundled and secured on steel pallets for safe handling and transportation.


The pallets are loaded into containers using gantry cranes and forklifts, ensuring efficient and damage-free loading.


Certifications




Expandable Steel Structure Cattle Shed for Livestock Farming
