3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
3.0mm Q235B Steel Structure Warehouse Sliding Rolling Door
Specifications
Brand Name :
Ruly Steel
Model Number :
Ruly0241
Certification :
SGS, BV, ISO
Place of Origin :
China
MOQ :
300 Square Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 Square Meter Per Month
Delivery Time :
15 ~ 20 Days
Packaging Details :
As request
Application :
Light Steel Structure Warehouse
Features :
Galvanized Metal Buildings
Type :
Steel Structure Warehouse
Working scope :
Design,Fabrication, Installation
Raw steel material :
Q235B, Q355B, ASTM A36
Service life :
50 Years
Wall and Roof :
Steel cladding sheet
Surface treatment :
Painting
Description
Space frame structure durable prefabricated steel structure warehouse

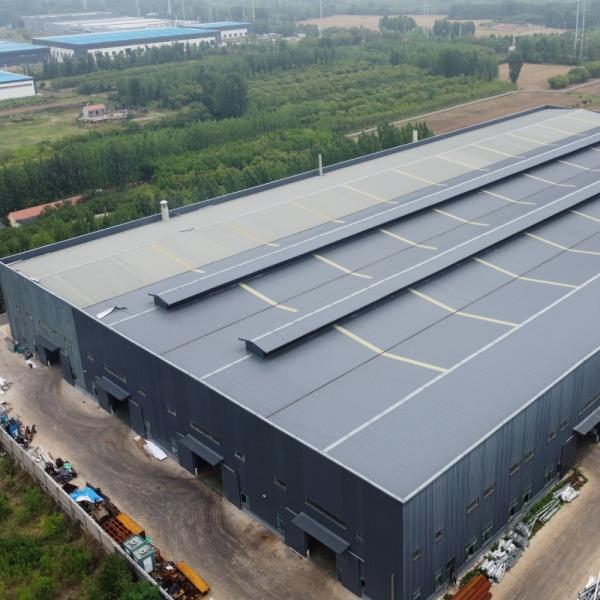

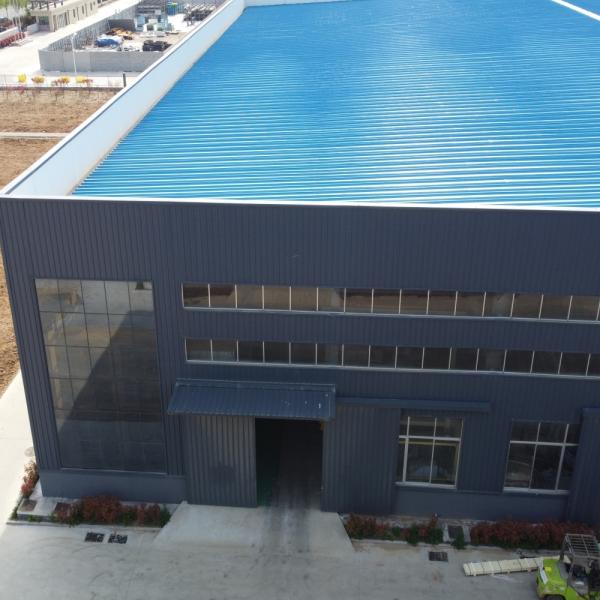

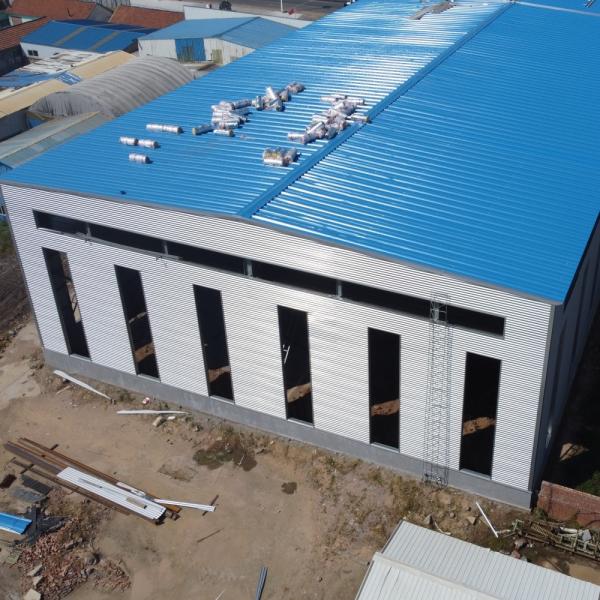

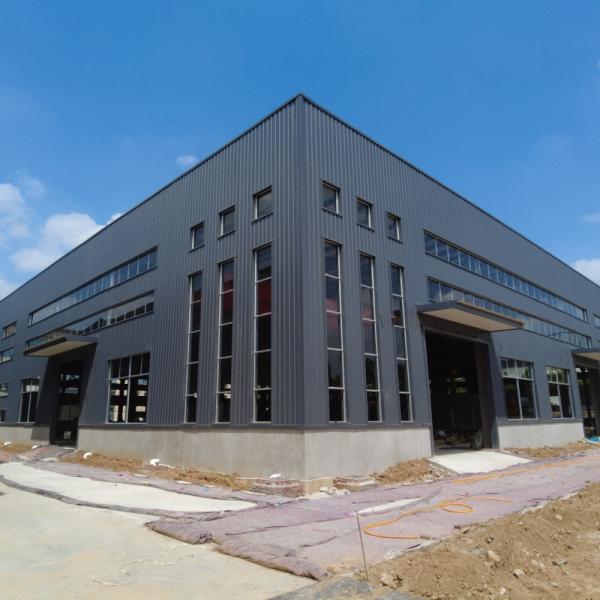

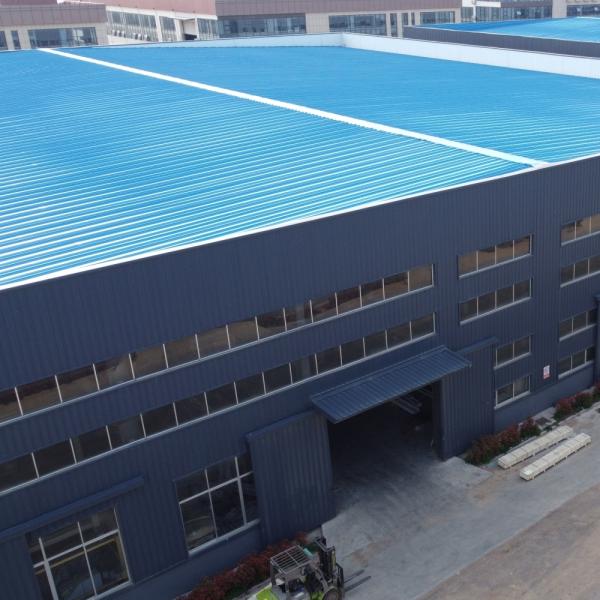

Steel structure warehouse

Steel structure warehouses are usually completed by a series of steel structures, including steel columns, steel beams, purlins, etc. These main components constitute the load-bearing structure of the warehouse. Because of its light weight and easy construction, there is a great demand for structural steel warehouses. Steel structure is also the most cost-effective building type in many projects. Therefore, starting from long-term economic considerations, it is time to invest in steel warehouses.

SPECIFICATION OF STEEL STRUCTURE MATERIAL:

Item name Specification Material Parameter Technical Treatment
Column H shape,Box,steel pipe,Hot rolled sheet Q235B,Q345B Paint or Hot dip galvanized
Beam H shape,steel Truss,Hot rolled sheet Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod,Steel pipe,Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass,Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe,Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B

Steel structure warehouse design


Steel structure is generally considered to be the most economical and fastest way to build your warehouse, and is the first choice for many industrial and civil buildings. We provide the design of steel structure warehouse, according to your specific application and specifications, processing section steel into various shapes and sizes.

The steel warehouse is a frame building whose frame structure is mainly composed of steel beams and columns. The steel structure can be made by hot rolling or cold rolling. For roof and wall panels, we provide steel plate, fiberglass, PU sandwich panel options, etc. The curved metal roof structure is also ideal for your project. The doors and windows of the steel frame structure warehouse can be made of PVC or aluminum alloy. Regarding the pur supporting system, there are C-type and Z-type for walls and roof wall strips for your choice. In addition, the runway beam of the crane is designed according to the parameters of your bridge crane.

According to your specific requirements for the size of the steel warehouse and local environmental conditions, the steel warehouse can be designed in any shape and size to meet your needs.
