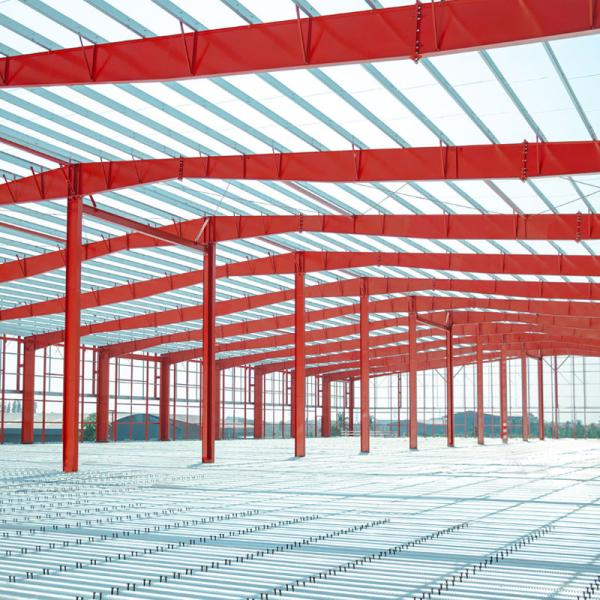

Multi Span Steel Structure Industrial Factory Building 40m x 80m x 10m H Section Frame Construction
Multi Span Steel Structure Industrial Factory Building 40m x 80m x 10m H Section Frame Construction
Specifications
Brand Name :
Lanjing
Model Number :
LJ-MSF-4080
Place of Origin :
Qingdao, Shandong, China
Certification :
ISO 9001:2015, ISO 14001:2015, CE
MOQ :
800 Square Meters
Price :
USD 38-55 / Square Meter
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50000 Tons per Year
Delivery Time :
35-50 Days After Deposit
Packaging Details :
Steel frame components packed on pallets, wrapped with waterproof PE film, loaded into 40ft HQ shipping containers
Structure Type :
Multi Span Portal Frame
Main Steel :
Q235B, Q355B Welded H Section
Span Width :
40m (2 x 20m)
Length :
80m
Eave Height :
10m
Crane Capacity :
5 Ton x 2 Pcs Overhead Crane
Roof Slope :
5% - 10%
Purlin :
C Section Galvanized Steel
Wind Resistance :
≥180km/h
Seismic Grade :
Grade 8
Lifespan :
50 Years
Surface Treatment :
Hot Dip Galvanized or Painted
Description

Multi Span Steel Structure Industrial Factory Building

This multi span steel structure industrial factory is designed for heavy manufacturing and production operations. The H section steel frame building construction supports 5-ton overhead cranes with a 40m total width across dual 20m spans, providing expansive production floor space.

Key Features

  • 40m x 80m x 10m multi span steel frame industrial factory
  • H section steel building construction with 5-ton overhead crane support
  • Dual 20m span configuration with intermediate columns for enhanced stability
  • Welded H section main frame with high strength bolted connections
  • Engineered for 180km/h wind load and seismic grade 8
  • Galvanized C section purlins with insulated sandwich panel options
  • 50-year structural design life with minimal maintenance

Material Specifications

ComponentSpecification
Main Column & BeamWelded H Section Q235B/Q355B
ConnectionGrade 10.9 High Strength Bolts
Crane BeamWelded H Section with Stiffeners
Roof PurlinC Section Galvanized Steel
Wall PurlinZ Section Galvanized Steel
Bracing SystemSteel Rod Cross Bracing + Angle Steel Knee Brace

Applications

Perfect for heavy manufacturing facilities, automotive assembly plants, steel fabrication workshops, and industrial processing facilities requiring overhead crane systems.

Packaging & Delivery

All steel components securely packed on pallets with waterproof PE film wrapping and loaded into 40ft HQ containers. Free detailed installation drawings and on-site engineer guidance available.
